1572-QR (BYP-75)
Hmax = Door Height + 2-3/8"
Hmin = Door Height + 1-7/8"
1

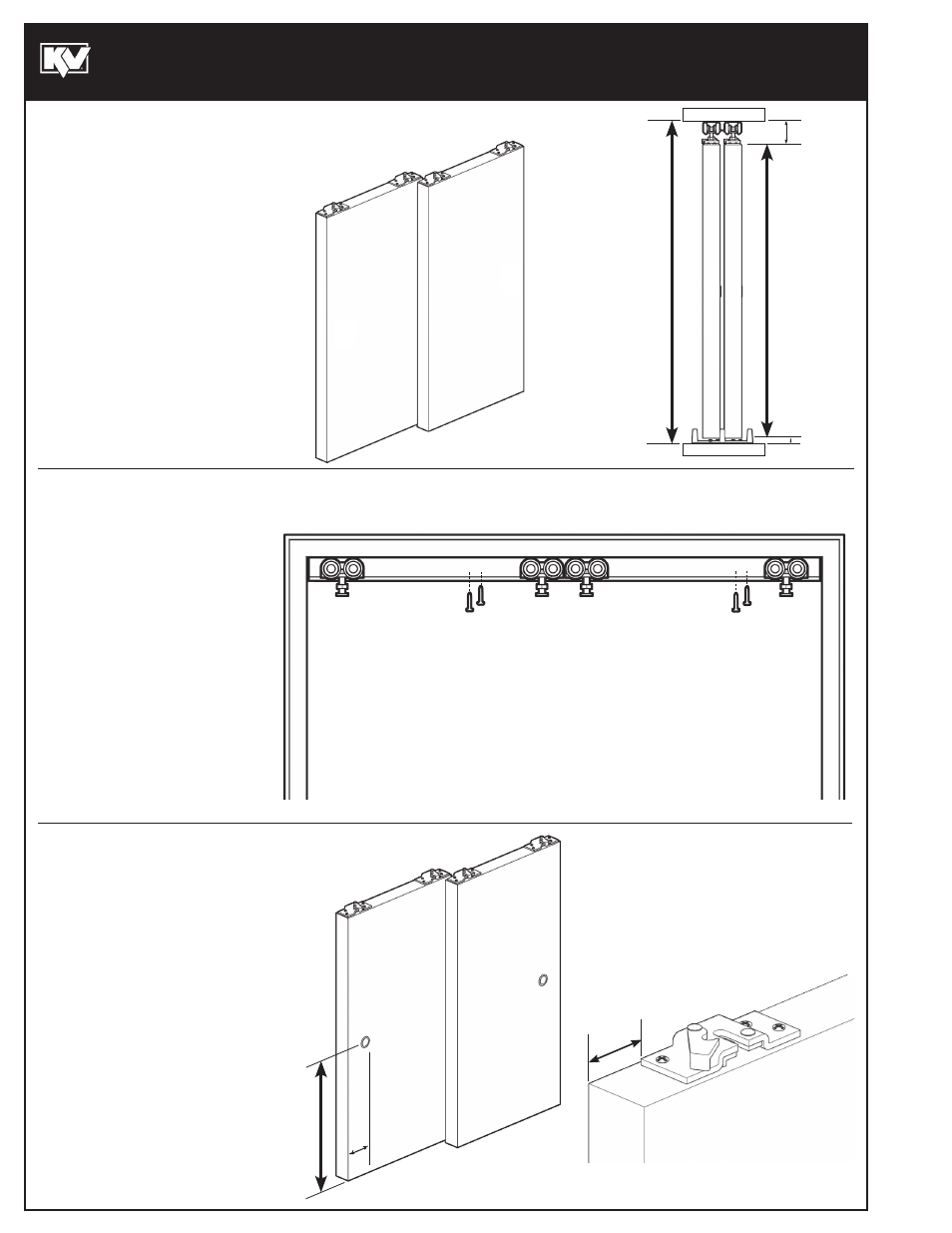

PRePARe OPeNING
SLIDING DOOR HARDWARe - BY PASS
Assembly
Instructions
1572-QR (BYP-75):
1-1/2" - 1-7/8"
(3,8 cm - 4,8 cm)
1606-QR (BYP-100):
1-3/4" - 2"
(4,4 cm - 5,1 cm)
#310302_B (1013)
3/8" - 1/2"
(1 cm - 1,3 cm)
1
2
MOuNt FRAMe HARDWARe
• Center track in opening.
•
IMPORtANt: Place hangers loose
into track before securing.
• Using track as template, mark
screw locations.
• Drill 3/32" pilot holes and
secure with (#8 x 5/8") screws.
(F)
Note: If necessary, track may be
cut with a fine tooth saw.
3
MOuNt DOOR HARDWARe
1606-QR (BYP-100)
Hmax = Door Height + 2-1/2"
Hmin = Door Height + 2-1/8"
• Place quick release top mount plates on
top of each door at the distance shown
from the outside edge.
• Using brackets as a template,
drill 3/32" diameter holes and secure
with (#8 x 1") screws.
(I)
• Drill 7/8" diameter hole
approximately 1/4" deep
on outside edge of each
door as shown to mount pulls.
2" (5,1 cm)
36"
(91,4 cm)
9/16"
(1,4 cm)
Opening Height
Hauteur Ouverture
Altura Abertura
Door Height
Hauteur Porte
Altura Puerta
2-Door Width = 2 x Door Width - 1"
