ISSUED: 12-05-08 SHEET #: 090-9160-4 10-05-09
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
2 of 7

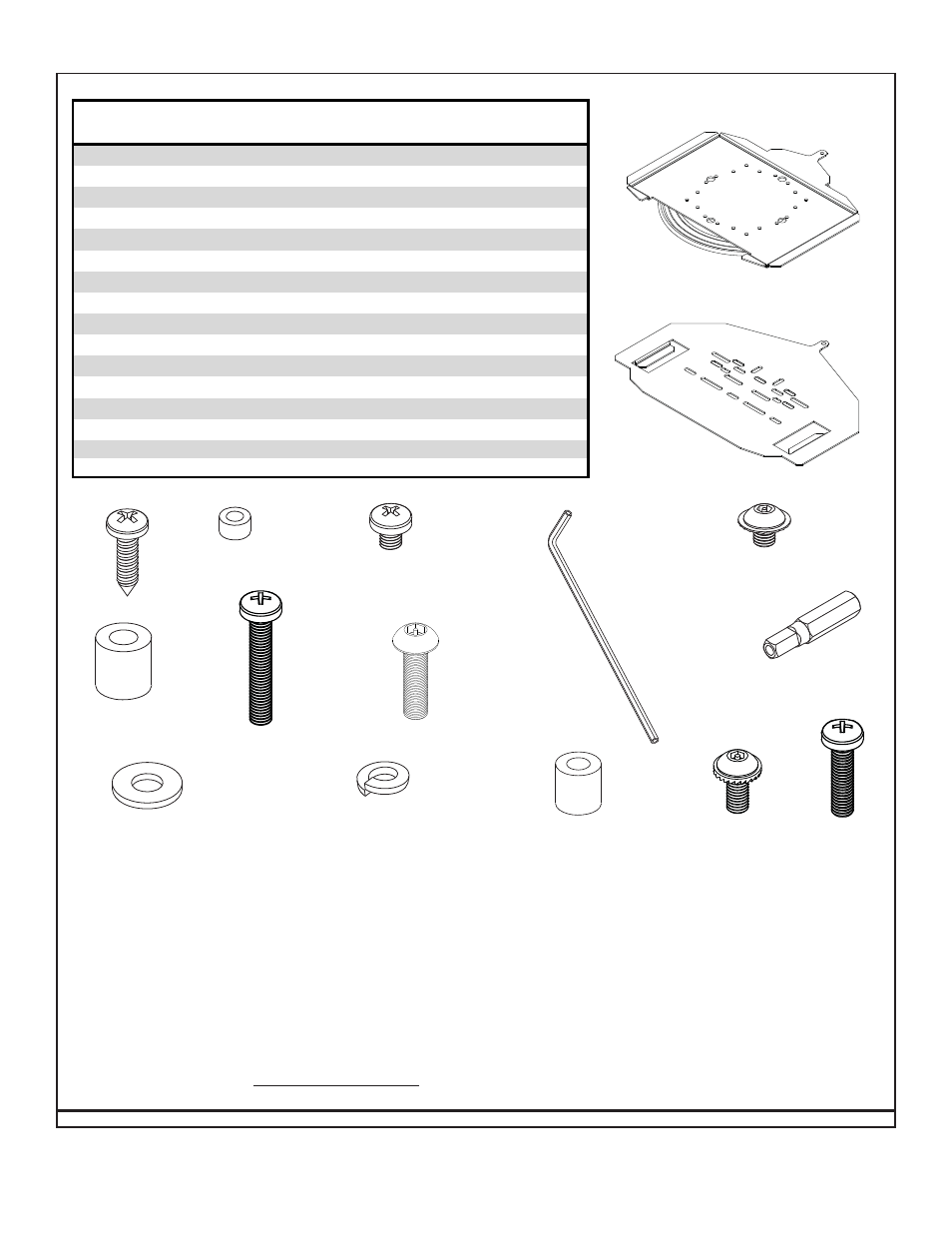

Parts List
Description qty part #
A race box 1 201-1686
B adapter plate 1 201-1685
C #10 x 3/4" phillips wood screw 3 500-9006
D .198" ID x.16" spacer 5 540-9455
E M5 x 6 mm phillips screw 2 520-9504
F 4 mm security allen wrench 1 560-9646
G M5 x 6 mm socket pin serrated washer head screw 1 510-1114
H .257" ID X .5" OD X .5" HT spacer 4 540-1058
I M5 x 30 mm phillips pan screw 6 520-1042
J M5 x 15 mm penta pin screw 4 520-1005
K M5 x 1" penta-pin driver 1 520-9249
L flat washer 4 540-9440
M split washer 4 540-1035
N .240 x .375 x .562H spacer 6 590-1135
O M5 x 12 mm socket pin serrated washer head screw 4 510-1064
P M5 x 20 mm phillips pan screw 4 510-1208
B
A
F
G
H
I
Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
C E D
L M
N
J
K
O
P
Tools Needed for Assembly
• phillips screwdriver
•
3M™ Rubber & Vinyl 80 Spray Adhesive (generic name:
Contact 80 Neoprene Vinyl Spray Adhesive)*
*This product can be found at hardware and craft stores, as
well as on the 3M we
bsite: http://solutions.3m.com/
