Peerless-AV EWMU-S - Installation User Manual

Features, Models: ewmu, ewmu-s

Installation and Assembly:

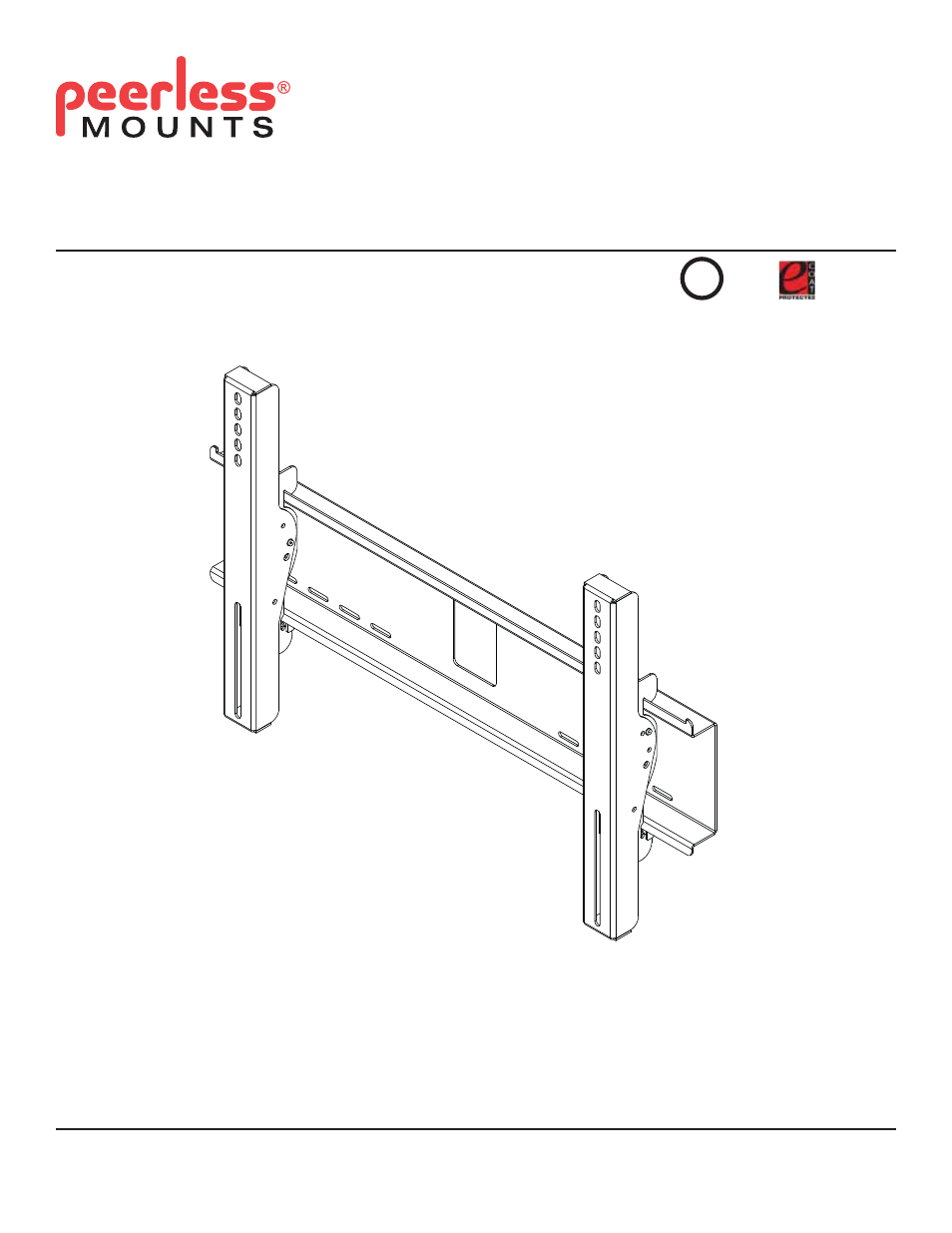

Wind Rated Tilt Wall Mount for 32" - 65" Outdoor Flat
Panel Displays

Features:

• Universal screen mounting brackets hook onto the wall plate for quick, easy, and safe installation

• Adjustable up to 15° of forward tilt and up to -5° backward tilt

• Includes Sorted-For-You™ fastener pack for installation to wood studs, concrete and cinder block

• Optional horizontal adjustment of up to 8" (203 mm) (depending on screen model) for perfect screen placement

Models: EWMU, EWMU-S

Max UL Load Capacity: 200 lb (90.7 kg)

Max Wind Rating: 110 mph, elevation 200 ft (60m), Category "D"

ISSUED: 06-22-10 SHEET #: 061-9052-6 01-15-11
