IN OUT
TILT BACKWARD TILT RIGHT TILT LEFT
TILT FORWARD

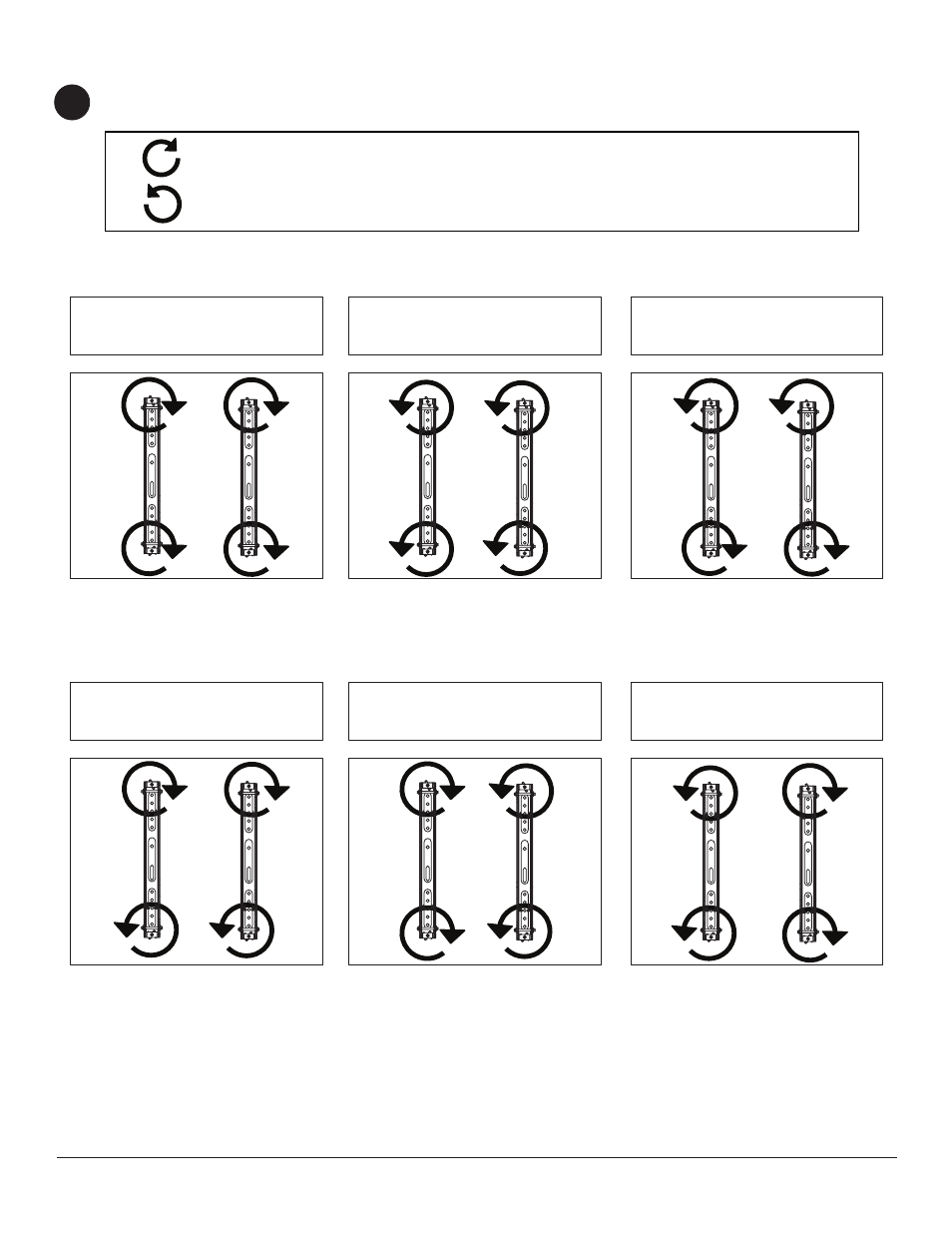

Use legend below to determine position of display.
NOTE: Each knob can be adjusted independently for fine tuning adjustments.
7
Turn knob CLOCKWISE to tighten
Turn knob COUNTER-CLOCKWISE to loosen
Carriage Assembly Adjustment
