Peerless-AV HT642-004 - Installation - Manual (Page 5)

5 of 10 ISSUED: 09-20-11 SHEET #: 125-9245-1

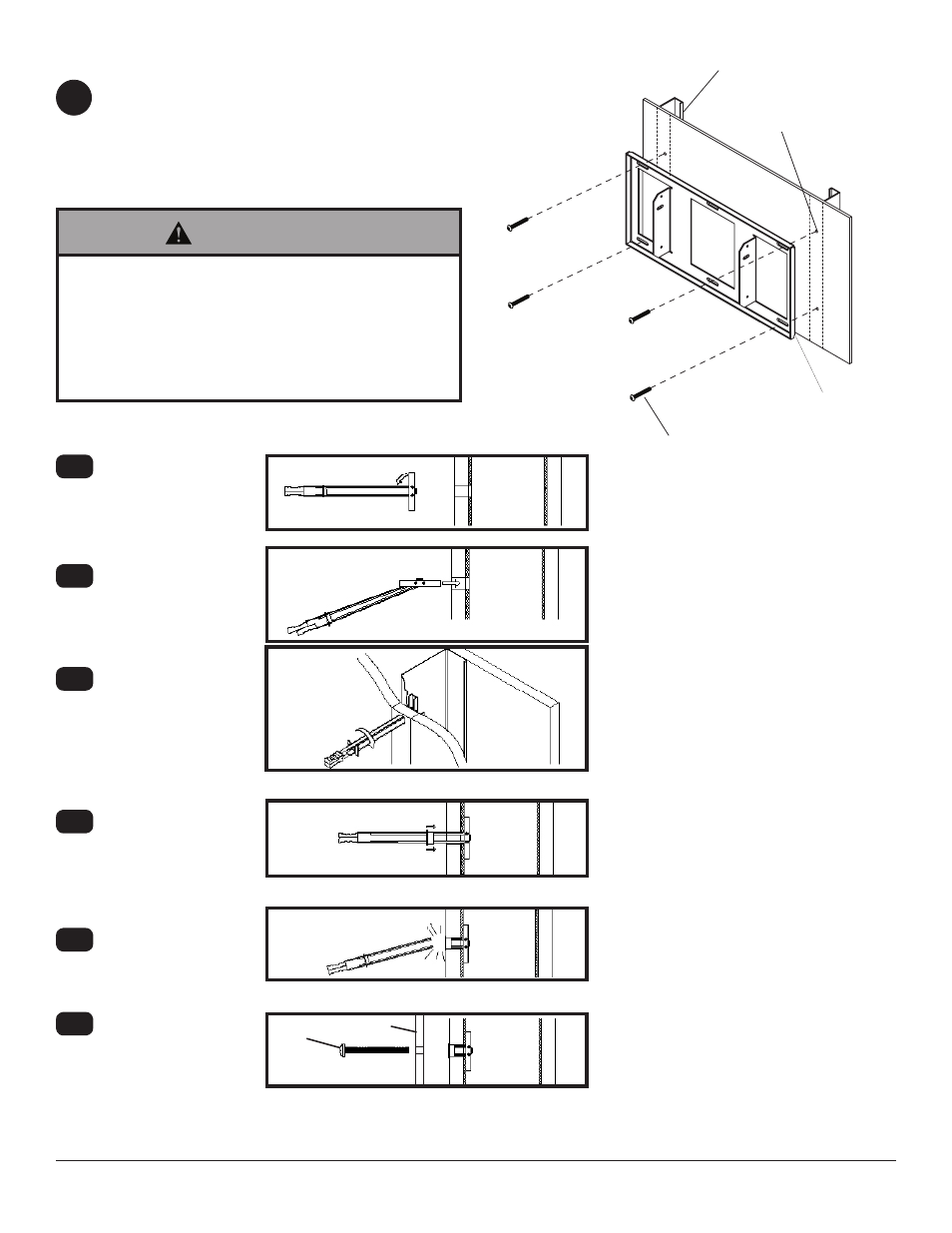

Installation to Metal Stud Walls
Rotate toggler ( F)
clockwise to wedge it
against inside walls
of metal stud.
Push into hole.
Pivot end of
toggler ( F).
Slide plastic cap
forward while pulling
back firmly on ring.
Break off excess.
FOR METAL STUD WALLS ONLY: Drill four 1/2"
(13mm) dia. holes through drywall and studs at lo-
cations corresponding to wall plate. Insert togglers
( F) as shown below...
Skip to Step 2 page 7
F
Align wall plate with
hole in wall and
fasten with 1/4-20 x 2
3/4" screw ( H) using
18" long 4 mm allen
wrench ( G).
wall plate H
• Product must be mounted through drywall that has a
minimum thickness of 1/2" and into metal studs, 26
gauge or heavier.
• Make sure that togglers are anchored into the center
of the studs as shown in figure 1. The use of an
"edge to edge" stud finder is highly recommended.
WARNING
H
C
F
STUD
1-1
1-2
1-3
1-4
1-5
1
1-6
Skip to Step 2
fig. 1
