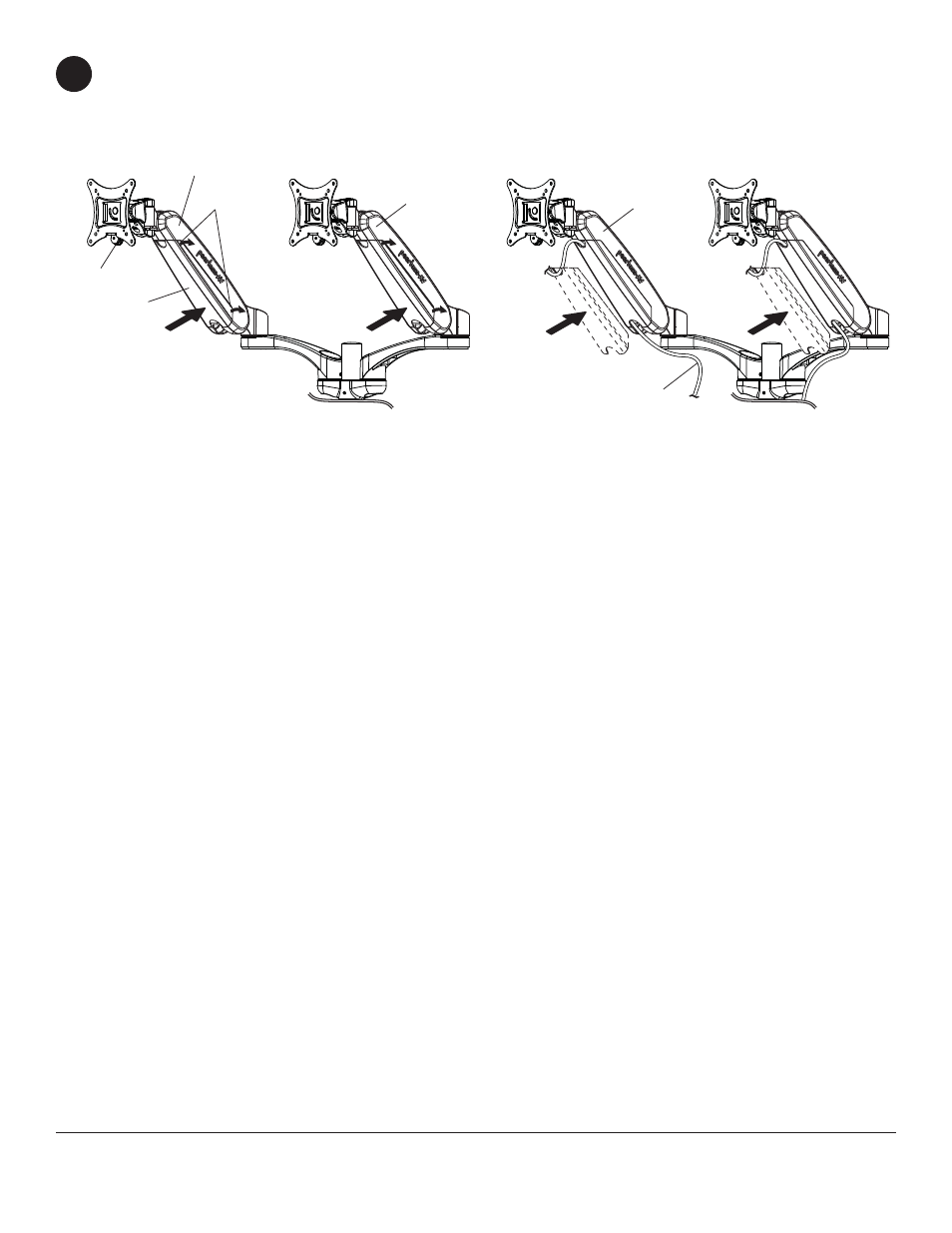

Reinstall knobs through back of arm assemblies (B) and secure into back of adapter plates. Cables may be routed
using cavity in arm assembly (B). Remove the cable cover on arm assembly (B) by pressing fi rmly in the middle
of the cable cover and then pulling the fl anges of the cable cover. Route the cables in arm assembly (B) and then
reinstall the cable cover. 6
KNOB
CABLE
COVER
FLANGES
B
B
B
CABLES
