K,l,m,n, o,p,q,r or s, Id f – Peerless-AV PSMU-PRS-S - Installation User Manual
Page 8

ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11
Visit the Peerless Web Site at www.peerlessmounts.com
For customer care call 1-800-865-2112
8 of 11

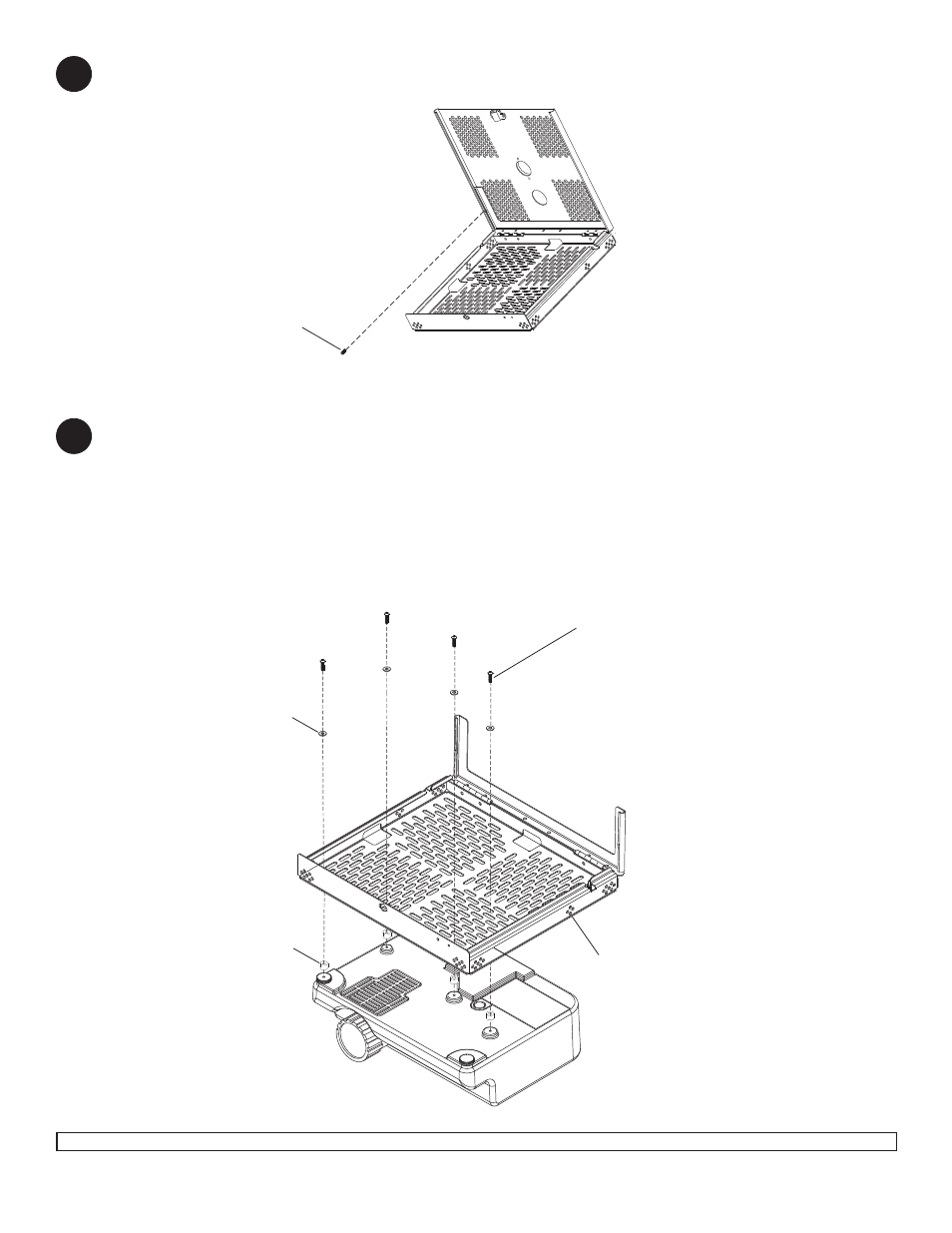

Open the mount and remove thumb screw (D) as shown. NOTE: The upper tray of the mount will now slide off
of the lower tray.
Flip projector upside down. Attach lower tray to the bottom of the projector using appropriate number of screws (K, L,
M, N, O, P, Q, R or S), washers (I) and spacers (F) as shown. Use 4 mm allen wrench (T) to tighten screws.
IMPORTANT: If projector does not have at least three mounting holes, do not use this tray assembly.
NOTE: Some projectors have feet which can be removed and the corresponding threaded insert can be used for a
mounting hole.
NOTE: Projector may differ slightly in appearance.
Installation of Projector
PROJECT
OR
LOWER
TRAY
K,L,M,N,
O,P,Q,R
or S
6
7
I
D
F
