ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112
10 of 11

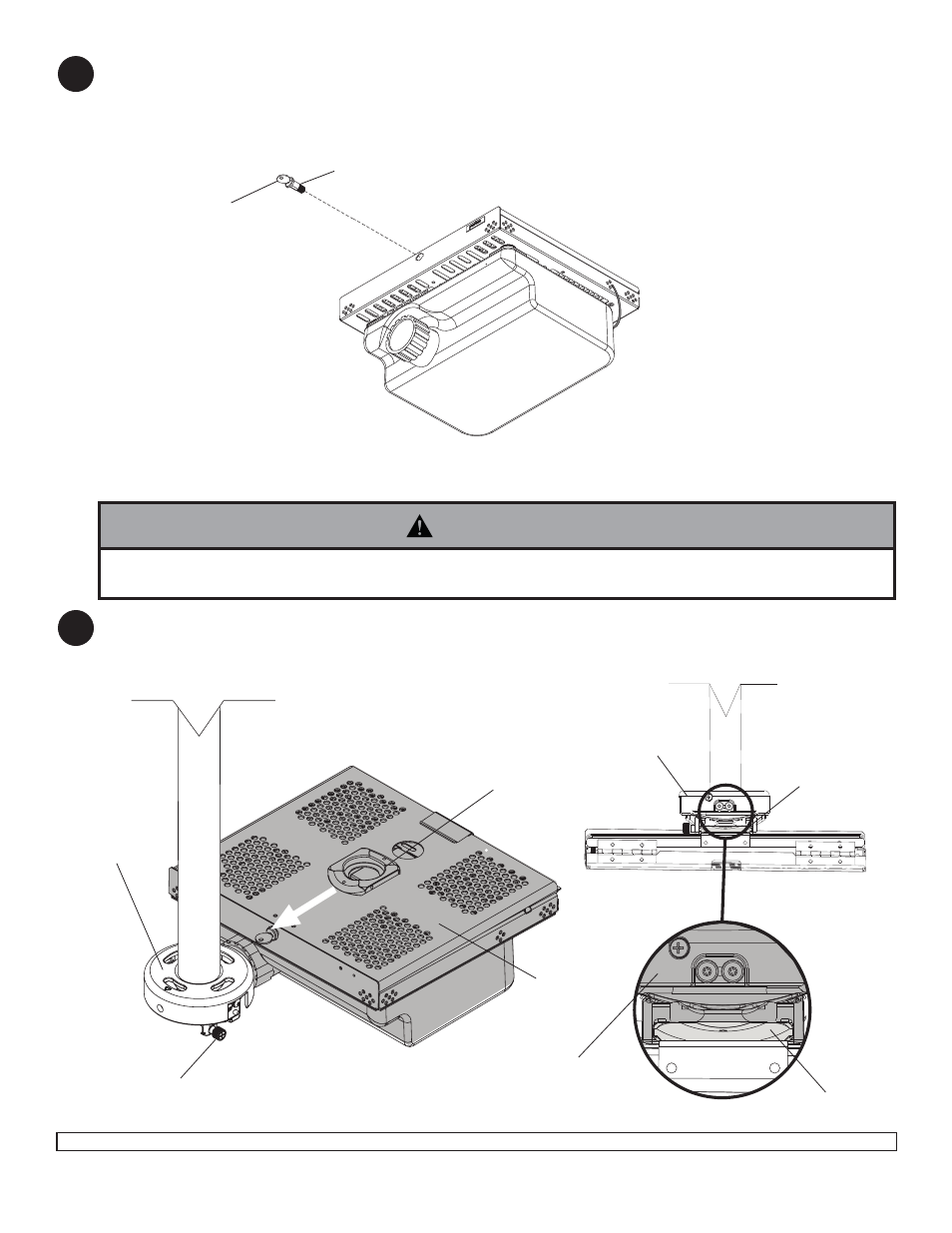

Close the mount and insert the lock plug (C) and key (X) as shown. Turn lock plug clockwise until tightly secure.
NOTE: To remove key (X), key slot must be in the horizontal position. This may require that you back off 1/4 turn.
IMPORTANT: Key (X) is neccesary for projector removal. Store it in a safe place.
C
B
Slide connection block (Z) into projector mount assembly (A). Tighten captive screw to secure projector to projector
mount assembly (A).
CAPTIVE SCREW
BACK VIEW
X
10
11
• Do not lift more weight than you can handle! Use additional man power or mechanical lifting equipment to
safely handle placement of the projector!
WARNING
PROJECT
OR
Z Z
Z
A
A
A
