ISSUED 08-09-06 SHEET #: 055-9470-4 06-27-11
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112
4 of 11

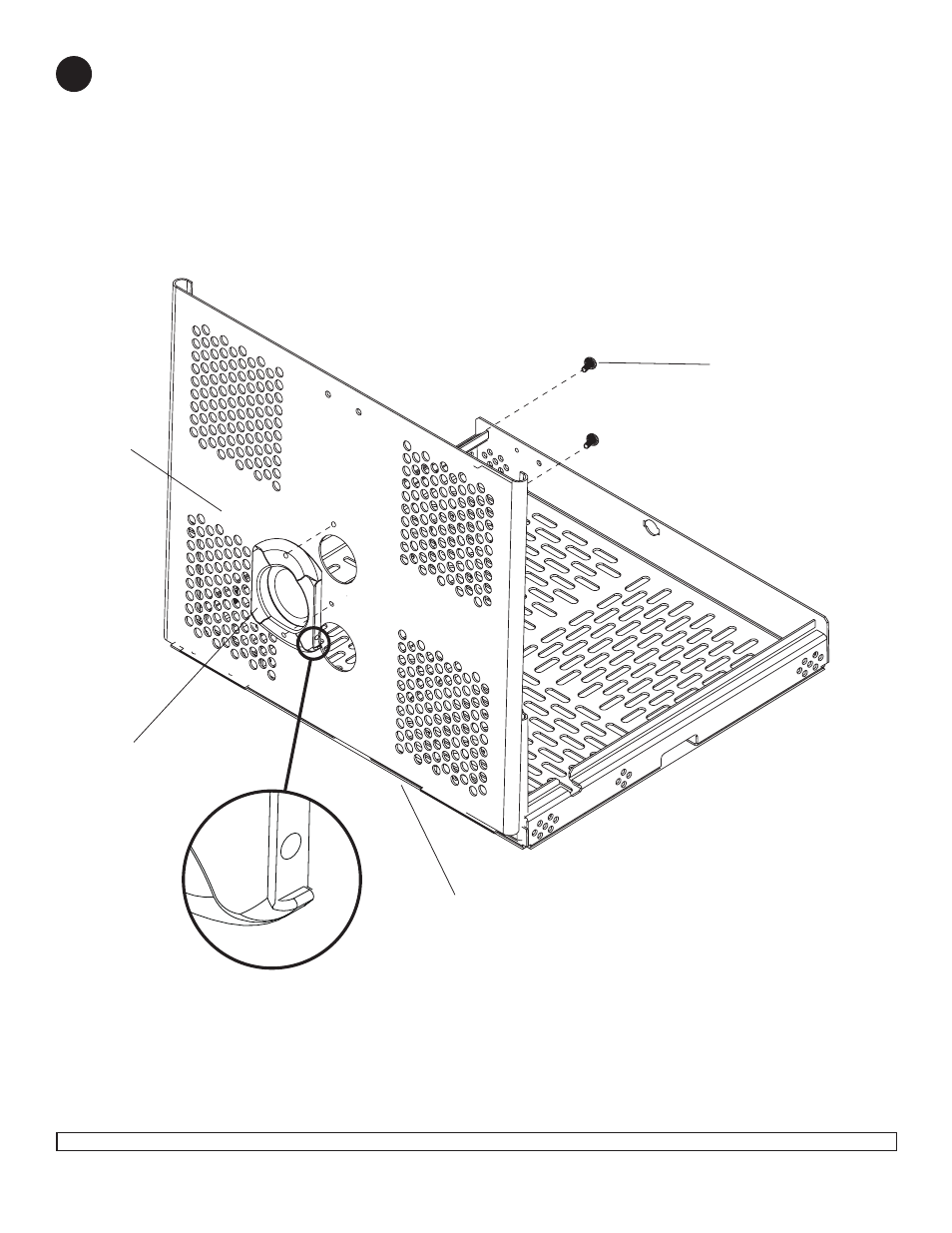

Remove the lock plug (C) by turning the key counterclockwise. Open the top cover and attach connection block (Z)
to tray (B) using two #10-32 x 3/8" serrated washer head socket pin screws (E) as shown.
NOTE: Make sure that the connection block shoulder is facing the back of projector.
E
B
CONNECTION
BLOCK SHOULDER
BACK OF
PROJECTOR
Z
1
