Peerless-AV DS-VWS546-2X2 - Installation - Manual (Page 7)

7 of 11 ISSUED: 01-16-13 SHEET #: 125-9398-1 01-16-13
44.73"
(1136mm)
40.41"
(1026mm)

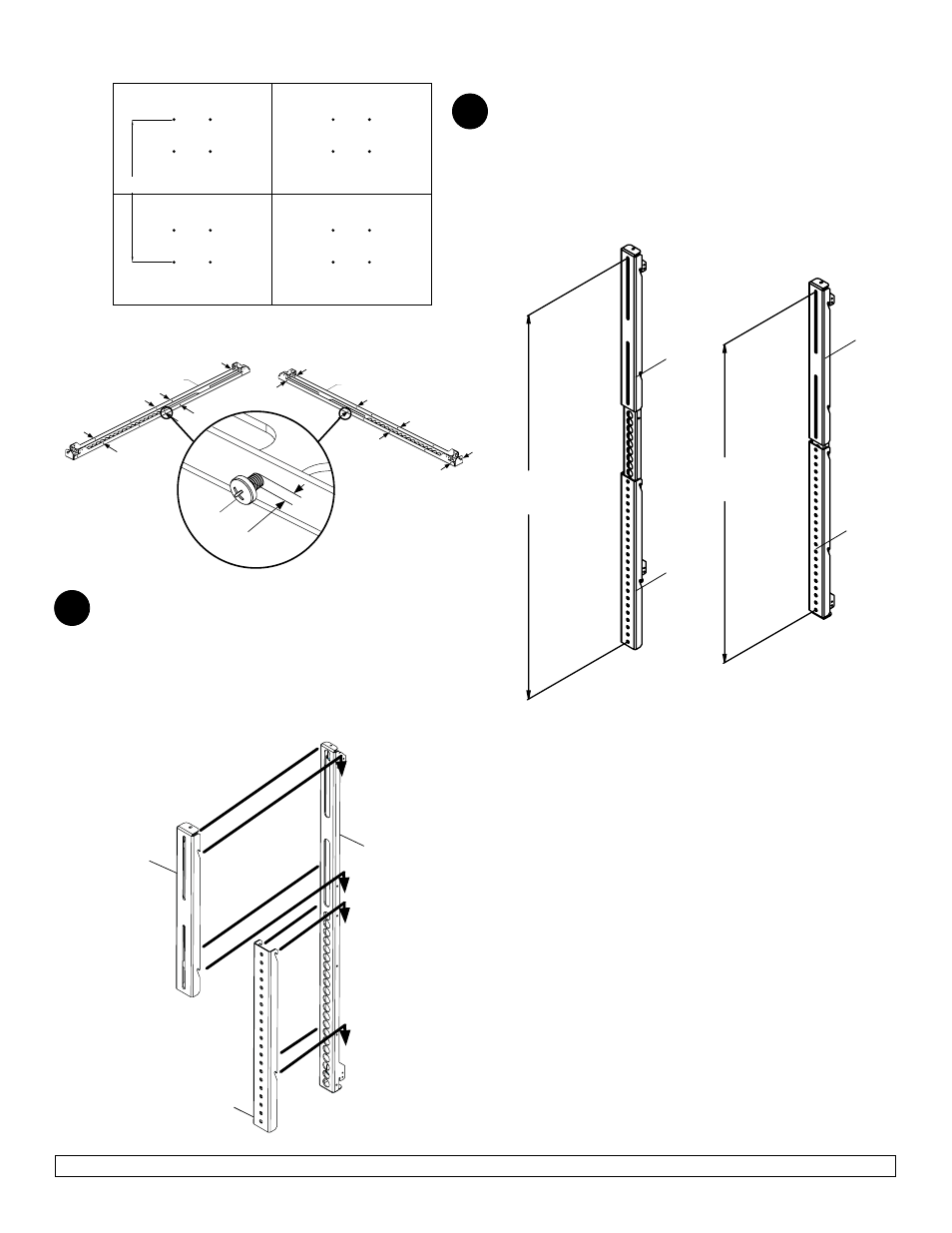

Note: Determine Display being used and select
appropriate bracket assembly length based on dimension
"Y".
Fasten eight M5 x 12 mm phillips screws ( S) into each
hook on bracket ( L) leaving 1/8" of exposed thread
as shown below. Repeat step for each hook on bracket.
Hook one the bottom adapter bracket ( N) onto the
exposed threads on the hook on bracket ( L) as shown
below. Hook one the top adapter bracket ( M) onto the
exposed threads on the hook on bracket ( L) as shown
below.
NOTe: Do not tighten the screws on the hook on
bracket ( L).
5
L
M
N
M
M
N
N
4
DISPLAY BRACkeT ASSeMBLY
L L
OR
1/8"
S
Y-RANGE
BACK Of DISPLAYS
