Peerless-AV HP450 - Installation - Manual (Page 2)

ISSUED: 08-17-07 SHEET #: 090-9126-9 08-01-12
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800 865-2112
2 of 6
Black Silver
Qty. Part # Part #
A 1 090-1783-1 090-4783-1
B 1 090-1544 090-4544
C 1 090-1821 090-4821
D 1 090-1552 090-4552
e universal adapter plate 1 PlP-Unl PlP-Unl-S
F thrust washer 1 590-1287 590-1287
G split washers 2 540-9402 540-9402
H 1/4-20 x 1/2" phillips screw 2 510-9108 520-9511
I M4 x 12 mm serrated washer head socket pin screw 4 510-1079 510-2079
J 4 mm allen wrench 1 560-9646 560-9646
K 10-32 x 1/2" set screw 2 520-1614 520-1614
L 1/4-20 x 1.5" threaded rod 4 520-2250 520-2250
M 1/4-20 x 3" threaded rod 4 520-2585 520-2585
N 1/4-20 lock nut 4 530-1021 530-2021
o M10 x 15 mm penta-pin screw 4 520-9263 520-2176
P loc-tite 271 thread lock adhesive (not shown) 1 570-0040 570-0040
Q penta-pin driver 1 520-9260 520-9260
R fender washer 4 540-1008 540-1008
S slope nuts 3 530-0035 530-0035
adapter plate

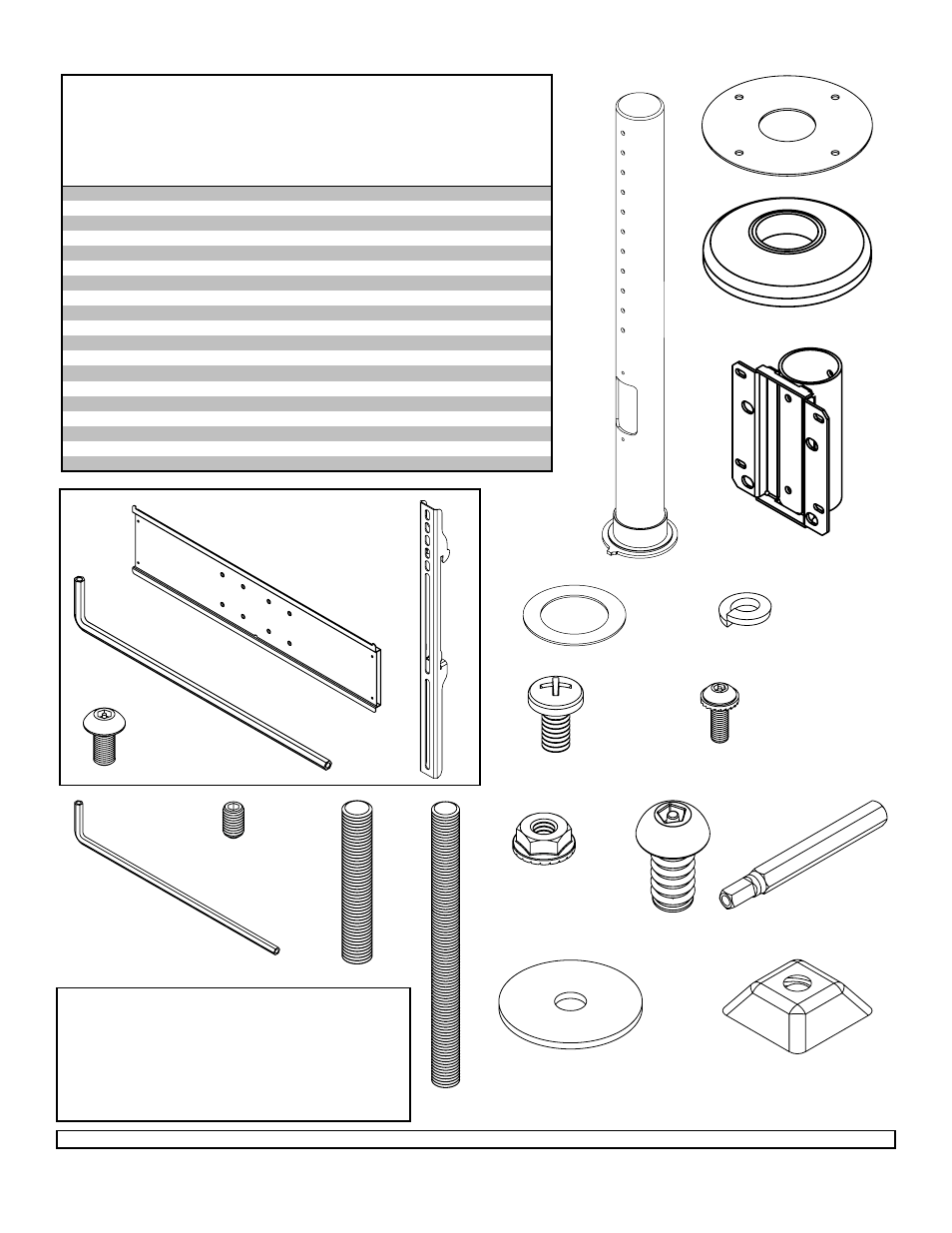

Parts List
Description
Before you begin, make sure all parts shown are included with your product.
support tube
base backer plate
desktop swivel base
Note: Read instruction sheet before you start installation and assembly.
Note: Some parts may appear slightly different than illustrated.
A B
C
D
e
F
0 5 5 4
G
H
I
J K L M N o Q
R
tools Needed for Assembly
• drill
• 5/8" open box wrench
• 17/64" drill bit
• phillips screwdriver
• 3/32" allen wrench
S
