Peerless-AV PLCM-2 - Installation - Manual (Page 5)

ISSUED:02-14-03 SHEET #: 201-9019-8 03-29-07
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
5 of 5

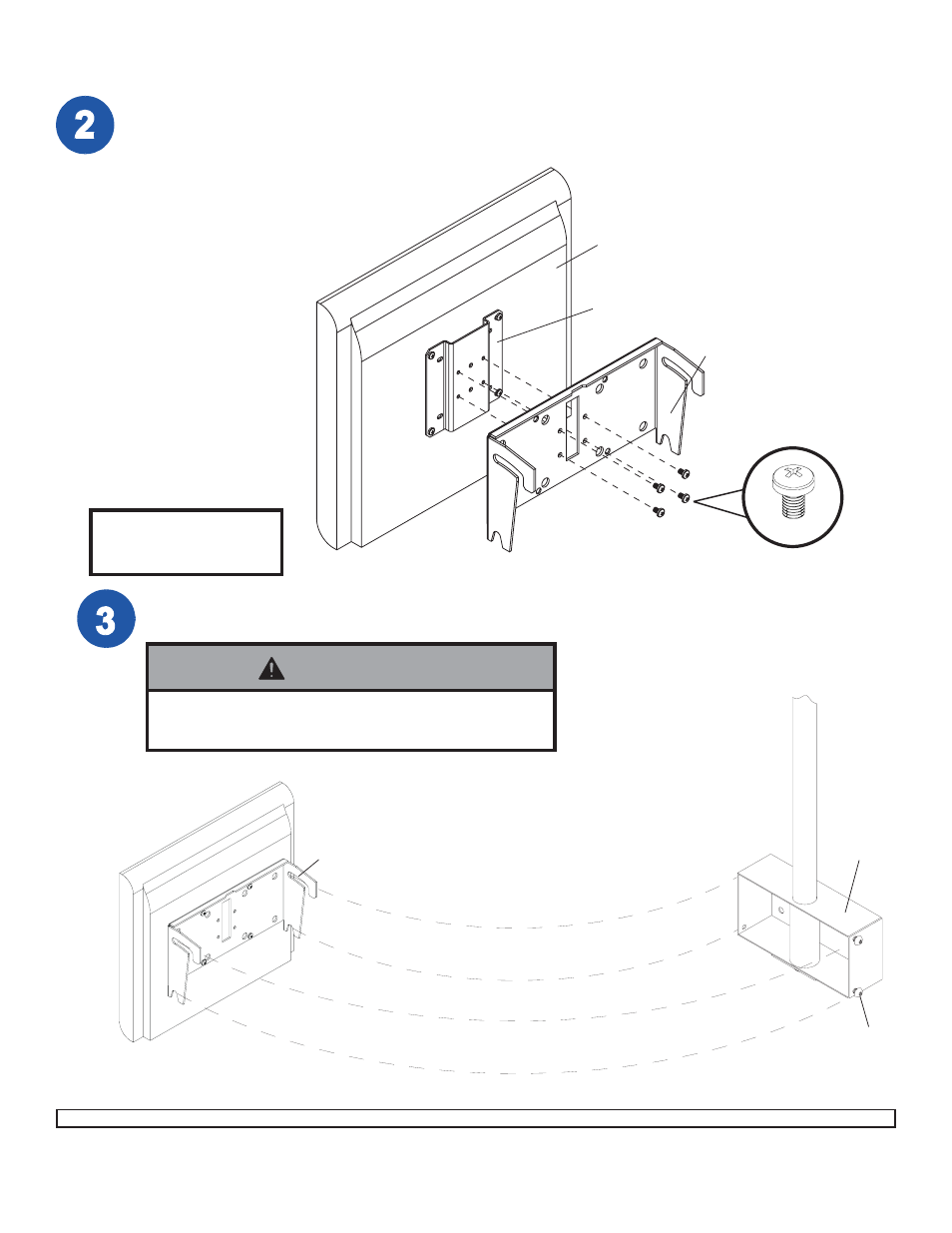

Hang tilt bracket (B) onto ceiling arm box (A). Adjust tilt as desired and tighten four
M10 x 1.5 x 15 mm penta-pin screws (G) securely using M10 penta-pin tool (H).
B
A
G
• For a safe assembly be sure to fully tighten four
screws (G).
WARNING
Note: Screen and adapter
plate may appear different
than illustrated.
Note: Refer to adapter bracket instruction sheet (sold separately, not evaluated by UL) for attachment of adapter bracket to
LCD screen before proceeding with step 2.
Attach tilt bracket (B) to adapter bracket using four M5 x 8 mm phillips screws (J).
Note: Do not use M5 x 6 mm screws that are included with the adapter bracket
J
ADAPTER BRACKET
LCD SCREEN
B
