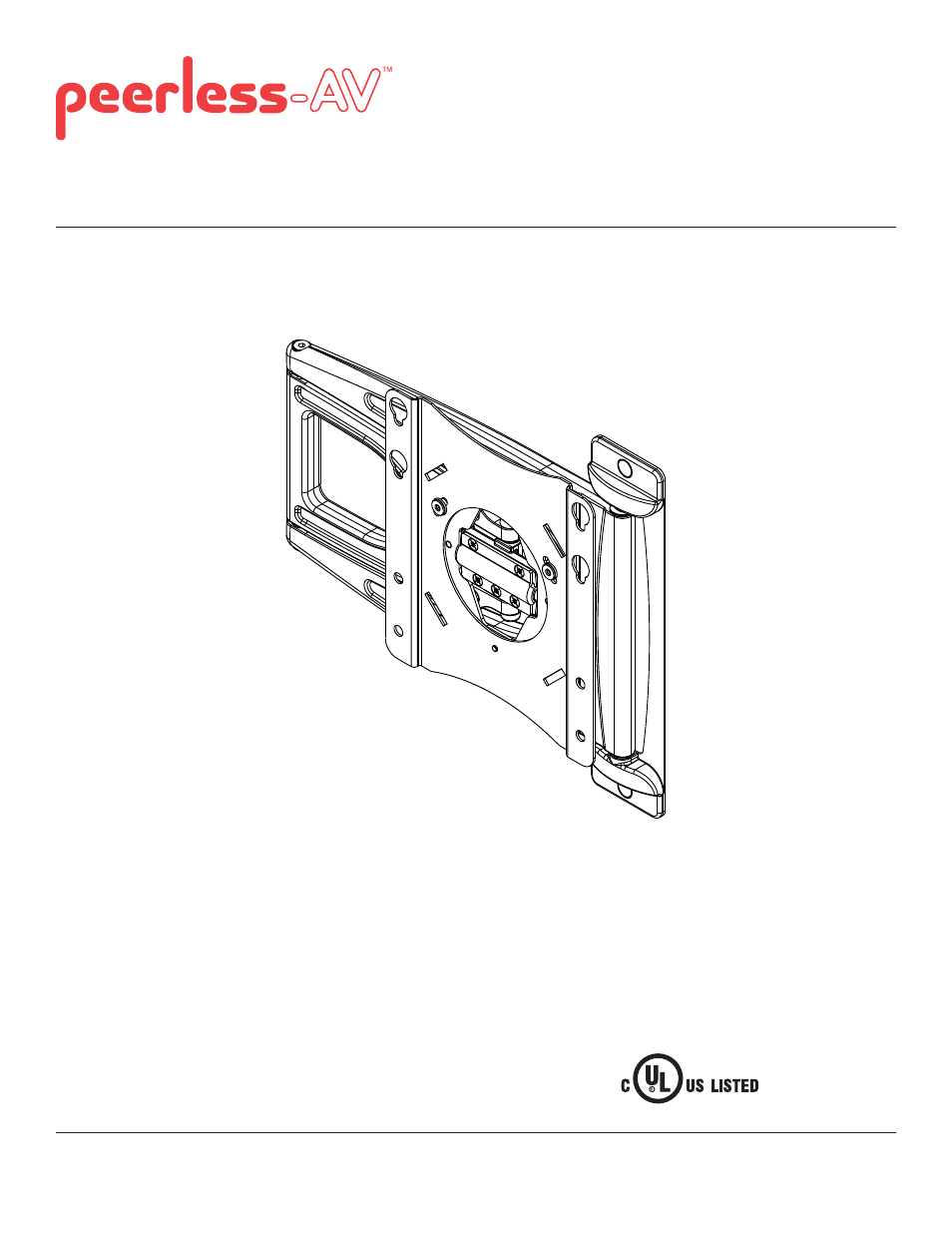

Installation and Assembly: Peerless Ultra-Thin Articulating
Mount for 32" to 46"* Flat Panel Displays

Model: SUA737

*Display Compatibility Requirements

• Depth of display must be less than 2".

• The depth of this mount (1.29") may not provide

suffi cient space for proper ventilation on some displays.
Please refer to the manufacturer's requirements for
mounting your display before installation.

• The display must have a fl at mounting surface, or the

mounting holes need to be on the furthest back surface
of the display.

• Input/Output connection must be properly oriented to

accommodate mounting 1.29" from the wall.

ISSUED: 12-15-11 SHEET #: 095-9371-2 03-08-12

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

Max UL Load Capacity: 60 lb (27.2 kg)
