3 of 35 ISSUED: 02-25-11 SHEET #: 009-9048-3 09-09-13
Before you begin, make sure all parts shown are included with your product.
Description Qty.
A column assembly 1
B universal adapter plate 1
C metal base 1
D glass shelf 1
E shelf bracket 1
F front caster 2
G rear caster 2
H column cover 1
I column support bar 1
J M6 x 8mm socket screw 16
K M8 x 25mm socket screw 2
L M5 x 12mm phillips screw 2
M M8 x 15mm socket screw 2
N M6 washer 16
O M8 washer 4
AA M5 x 15mm philips screw 4
BB M5 x 35mm phillips screw 4
CC M6 x 15mm phillips screw 4
DD M6 x 35mm phillips screw 4
EE M8 x 15mm phillips screw 4
FF M8 x 35mm phillips screw 4
GG Multiwasher 4
HH spacer 4
II M4 allen wrench (not shown) 1
JJ M5 allen wrench (not shown) 1
KK spanner wrench (not shown) 1
Descripción Cant.
A Unidad de la columna 1
B Placa adaptadora universal 1
C Base de metal 1
D Repisa de cristal 1
E Soporte para repisas 1
F Rueda pivotante delantera 2
G Rueda pivotante trasera 2
H Cubierta de la columna 1
I Barra de apoyo de la columna 1
J tornillos de cabeza hueca de M6 x 8mm 16
K tornillos de cabeza hueca de M8 x 25mm 2
L tornillos phillips de M5 x 12mm 2
M tornillos de cabeza hueca de M8 x 15mm 2
N arandelas de M6 2
O arandelas de M8 20
AA tornillos phillips de M5 x 15mm 4
BB tornillos phillips de M5 x 35mm 4
CC tornillos phillips de M6 x 15mm 4
DD tornillos phillips de M6 x 35mm 4
EE tornillos phillips de M8 x 15mm 4
FF tornillos phillips de M8 x 35mm 4
GG arandela múltiple 4
HH espaciador 4
II Llave M4 (no se muestra) 1
JJ Llave M5 (no se muestra) 1
KK Llave inglesa (no se muestra) 1

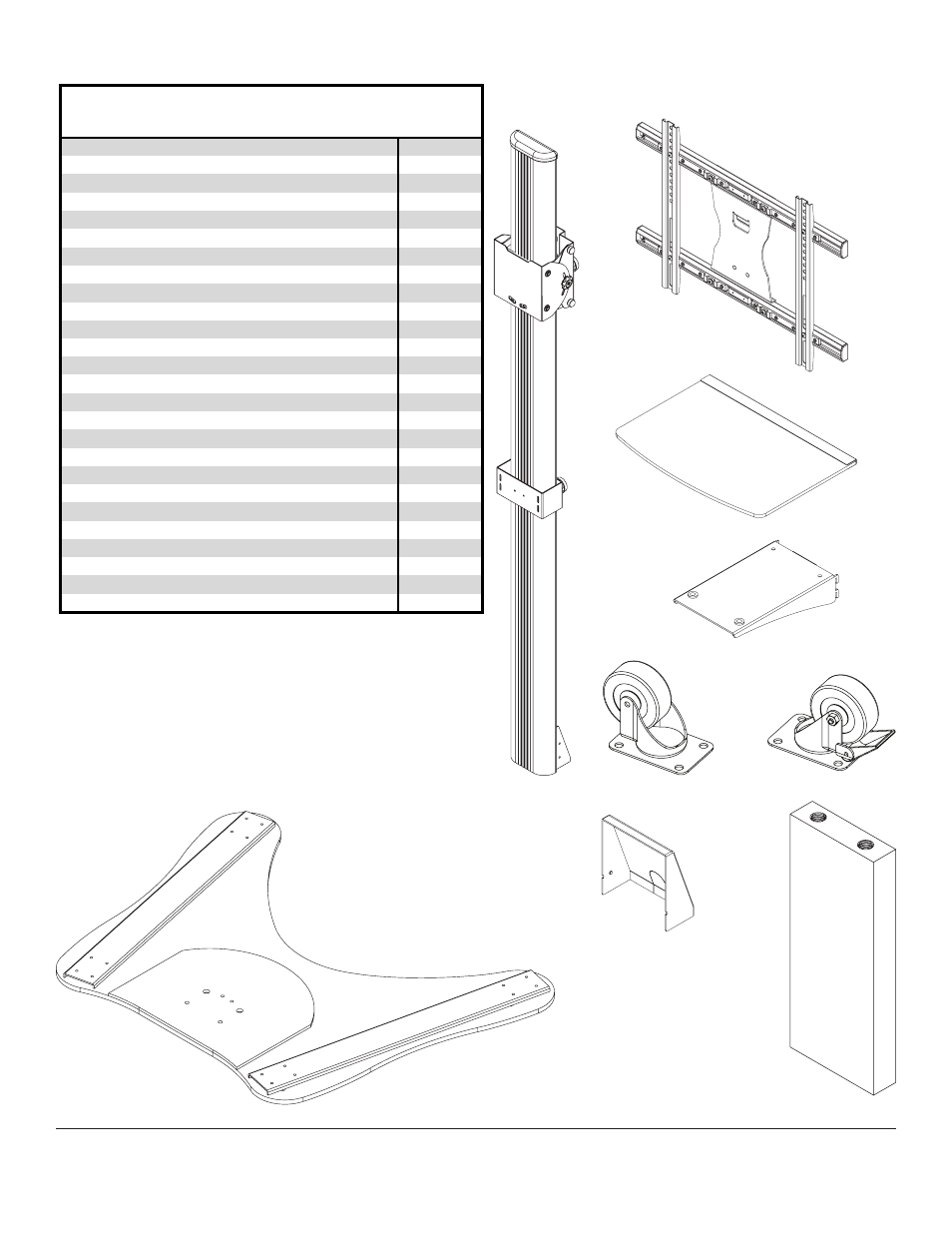

Parts List
Lista de Piezas
D
E
A
B
H
I
C
F G
Parts may appear slightly different than illustrated.
