7 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

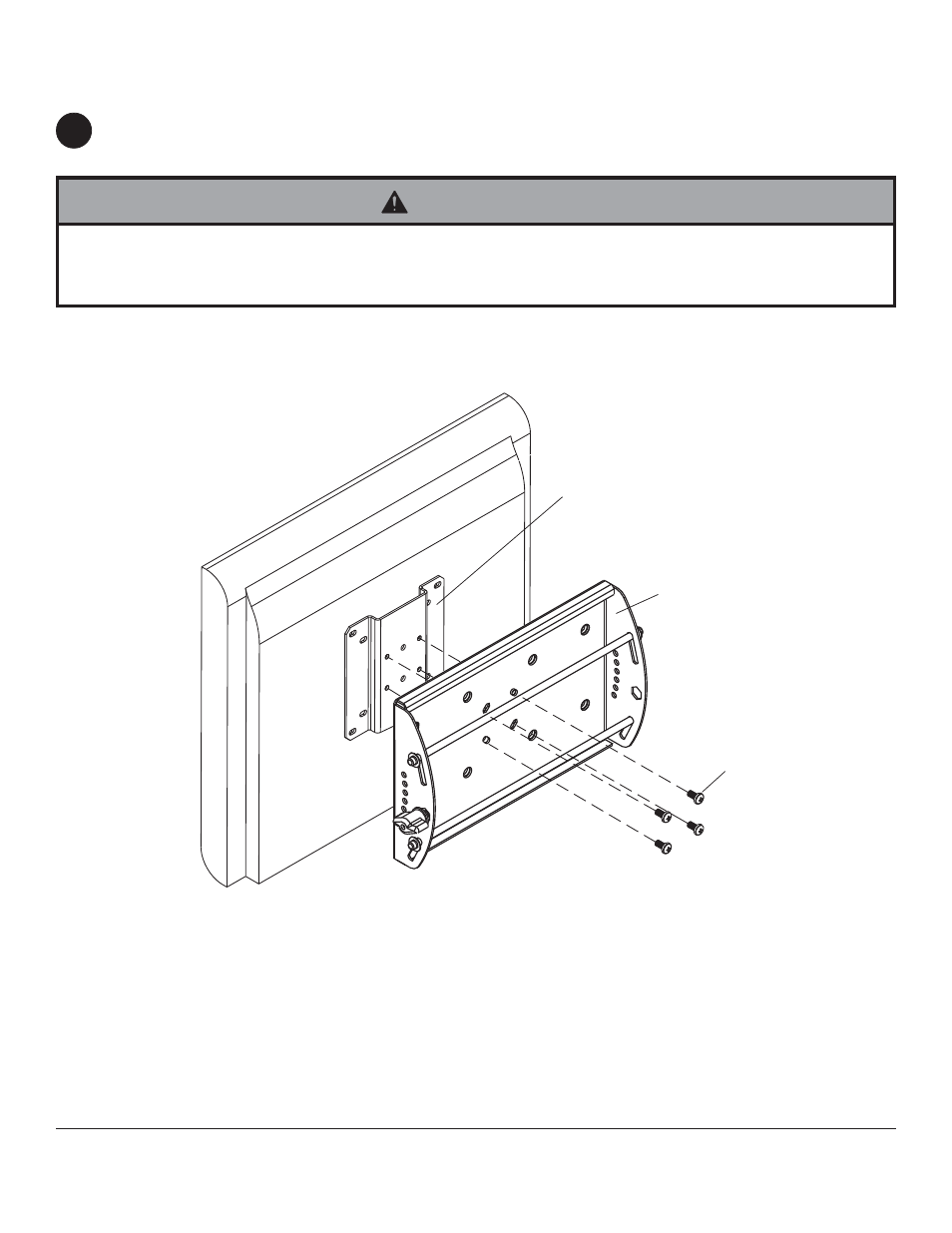

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. Attach the interface bracket of tilt bracket assembly (BB) to the LC adapter plate (sold
separately) using four M5 screws provided with plate as shown.
2
Attaching LC Adapter Plate to Tilt Bracket Assembly
• Tighten screws so interface bracket is firmly attached. Do not tighten with excessive force. Overtightening can cause
stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
WARNING
GENERIC LC ADAPTER
PLATE
M5 SCREWS
Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2.
BB
(NOTE: INTERFACE
BRACKET SHOWN
WITHOUT FULL TILT
BRACKET ASSEMBLY FOR
CLARITY)
