Installation and Assembly:

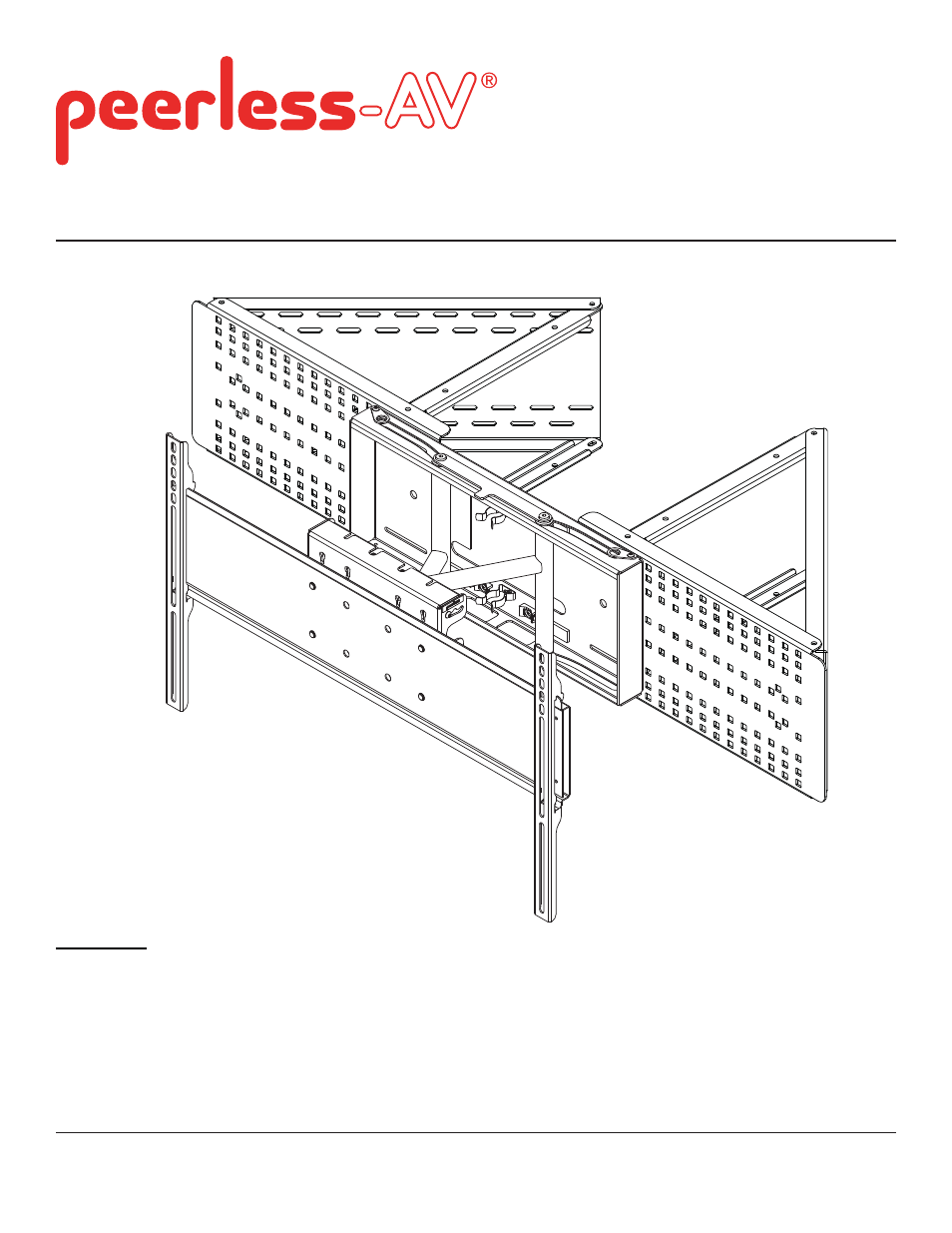

Flat Panel Corner Mount for 32" – 60" fl at panel displays

Models: CM850, CM850-S

Maximum Load Capacity:

150 lb (68 kg)

Features

• Allows display to fit in corner where space is limited
• Includes SmartMount

SP850-UNL Pull-Out Swivel Mount

• Expandable arms accommodate multiple display sizes without having

to adjust wall mount placement

• Extend up to 10.75"
• Pull-out swivel with up to 90° rotation
• 0°, 5° or 10° lockable tilt
• Accessory shelf available for A/V components (sold separately)
• Mounts to wood studs, concrete, cinder block

ISSUED: 07-22-08 SHEET #: 120-9055-7 (2013-10-01)
