6 of 16 ISSUED: 07-16-10 SHEET #: 061-9050-7 08-07-12
Cables may be routed through top, bottom, or rear
of main enclosure assembly. An additional available
option for cable entry while maintaining the waterproof
seal of the enclosure is the ROXTEC cable gland ( F).
Install ROXTEC hardware to top, bottom, or rear of
enclosure assembly ( A). NotE: If cables are routed
through rear enclosure assembly hole, wall mount is
required for mounting to wall.
Follow the ROXTEC manufacturers' instructions for
installation included in ROXTEC cable gland ( F) box.
Install cord cover plate assembly ( K) to remaining
open holes of enclosure assembly ( A) as shown in
detail 3.
2
Installing Cables
K
A

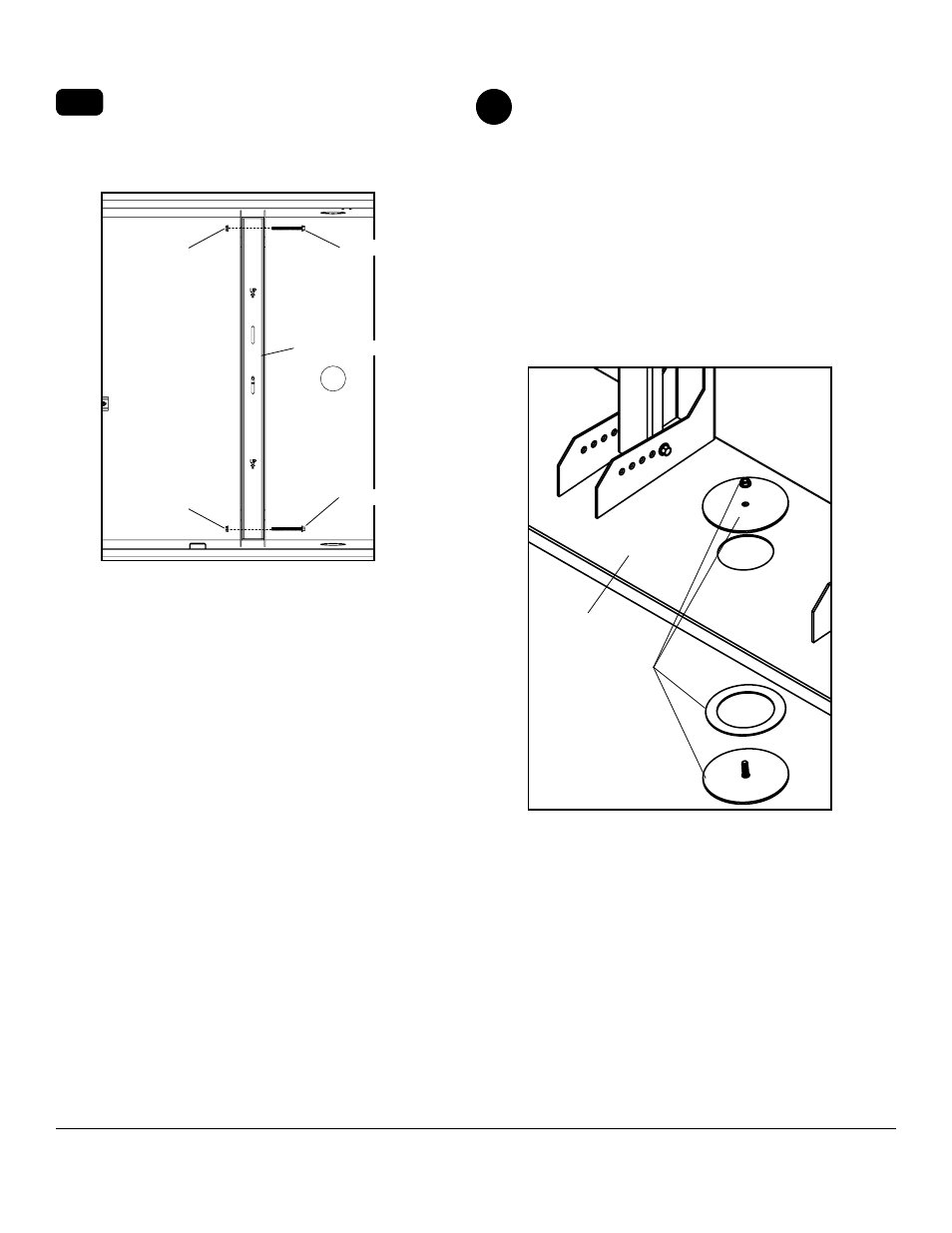

Removal of Rear Supports: Remove 3" serrated
washer head screws and locknuts at top and
bottom of rear supports as shown in detail 2 and
lift rear supports out.
DEtAIL 2
DEtAIL 3
1-2
REAR SUPPORT
3" SCREW LOCKNUT
LOCKNUT
3" SCREW
