ISSUED: 2013-05-13 SHEET #: 145-9011-9 2013-06-25

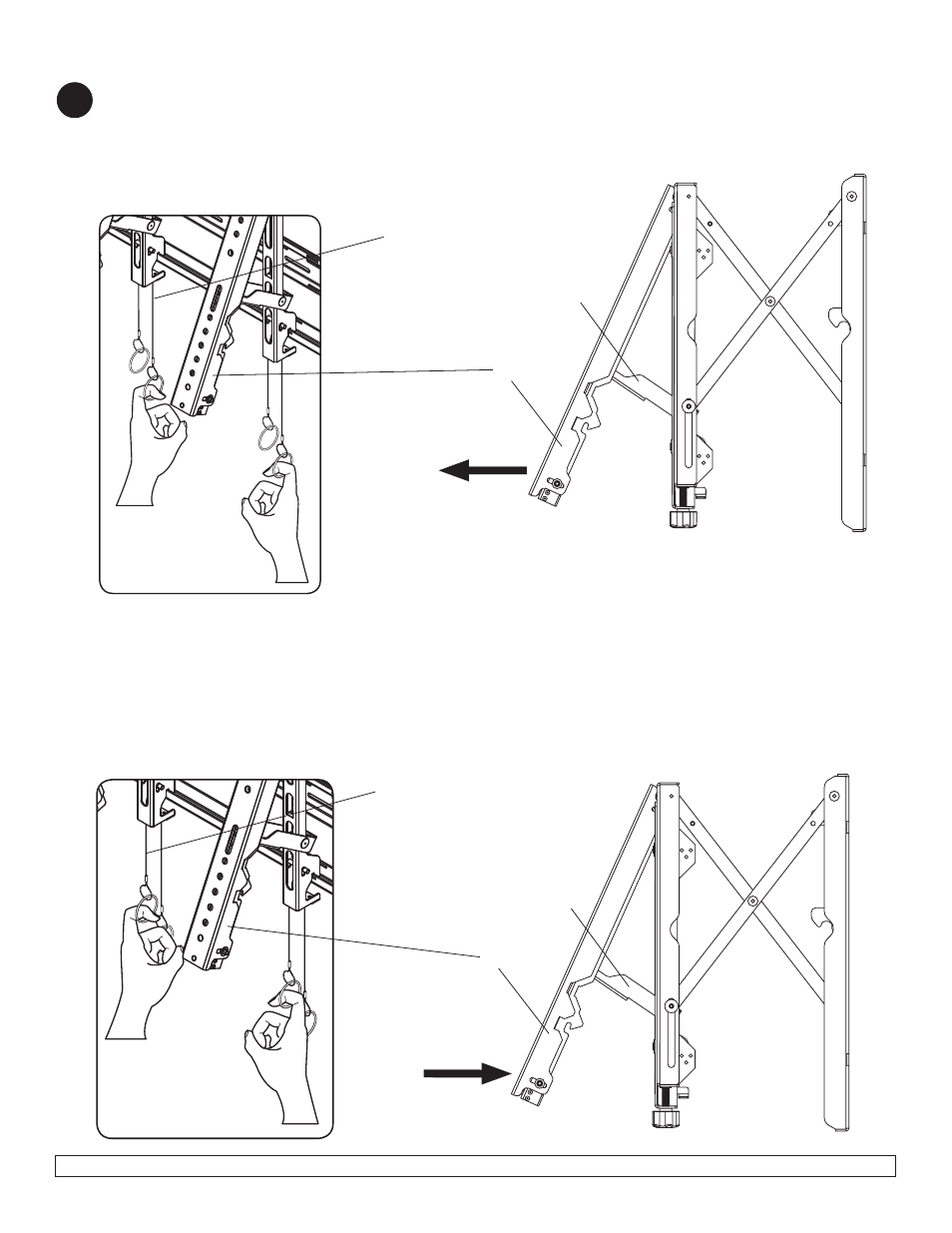

Open adapter brackets (

B) by pulling down on the long cords while pulling bottom of display away from wall.

NOTE: Kick stand will automatically engage. Make sure kick stand is in down postion before resting the display.

NOTE: Extended position is for service access only. The mount must be closed during normal use and operation.

NOTE: Display not shown for clarity.

OPEN Adapter Brackets: LONG CORDS

CLOSE Adapter Brackets: SHORT CORDS

Slightly pull display away from wall to release kick stand while pulling down on short cords.

NOTE: Once short cords are pulled, kick stand will disengage.

NOTE: Support the display until the adapter brackets (B) are engaged in the closed position.

TO OPEN,

PULL DOWN LONG CORDS

TO CLOSE,

PULL DOWN SHORT CORDS

KICK STAND IN

DOWN POSITION

LONG CORDS

SHORT CORDS

KICK STAND
