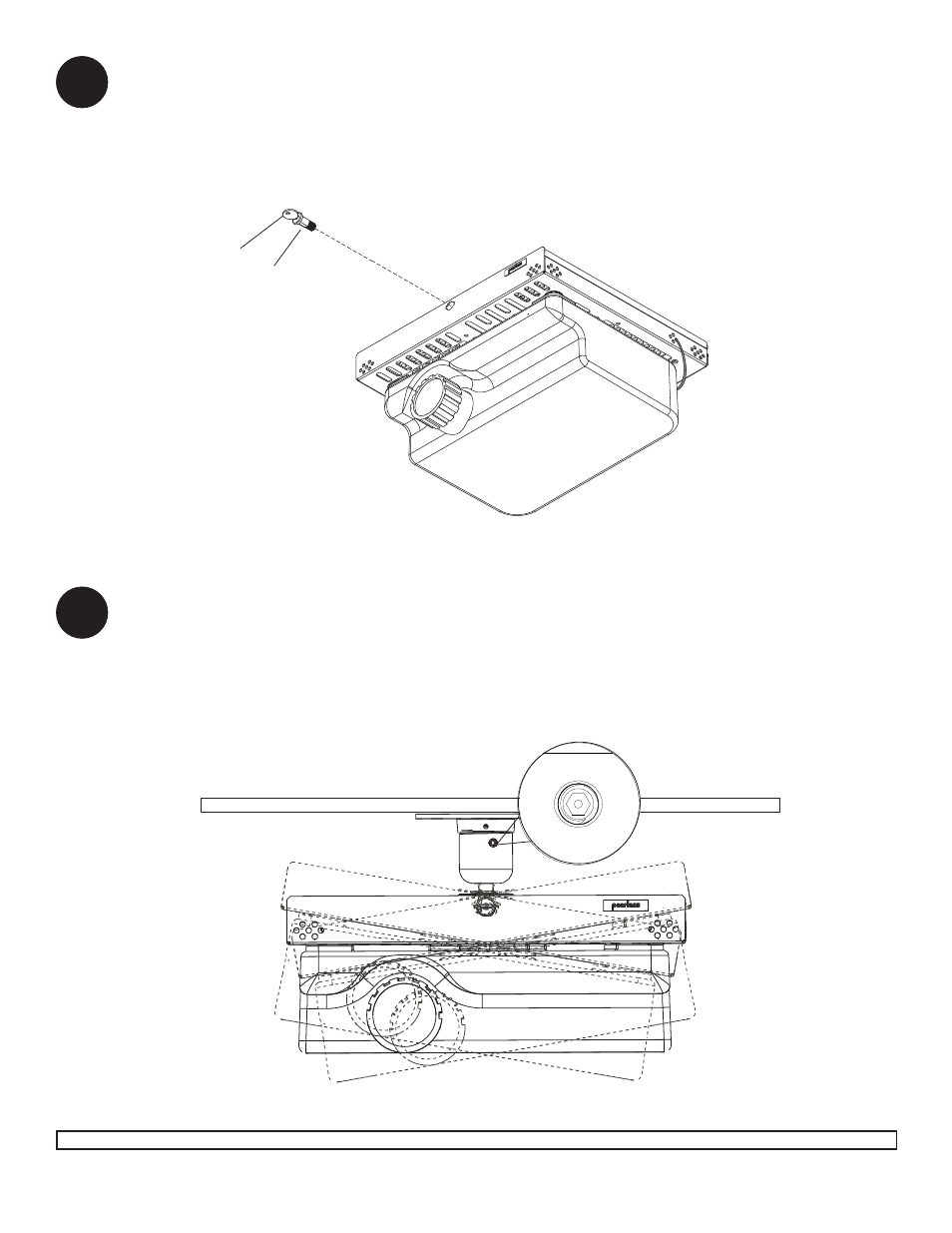

Close the mount and insert the lock plug (S) and key (Z) as shown.
NOTE: To remove key, slot must be in the horizontal position. This may require that you back off 1/4 turn.

IMPORTANT: Key is necessary for projector removal. Store it in a safe place.

To adjust roll, pitch, and yaw loosen the set screw (shown below) using security allen wrench (R) or standard 4
mm allen wrench. You should be able to just slightly loosen the screw so that your adjustments can be set with-
out having to hold the projector. Move projector to desired position and slowly tighten set screw.
NOTE: Be sure not to touch the projector while tightening the set screw. This may cause the image to be
unaligned when you let go.

IMPORTANT: Allen wrench (R) is your key for projector removal. Store it in a safe place.

SET SCREW
