13 of 18 ISSUED: 11-09-10 SHEET #: 125-9158-4 12-21-10

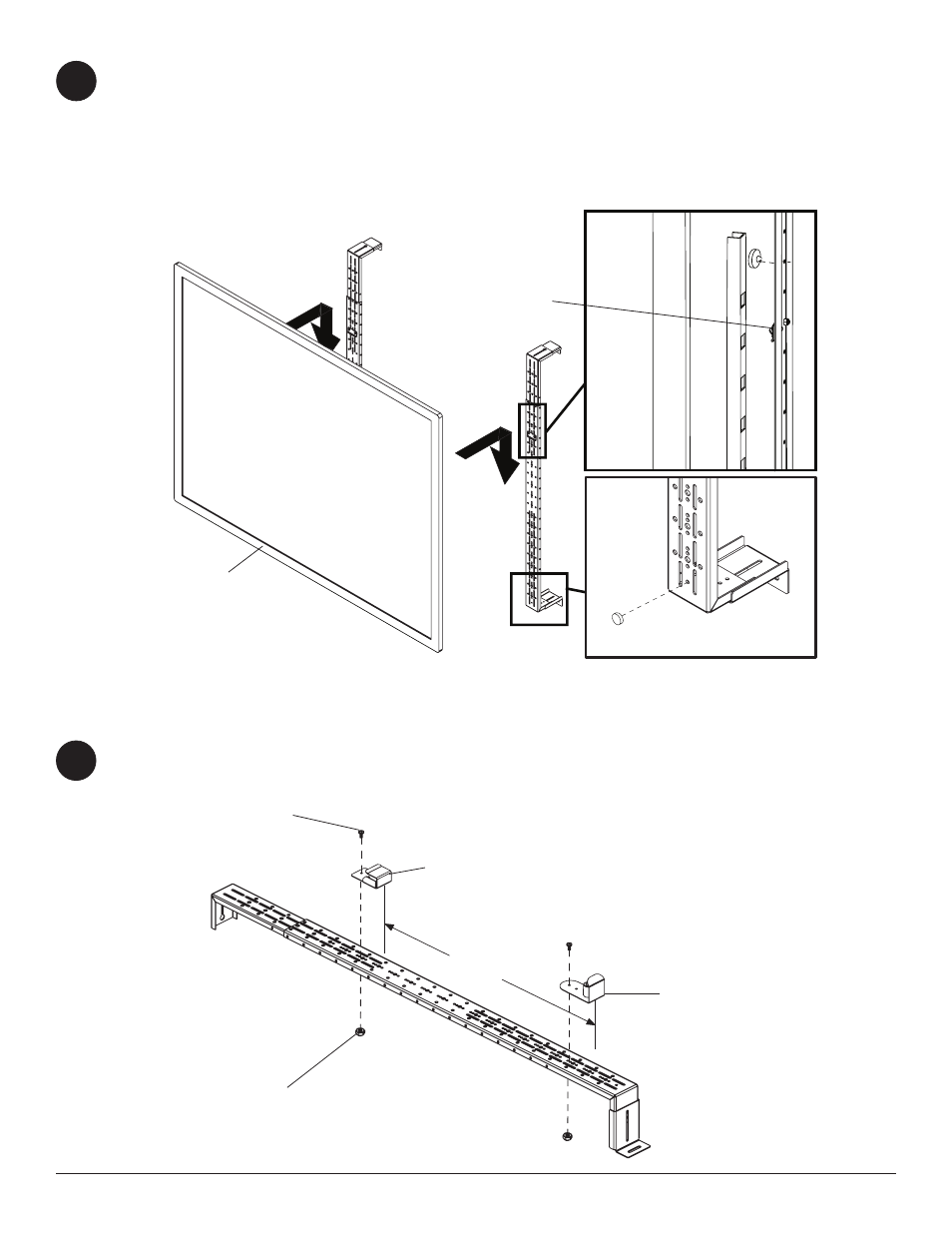

Press four rubber pads ( N) into center holes on top and bottom of vertical supports (B) to stabilize
board as shown below. Make sure rubber pads ( R) line up with existing Hitachi brackets on back of
board.
Hook Hitachi rail cutouts on to Hitachi bracket at desired height as shown below.
6
Hitachi Starboard
Hitachi bracket
(supplied with
Hitachi Starboard)
4 Fasten top and bottom support bracket (supplied with ActivBoard) to vertical support using two
M6 x 12 mm phillips screws ( Q), and M6 nylon nuts (P) as shown below. Repeat using second vertical support.
NOTE: Be sure to mount brackets 27.9” apart.
Top Support Bracket
(supplied with ActivBoard)
Installing to ActivBoards
27.9"
(708 mm)
Bottom Support Bracket
(supplied with ActivBoard)
P
Q
SKIP TO PAGE 18
Installing to Hitachi Starboards
(supplied with Hitachi Starboard)
Rest ActivBoard face down on a non abrasive surface to prevent scratching.
