2. Installation and setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is
damaged. Please keep the original package in a safe place for future use.
NOTE: There are two different types of online UPS: standard and long-run models. Please
refer to the following model table.
Model Type Model Type
1000
Standard
1000L
Long-run
1500 1500L
2000 2000L
3000 3000L

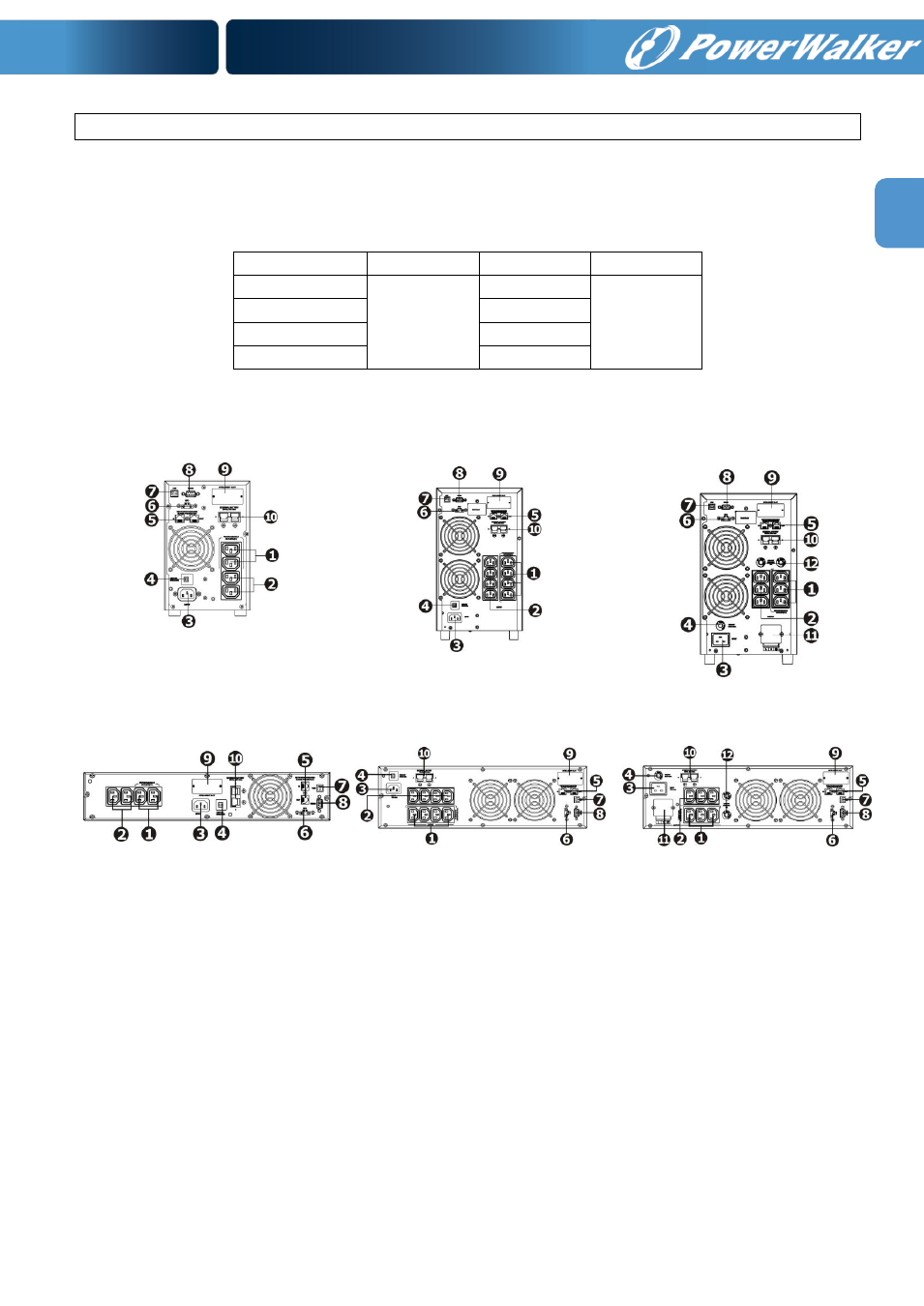

2-1. Rear panel view
1000(L) / 1500(L) TOWER
2000(L) TOWER 3000(L) TOWER
1000(L)/1500(L) RACK 2000(L) RACK 3000(L) RACK
1. Programmable outlets: connect to non-critical loads.
2. Output receptacles: connect to mission-critical loads.
3. AC input
4. Input circuit breaker
5. Network/Fax/Modem surge protection
6. Emergency power off function connector (EPO)
7. USB communication port
8. RS-232 communication port
9. SNMP intelligent slot
10. External battery connection
11. Output terminal
12. Output circuit breaker
