Pace-Edwards BL Honda Ridgeline User Manual
Page 4

BEDLOCKER
®
RIDGELINE
4

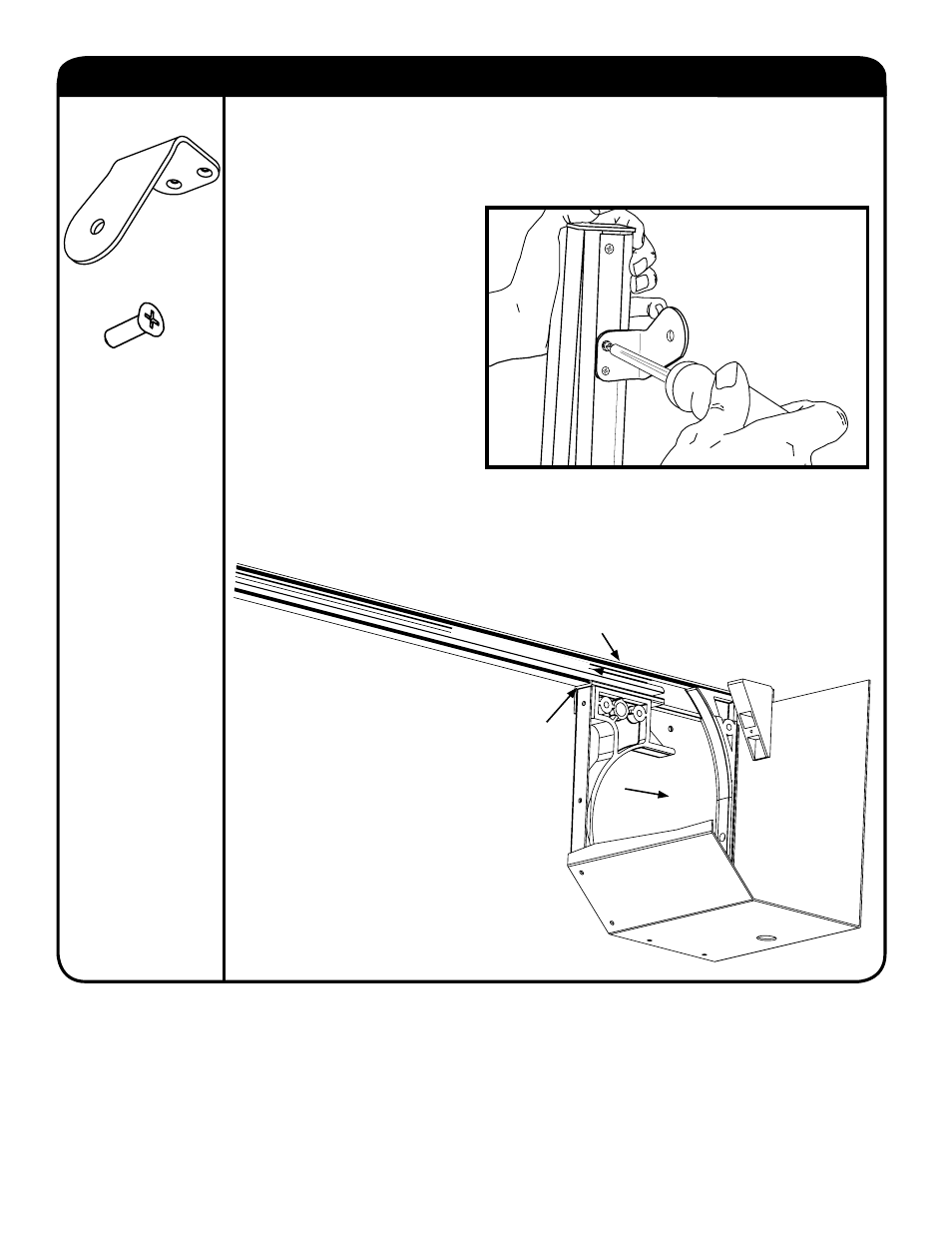

STEP 3: ATTACH RAIL BRACKET & RAILS TO THE CANISTER
Open the rail box along the length of the box; lift rails out to avoid scratching the rail surface
on the package staples.
REMOVE PROTECTIVE PAPER ON UNDERSIDE OF RAILS. THIS IS FOR PACKAGING
PURPOSES ONLY.
Find the two rear rail bracket’s and
four of the #8–32 X ½” countersunk
screws in the hardware kit and
attach them to each of the rails
at the tailgate end. (Notice that
there is a Left hand side and a
Right hand side bracket) (Figure
3a)
Install the rails to the canister by
threading the blanket in the rails,
and sliding the rails into the rail
grip that is attached on the inside
of the canister.
Then slide the rails forward,
towards the truck cab making sure
that both of the rail grips are engaged. (Figure 3b)
Complete for both left and right rails.
HARDWARE USED:
REAR RAIL BRACKET x 2
#8-32 x1/2” SCREWS x 4
Left Rail
Rail Grip
Forward
Canister
FIG. 3a
Attach the rear rail
bracket to the end
of the rails with the
screws provided.
FIG. 3b
Thread Blanket in Rail here
