Complete Canister

Assembly

Top Cover

Rails

(left & right)

Hardware
Pack

Drain
Tubes

BEDLOCKER

®

HONDA

2

Rails come in a

separate box.

The BedLocker also offers an optional wire harness (part # BL1120) to manually operate the tonneau cover from
inside the cab of your truck.

This harness is designed to plug into the custom-built electronics control box mounted inside the canister.

Thread the plug through the side of the canister and connect it to the grey/violet plug. Make sure to secure the
loose wires inside the canister away from the gear and blanket.

Then run the wire to the cab and attach under the dash in a suitable location.

OPTIONAL WIRING HARNESS FOR DASHBOARD SWITCH:

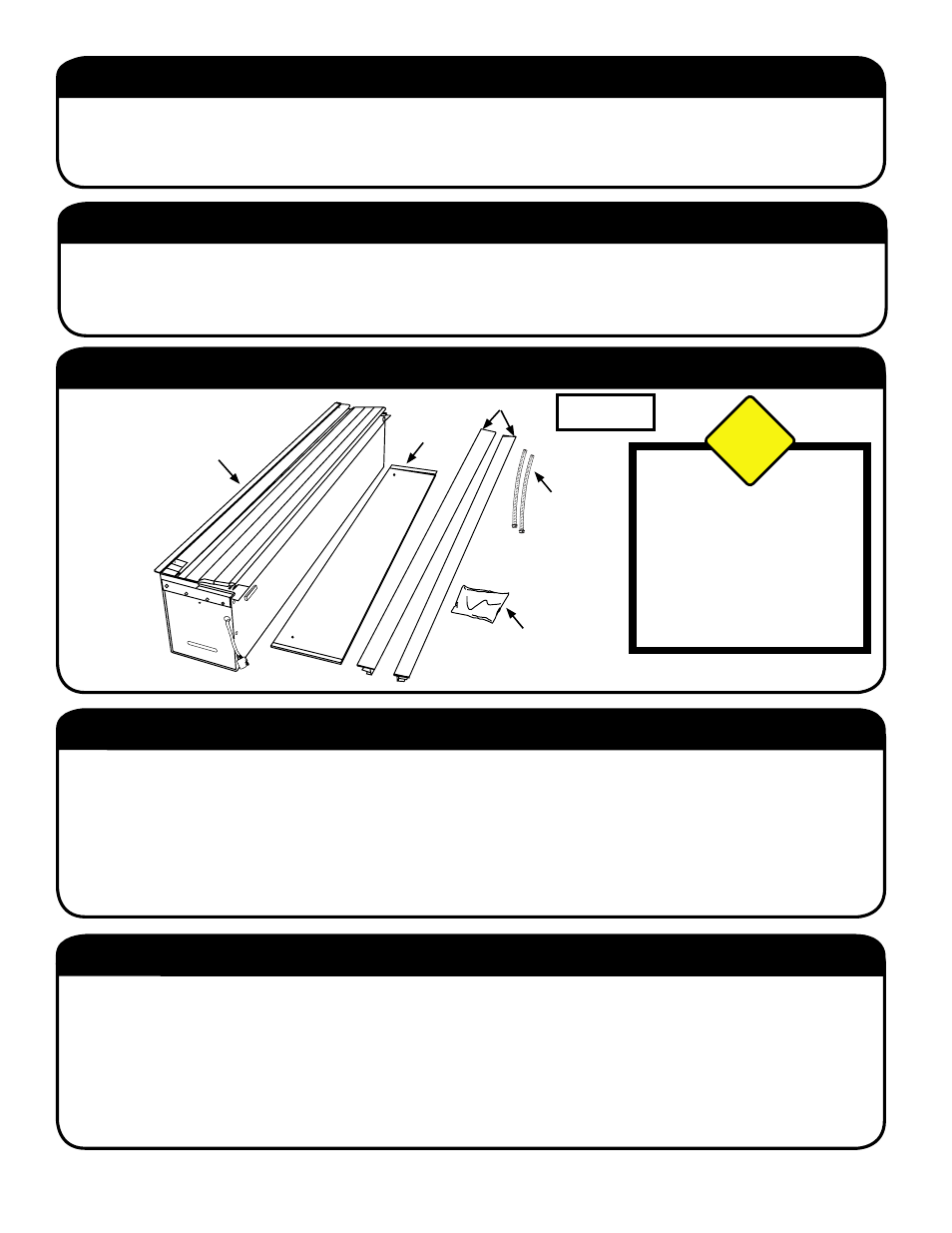

PACKAGING CONTENTS:

DO NOT USE A KNIFE TO OPEN
THE RAIL BOX.

OPEN THE RAIL BOX ALONG
THE LENGTH OF THE BOX
AND LIFT RAILS OUT TO AVOID
SCRATCHING THE SURFACE OF
THE RAILS ON THE PACKAGE
STAPLES.

CAUTION!

Read the instructions carefully before you start. Due to the custom fi t of this truck bed cover the installation will
require a second person to help in running the wire and placing the canister in the truck bed. If you have questions
regarding the installation please call our Technical Support Line at (800) 338-3697.

BEFORE YOU START:

3/8” wrench or socket
#2 Phillips screwdriver
Wire Cutters

TOOLS REQUIRED FOR ASSEMBLY:

Razor box Knife
#40 Torx wrench
#50 Torx wrench

Drill w/ 3/4” taper drill or step drill bit

STEP 1: REMOVE CONTENTS & PLYWOOD PACKAGING

Remove the canister and top cover from the box.

Remove components from inside the canister. Perform a quick inventory to insure all parts are there.

Using the 3/8” wrench or socket remove the 2 bolts holding the plywood packaging supports on the ends of the
canister. Discard plywood packaging supports and bolts.

DISCARD PLYWOOD PACKAGING AND BOLTS!
