International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
7.5 cm
2.95 in
10.0 cm
3.94 in
2.4 cm
.94 in
10.95 cm
4.31 in
2.5 cm
.98 in
8.9 cm
3.50 in
4-M3x5
2-M3x8
5 & 8 Port, ultra compact Industrial
ethernet switches
ESW105 & ESW108 Series
Fiber Optics
Fiber type
Distance Wavelength transmit power
receive
sensitivity
Multi-mode 2 km
1310 nm
-. 23.5 to -. 14 dBm
≤ -. 35 dBm
Single-mode 20 km
1310 nm
-. 15 to -. 8 dBm
≤ -. 35 dBm
regulatOry apprOvals
CE, FCC, RoHS
HazarDOus lOcatiOns
UL/cUL Class I Div 2 Groups A,B,C, and D
sPecIFIcAtIons
technology
Standards:
IEEE802.3, 802.3u, 802.3x
Processing Type:
Store and forward with IEEE802.3x full duplex,
non-blocking flow control
Flow Control:
IEEE802.3x flow control, back pressure flow control
Packet Buffer Memory:
64K bytes
Address Table Size
2K MAC Addresses
interFace
RJ45 Ports:
10/100BaseT(X) auto negation, Full/Half duplex, auto
MDI/MD-X
Fiber Ports:
100BaseFX, (multi-mode or single–mode with LC
connectors)
LED Indicators:
Power, (Link / Speed / Activity for each port)
Power
Input Voltage
12 to 36 VDC and 10 to 24 VAC
Power Consumption
4.00 W Max
Input Connection
Removable Terminal Block
Protection
Reverse Polarity Protection
enVironMental
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-40 to 80°C (-40 to 176°F)
Humidity
10 to 95% Non-condensing
MTBF
200,000 hours
MTBF Calculation
Parts count reliability prediction
Mechanical
Enclosure
IP30 DIN mount metal case
Dimensions (5 ports)
H 10.0 x W 2.5 x D 7.5 mm
(3.94 x 0.98 x 2.95in)
Dimensions (8 ports)
H 145 x W 24 x D 75mm
(5.71 X 0.94 x 2.95in)
Installation
35 mm DIN or 6 way panel mount
sPeciFications–leVel 3, en 61000-6-2:
2006 generic standards For {heaVy) industrial enVironMents
test
description
test level
level
EN 55022: 2006 +
A1:2007
Class B Emissions
EN 61000-4-2: 2009 Electro-Static
Discharge (ESD)
Enclosure
Contact
6kV
3
Enclosure Air 8kV
3
EN61000-4-
3:2006+A1:2008
Radiated Field
Immunity (RFI)
Enclosure
Ports
10V/m
3
EN61000-4-4:2004
Burst (Fast Transient) Signal Ports
DC Ports
2kV
3
EN61000-4-5:2006
Surge
Signal Ports
1kV
3
DC Power
Ports
2kV
3
EN61000-4-6: 2009 Induced (Conductive)
RFI
Signal Ports
10 V RMS
3
DC Power
Ports
10 V RMS
3
test
descriPtion test leVel
leVel
IEC60068-2-6
Vibration
Test Fc
2G
-----
IEC60068-2-27
Shock
Test Ea
30G
-----
IEC 60068-2-32
Free Fall
-----
envIronmentAl sPecIFIcAtIons

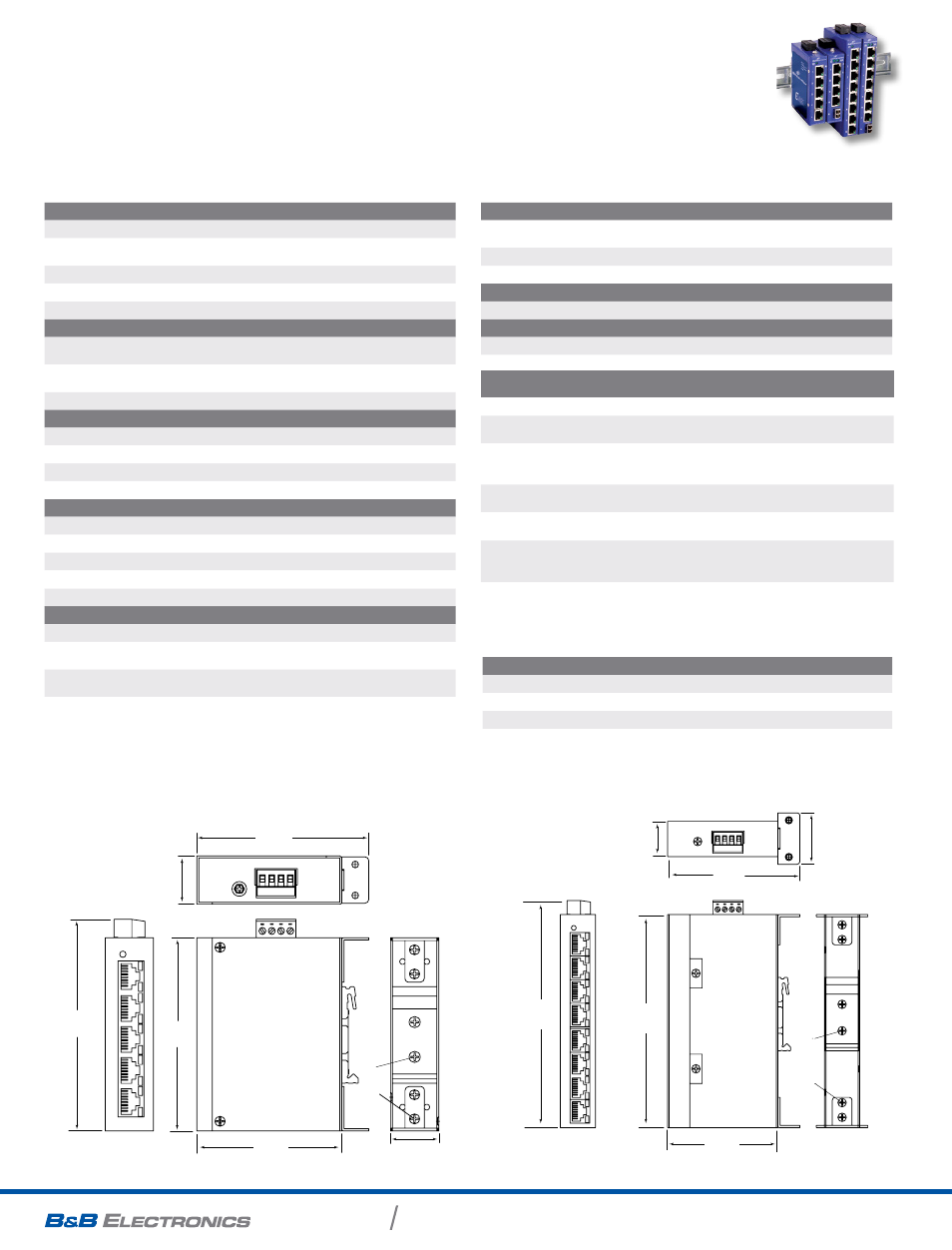

mechAnIcAl dIAgrAm
5 Port model
4-M3x5
2-M3x8
7.5 cm
2.95 in
9.0 cm
3.54 in
14.5 cm
5.71 in
15.5 cm
6.08 in
3.5 cm
1.38 in
2.4 cm
.94 in
mechAnIcAl dIAgrAm
8 Port model
