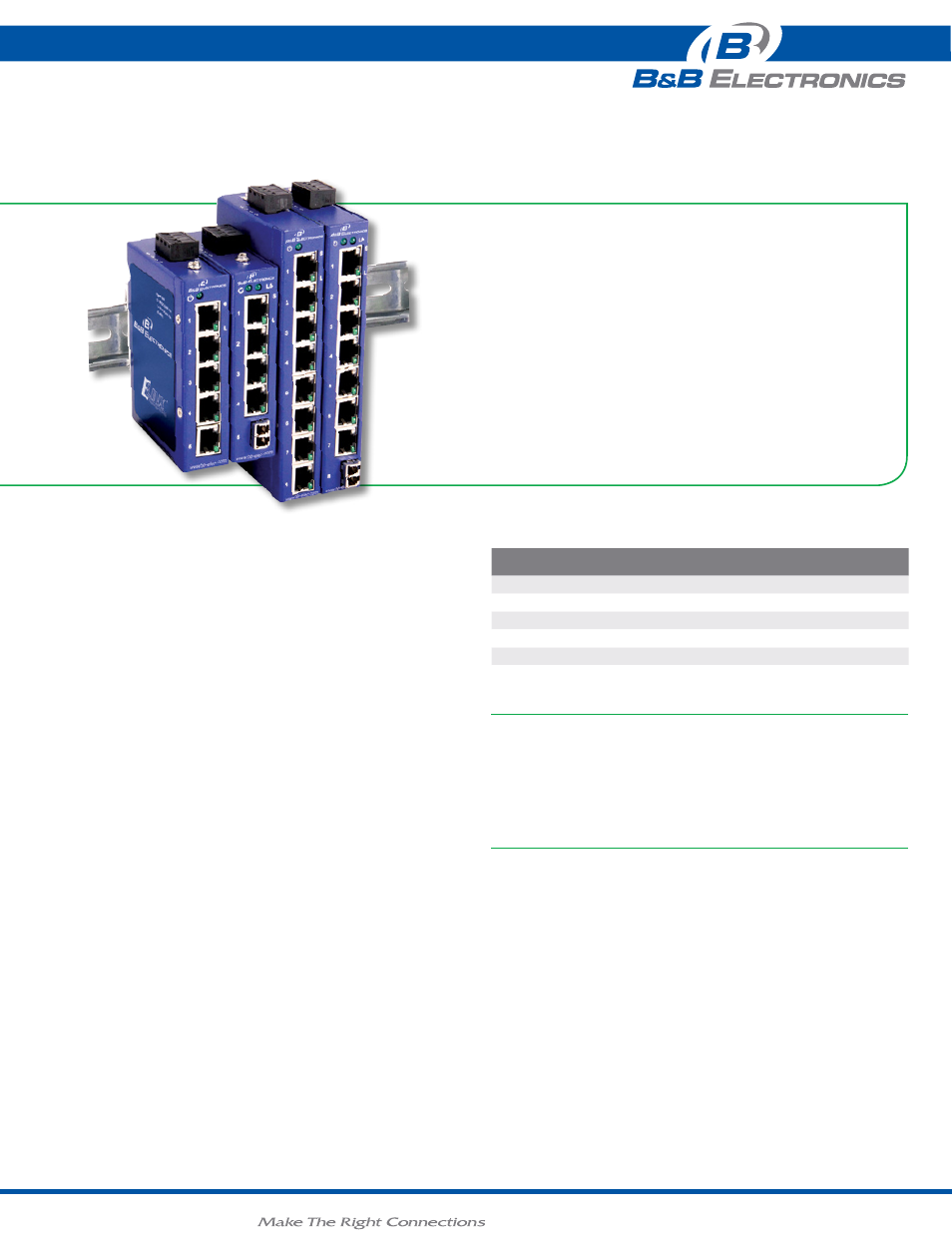

5 & 8 Port, ultra compact Industrial
ethernet switches
ESW105 & ESW108 Series
5 & 8 Port, ultra compact Industrial
ethernet switches
ESW105 & ESW108 Series
Designed to fit many applications, the ESW105 and ESW108 series are
more than just an Ethernet switch with low pricing. They are plug-and-
play industrial Ethernet Switches with an ultra compact IP30 DIN rail
case, 6 way mountable panel brackets, LEDs for Power, (Link / Speed
/ Activity for each port), 12 to 36 VDC and 10 to 24 VAC power inputs
with removable terminal blocks. These switches are perfect for any
applications that require special protection from hash environments.
Choose a switch with five or eight copper ports, or a combination of
copper and fiber ports. Multi-mode fiber models extend range up to 2 km.
Single-mode fiber models extend range up to 20 km. All models require
an external power supply (sold separately).
The switch ships with 4 panel mount clips giving the user 6 different ways
to panel mount the unit.
• Ultra compact design - less than 1 inch wide
• UL/cUL Class I/Division 2 Groups A,B,C, and D
• Designed to meet Level 3 (Heavy) industrial environments -
EN61000-6-2 Certifications
• Shock, vibration, free fall tested
• LC single and multi mode fiber ports
• 10/100M, full/half duplex, MDI/MDI-X (Auto-negotiate)
• Supports IEEE 802.3, 802.3u, and 802.3x standards
• IP30 rated DIN rail case with 6 different panel mount options
• Dual power inputs, 12 to 36 VDC and 10 to 24 VAC
• 2K MAC addresses
AccessorIes
DFMM-SCSC-1M - Multi-Mode Duplex Fiber Cable, SC to SC, 1 Meter
MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-24 - DIN rail mount power supply 24VDC, 1.7 A output power
EIRSP1 - Industrial DIN rail mount Ethernet Surge Suppressor
Product FeAtures
orderIng InFormAtIon
Model nuMBer 10/100 coPPer
Multi-Mode
FiBer
single-Mode
FiBer
ESW105 5
ESW105-ML 4 1 (LC)
ESW105-SL 4 1 (LC)
ESW108 8
ESW108-ML 7 1 (LC)
ESW108-SL 7 1 (LC)
ESW10x Series_3713ds
