Mesp211, Vlinx ™ ultra compact modbus gateways

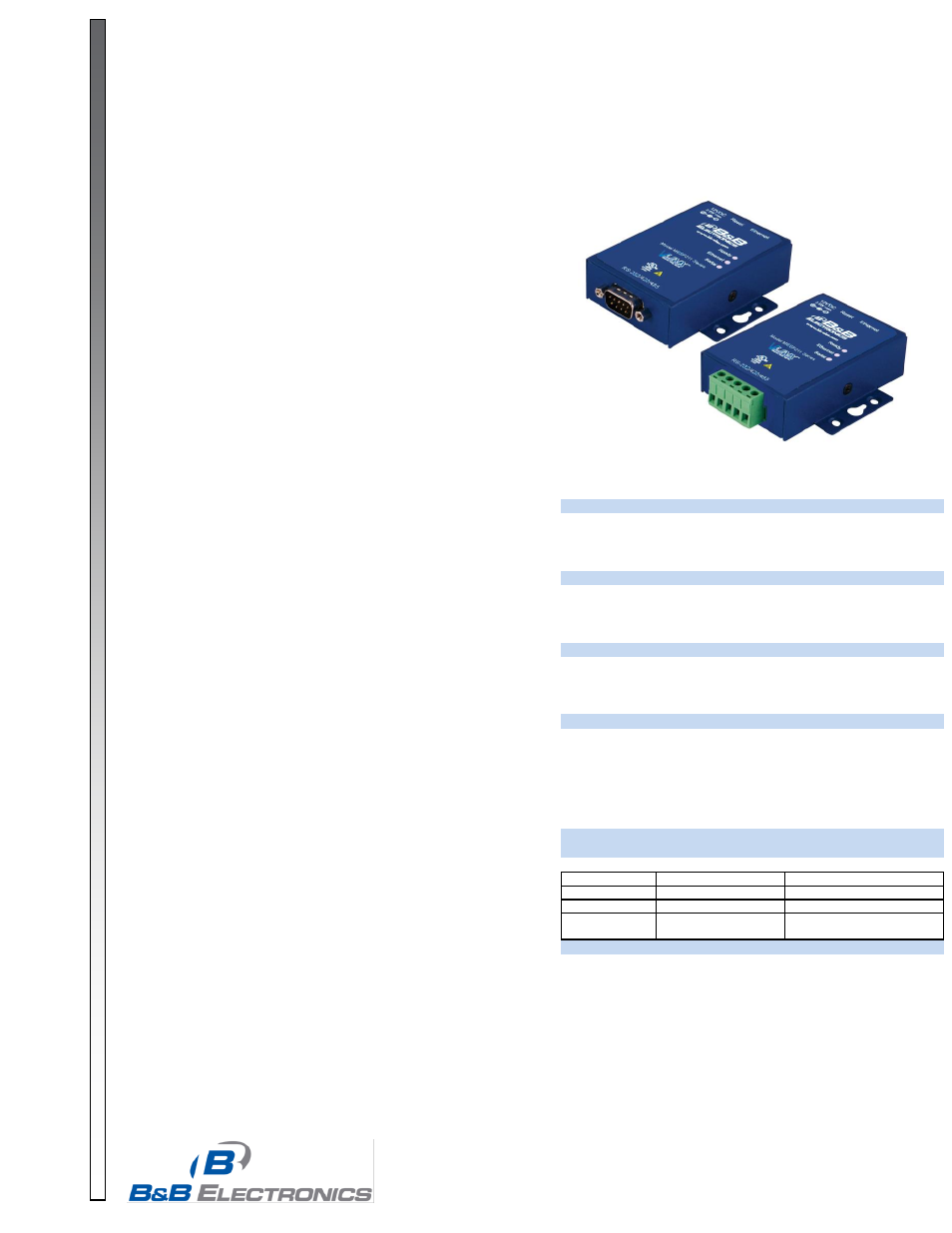

background image

pn710-08860-05_R1_MESP211_2713ds

© 2013 by B&B Electronics. All rights reserved.


www.bb-elec.com [email protected] [email protected]

International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104

European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

PR

O

D

U

C

T

INF

ORM

A

TIO

N

B

&

B

ELE

C

T

R

ON

ICS





































































Specifications

Power

Source

External power supply included

Input Voltage

10 to 30 VDC

Connector

Barrel connector 5.5 x 2.1mm

Power Consumption

2.5 W

Mechanical

LED Indicators

Serial Port, Ethernet Link, Ready LEDs

Switches

Reset Button

Dimensions

3.1 x 0.9 x 2.0 (with ears 2.89) inches

Enclosure

Metal, IP 30

Environmental

Operating Temperature -40 to 80°C (-40 to 176° F)
Operating Humidity

10 to 95% Non-condensing

MTBF

186,310 hours

MTBF Calc Method

Parts Count Reliability Prediction

Network

Serial Memory

8 KB per port

Network Memory

4 KB

IP Port Addresses

Setting in TCP Mode 8899

LAN

10/100 Mbps Auto-detecting , 10BaseT or
100BaseTX

Ethernet

IEEE 802.3 auto detecting & auto
MDI/MDX, 10BaseT and 100Base TX

Ordering Information

Model

MESP211D

MESP211T

Serial port

RS-232/422/485

RS-232/422/485

Serial connector

DB9 Male

Removable terminal block

Ethernet port

1

1

Ethernet

connector

RJ45

RJ45

Accessories

MDR-40-24

Din Rail Mount, 24VDC, 40 W

DRAD35

Din Rail Adapter Clip (pair)

232NM9

Null Modem Crossover Cable

TB5P508SR-2PK

Replacement terminal block for the
MESP211T

MESP211

Vlinx ™ Ultra Compact Modbus Gateways

Modbus TCP Ethernet, Modbus ASCII & RTU RS-232/422/485

Modbus Flexibility

– Serial & Ethernet, Masters & Slaves

View Messaging Status in Real Time

Wide Operating Temperature (-40 to 80C)

Wide Voltage input 10 to 30 VDC

Ultra Compact IP30 Metal Enclosure

Heavy industrial 61000-6-2 EMC Level 3 tested for harsh environments

Vlinx™ MESP211 series Modbus Gateways connect
Modbus devices to Ethernet networks and let you
monitor and control your Modbus devices from
anywhere on the Ethernet LAN or WAN. Supporting up
to 16 masters and 32 slaves, the gateways feature an
auto-detecting 10/100 Ethernet copper RJ-45 port and
a serial port that supports RS-232/422/485
communications via a DB9 male or a terminal block
connection. The product is built for use in industrial
environments, featuring a heavy duty metal enclosure
that is panel (standard) or DIN rail mountable (with
optional adapters). The product is supplied with a DC
power source ranging from 10 to 30VDC and features
a barrel connector.

Ease of Use

Configuration, upgrades and monitoring of the serial
server are simple, easy tasks with Vlinx Manager
Software. It installs right on your PC giving you access
the serial server via your desktop. Remotely manage
the Modbus Gateway over a LAN or WAN via the
build-in web server. This is helpful for off-site
troubleshooting and can be done with a simple web
browser.
