10/100 mbps managed multi-port
optical demarcation device
AccessEtherLinX/4
SpecificationS
EthErnEt typEs supportEd
IEEE 802.3i Ethernet 10Base-T
IEEE 802.3u Fast Ethernet
(100Base-TX and 100Base-FX)
Features Auto Negotiation and Selective Advertising
Supports Half and Full-Duplex operation
Includes bi-directional bandwidth control
Read/write IEEE 802.1Q VLAN-tags
QoS - IEEE 802.1p-based packet prioritization (two queues [high/low] with eight
priority levels)
Supports IGMP multicast pruning (v1/v2)
Layer 2 packet switching, store and forward operation
Includes LinkLoss and FiberAlert
Forwarding rate: 14,881 pps for 10 Mbps; 148,810pps for 100 Mbps
1024 MAC address learning
MTU: Supports over-sized packets
up to 1916 bytes
ManagEMEnt
Includes GUI-based iView² software
SNMP V1 and V2c compatible
Supports Telnet and RS-232 Craft
Managed through uplink
IEEE 802.3x compliant for Flow Control
Includes DHCP and TFTP clients for remote management and upgrades
Includes diagnostic LEDs
IMC MIB
Traps (Cold Start, Warm Start, Link Up, Link Down, Authentication Failure)
Link Status of Ports
Port Type
Fiber Type
User-Definable Name of Product
User-Definable ID/Name for Ports
Enable/Disable Ports
Enable/Disable FiberAlert
Set for Auto Negotiation/Selective Advertising
Force speed and Duplex Mode for twisted pair ports
MIB-II (RFC 1213)
Packets Transmitted
Packets Received
Octets (bytes) Transmitted
Octets (bytes) Received
Unicast Packets Transmitted
Unicast Packets Received
Non-Unicast Packets Transmitted
Non-Unicast Packets Received
Errors Received
Plus All Standard MIB II Objects
RMON StatIStICS
Drop Events
Collisions
Total Bytes
Total Packets
Fragments
Jabbers
Broadcast Packets
Multicast Packets
CRC Align Errors
Under & oversize Packets
Distribution of Frame Size
tRaNSMISSION DOt 3 (RFC1643)
Alignment Errors
Single Collision Frames
CRC Errors
SQE Test Errors
Late Collisions
Frame Too Long
Excessive Collisions
Deferred Transmissions
Multiple Collision Frames
MeChaNICal

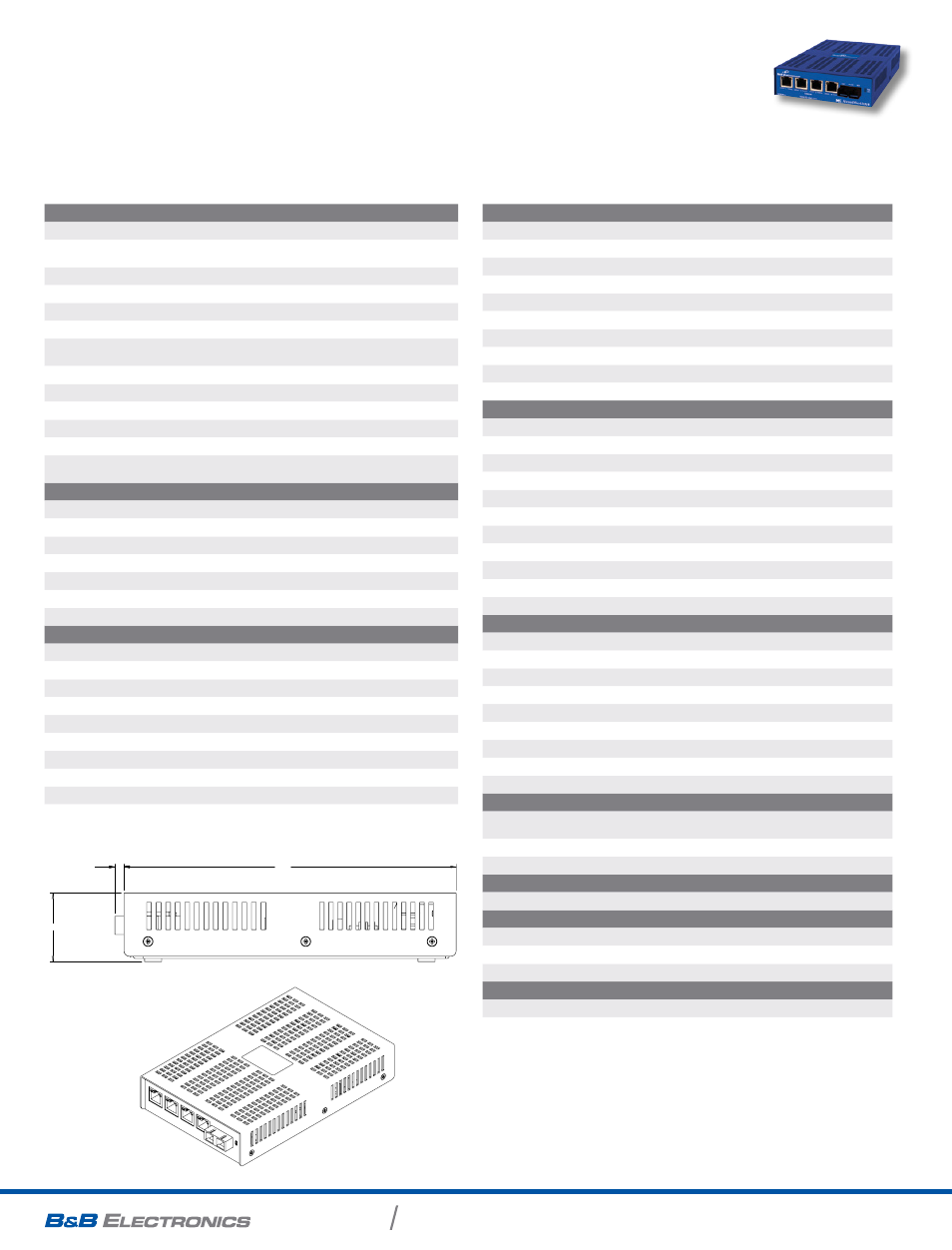

Dimensions
1.5” H x 4.75” W x 7.25” D
(3.18 cm x 12.07 cm x 18.42 cm)
Enclosure
Metal
Shipping Weight
1.6 lbs. (0.6 kg)
POweR RatINg
100-240 VAC, 50/60Hz, 1.0A
eNvIRONMeNtal
Operating Temperature
+32° to +122° F (0° to +50° C)
Storage Temperature
-13° to +158° F (-25° to +70° C)
Operating Humidity
5 to 95% Non-condensing
RegulatORy aPPROvalS
FCC Class A
UL/cUL, CSA, CE
1.50
7.30
.20
