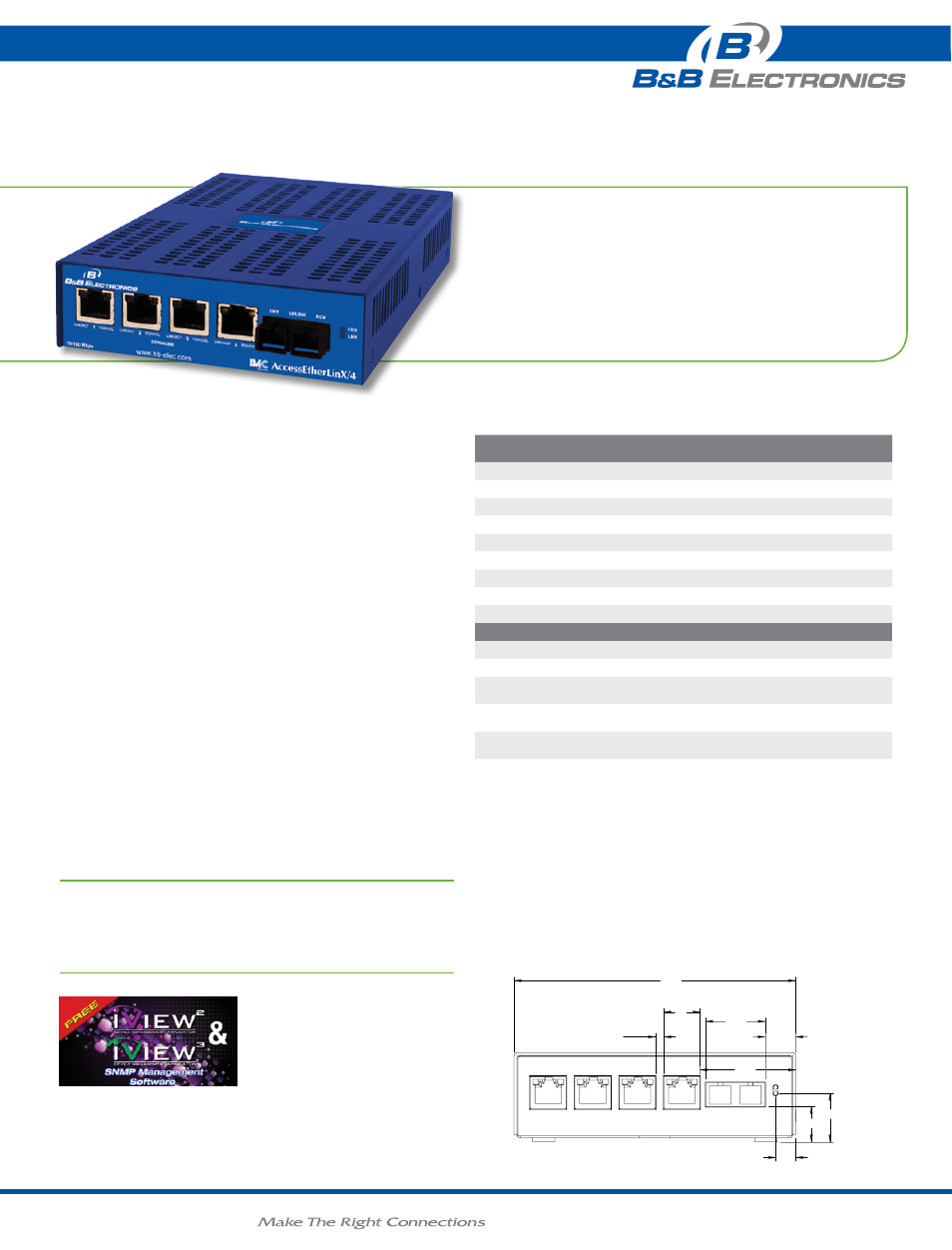

The AccessEtherLinX/4 enables service providers to offer differentiated,
“Transparent LAN” services to multi-tenant building and business
customers. Residing at the customer premises, the AccessEtherLinX/4
provides a VLAN-based, Layer 2 entry point to the last mile fiber
network, trunking, differentiating and separating customer traffic.
Featuring SNMP management, 802.1Q VLAN, 802.1p QoS, traffic
prioritization, bandwidth control and multicast pruning/snooping (using
IGMP v1, v2), the AccessEtherLinX/4 is perfect for a wide range of Fiber
to-the-Home, Fiber-to-the-Curb and Fiber-to-the-Business (collectively
“FTTx”) services, and is an ideal solution for delivering those Ethernet
based services to customers quickly and cost-effectively. Designed
with a small footprint, the AccessEtherLinX/4 facilitates easy
installation inside the premises.
Bandwidth control and 802.1Q VLAN compatibility built-in:
The AccessEtherLinX/4 accepts traffic containing VLAN tags on the
Uplink port and directs traffic to the twisted pair downlink ports or
to management based on VLAN ID. In addition to assigning 802.1Q
VLAN-tags on a per-port basis, priority can be defined for each port and
SNMP tag; traffic is divided into a hi/low level for packet prioritization
in the queue. The AccessEtherLinX/4 also includes bi-directional
bandwidth control, and supports IGMP multicast pruning to ensure the
necessary amount of IP multicast packets are bridged.
• Independent RJ45 ports for flexible configuration
• SNMP Manageable
• Read/Write IEEE 802.1Q VLAN-tags
• Bi-directional Bandwidth control
• Linkloss and FiberAlert
• Selective Advertising
product FEaturEs
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
accessetherlinx/4
852-13120 100m 5 RJ45
852-13121 MM1300-ST 1 5 km 4 RJ45
852-13122 MM1300-SC 1 5 km 4 RJ45
852-13123 SM1310/PLUS-ST 1 40 km 4 RJ45
852-13124 SM1310/PLUS-SC 1 40 km 4 RJ45
852-13125 SM1310/LONG-ST 1 80 km 4 RJ45
852-13126 SM1310/LONG-SC 1 80 km 4 RJ45
852-13127 SM1550/LONG-SC 1 80 km 4 RJ45
single strand FiBer *
852-10133 SSFX-SM1310-SC 1 20 km 4 RJ45
852-10134 SSFX-SM1550-SC 1 20 km 4 RJ45
852-10135 SSFX-SM1310/
PLUS-SC
1 40 km 4 RJ45
852-10136 SSFX-SM1550/
PLUS-SC
1 40 km 4 RJ45
852-10137 SSFX-SM1310/
LONG-SC
1 60 km 4 RJ45
852-10138 SSFX-SM1550/
LONG-SC
1 60 km 4 RJ45
10/100 mbps managed multi-port optical
demarcation device
AccessEtherLinX/4
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
AccessEtherLinX/4 also available in CWDM Fiber.
Call for details.
mEchanIcal dIagram
.51
.34
.82
.60
1.00
1.61
3X, .14
.61
4X
4.74
accEssorIEs
895-39226 - Rackmount Bracket
895-39949 - Rackmount Shelf
(dimensions in inches)
iView: Windows 2000/XP/Vista/Win7
AccessEtherLinX/4_3713ds
