THE INDUSTRIAL NETWORK COMPANY

The

N-TRON

®

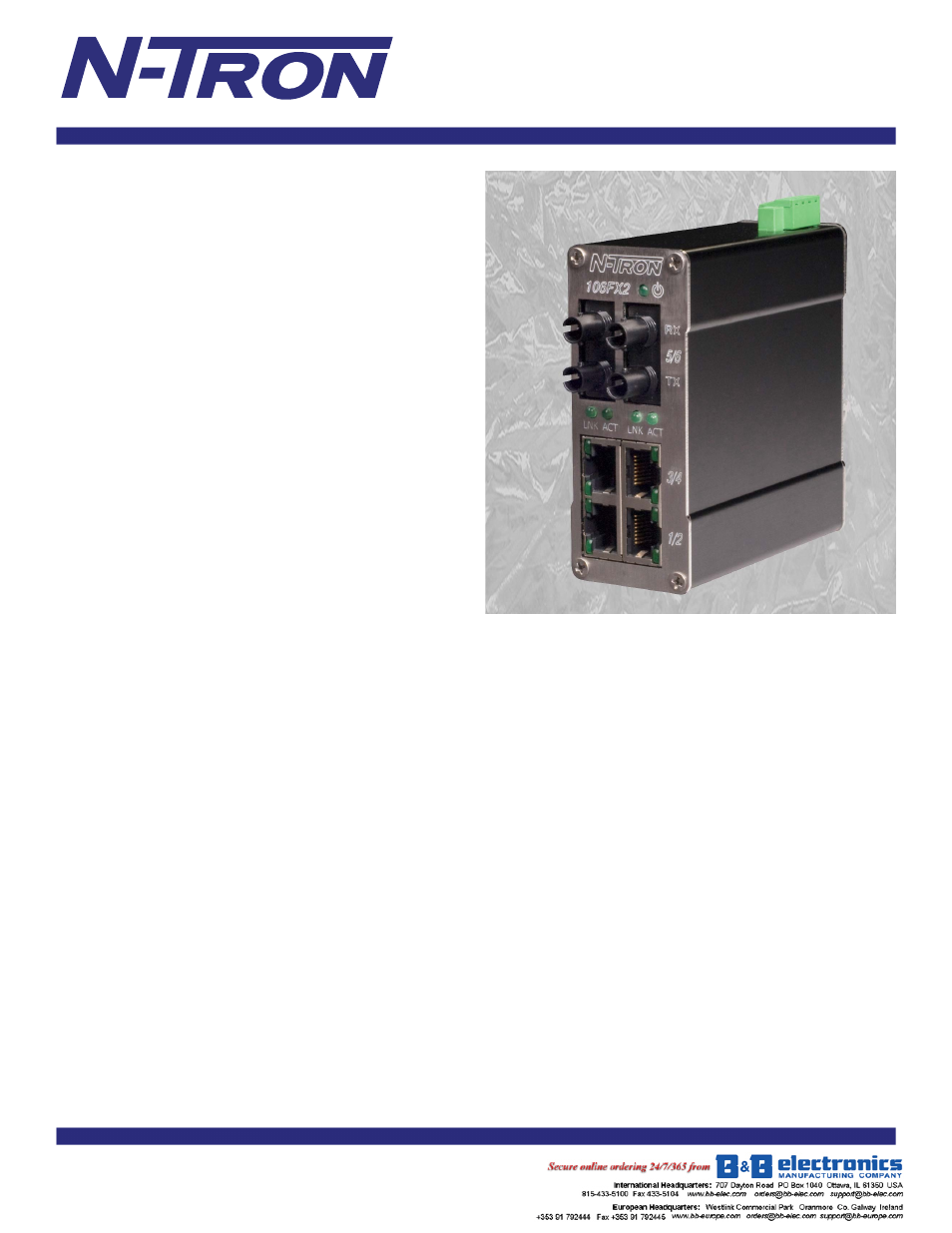

106FX2

is a low cost, unmanaged

s i x p o r t I n d u s t r i a l E t h e r n e t S w i t c h . I t i s
h o u s e d i n a h a r d e n e d , m e t a l , D I N - R a i l
enclosure, and is designed for use in industrial data
acquisition, control, and Ethernet I/O applications.

PRODUCT FEATURES

• Compact Size, Small Footprint

Unmanaged

Operation

• Full IEEE 802.3 Compliance
• Four 10/100BaseTX RJ-45 Ports
• Two 100BaseFX Ports with ST or SC Connectors
• Extended Environmental Specifi cations
• -40ºC to 70ºC Operating Temperature
• >2M Hours MTBF
• RJ-45 Ports Support Full/Half Duplex Operation
• Auto Sensing Duplex, Speed, and MDIX (RJ-45)
• Up to 1.2 Gb/s Maximum Throughput

Store-and-forward

Technology

• LED Link/Activity Status Indication
• Redundant Power Inputs (10-30 VDC)
• Hardened Metal DIN-Rail Enclosure

PRODUCT OVERVIEW
The

106FX2

Industrial Network Switch is

d e s i g n e d t o s o l v e t h e m o s t d e m a n d i n g
industrial communications requirements while
providing high throughput and minimum downtime.

The

106FX2

provides four RJ-45 auto sensing

10/100BaseTX ports, plus two fiber based Fast
Ethernet uplink ports. All TX ports are full/half duplex
capable, using "state of the art" Ethernet switching
technology. The

106FX2

auto-negotiates the speed

and flow control capabilities of the four TX port
connections, and confi gures itself automatically. The
two fiber ports are 100BaseFX fiber optic uplinks
utilizing industry standard ST or SC duplex connectors.

Since the TX ports of the

106FX2

are auto

s e n s i n g , t h e r e w i l l b e n o n e e d t o m a k e
extensive wiring changes if upgrades are made to
the host computers, plant systems, or Ethernet I/O
modules. The switching fabric simply scales up or down
automatically to match your specifi c network environment.

The

106FX2

supports up to 2,000 MAC addresses,

thus enabling these products to support extremely
sophisticated and complex network architectures.

The

N-TRON 106FX2

is an ideal candidate for

u p g r a d i n g e x i s t i n g h u b s a n d r e p e a t e r s t o
increase bandwidth and determinism by virtually
eliminating network collisions. The product also keeps
the network affordable, while maintaining the plug
& play simplicity of a unmanaged hub. The

106FX2

can simplify plant wiring by eliminating the need
to bring data acquisition and control network con-
nections back to a climate controlled environment.

The

106FX2

has extended operating environmental

specifi cations to meet the harsh needs of the industrial
environment. For cost savings and convenience the

106FX2

can be DIN-Rail mounted alongside Ethernet

I/O or other industrial equipment. The unique compact
size provides a small footprint, conserving space in the
most critical dimension.

To increase reliability, the

106FX2

contains redundant

power inputs. LEDs are provided to display the link
status and activity of each port, as well as power on/
off status.

106FX2
