managed hardened 10/100BAse-tx
ethernet extender
EIRM-EXTEND
sPecIFIcAtIons
technology
Standards
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX,
IEEE802.3x, Ethernet over VDSL
Protocols Transparent to higher layer protocols
Flow Control
Half-duplex back-pressure and IEEE802.3x Full-duplex
fl ow control
ethernet Port
RJ45 Ports
One Ethernet 10/100BASE-TX Full/Half-duplex Auto-
Negotiation, Auto-MDI/MDIX
RJ45 Distance 100 meters (328 ft.)
LED Indicators LNK/ACT, Duplex
ethernet Vdsl extender Port
Port One RJ-11 and Terminal Block Port
Speed 1/3/5/10/15/20/25/30/40/50Mbps
Distance 1900meters (6,232 ft.)
Cable
24 AWG (0.5mm diameter, (pair wire)
or larger100 Ohm impedance
console Port
Port One DB9 RS232 port
Power
Input Voltage 12 to 32VDC
Power Use 5.76W Max. 0.48A@12VDC, 0.24A@24VDC
Input Connection (Terminal Block);12VDC (DC Jack)
Protection Reverse Polarity Protection
enVironMental
Operating Temperature:
-40°C to 75°C
(-40°F to 167°F)
Tested @ -40°C to 85°C
(-40°F to 185°F)
Storage Temperature
-40°C to 85°C
(-40°F to 185°F)
Operating Humidity 5% to 95% (non-condensing)
MTBF 844,028.71

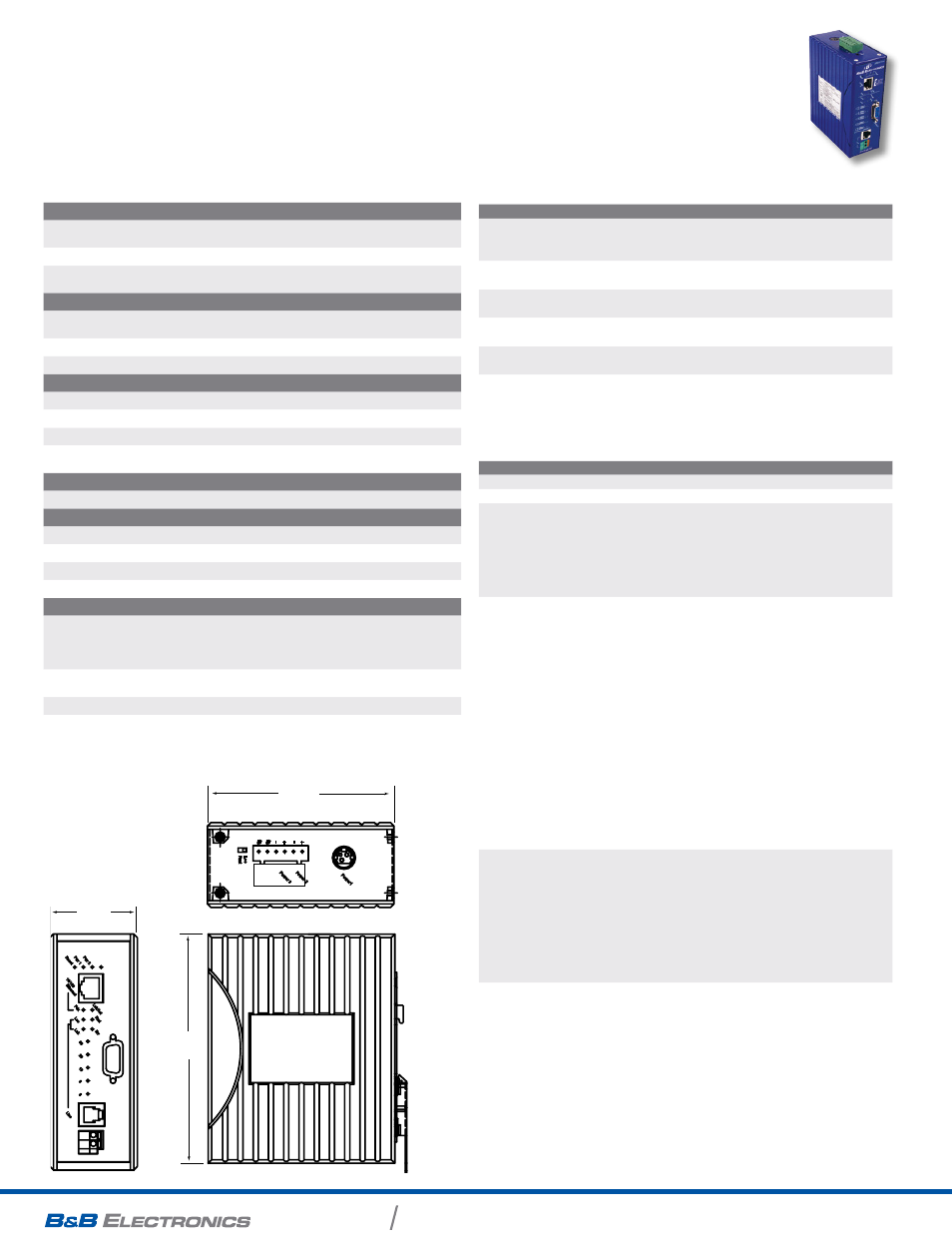

mechAnIcAl dIAgrAm
Eth
ern
et
10/1
00
Pw
r 2
Pw
r 1
Re
set
Lnk
/Ac
t Rm
t
Fdx
Loc
Lnk
Err
30
20
10
3
Lin
e
3
GN
D
D
Pow
er1
Pow
er 2
Pow
er 3
+ + - -
Lo
c
R m
t
13.5 cm
5.31
5.0 cm
1.97 in
11.0 cm
4.33 in
led chart
leds status speed distance
1
Green 1 Mbps 1,900m (6,232 ft.)
Amber 3 Mbps 1,800m (5,904 ft.)
2
Green 5 Mbps 1,600m (5,249 ft.)
Amber 10 Mbps 1,400m (4,593 ft.)
3
Green 15 Mbps 1,200m (3,936 ft.)
Amber 20 Mbps 1,000m (3,280 ft.)
4
Green 25 Mbps 800m (2,642 ft.)
Amber 30 Mbps 700m (2,296 ft.)
5
Green 40 Mbps 600m (1,968 ft.)
Amber 50 Mbps 300m (984 ft.)
Per Input: Power Status LED
Per Port: 10/100TX: Link/Activity, Full-duplex
Line: Error, Link, Local, Remote
Note: All speed selections are Symmetrical on the DSL and Full-duplex on the
Ethernet.
regulatory aPProVals
ISO Manufactured in an ISO9001 facility
Safety UL508
EMI
• FCC Part 15, Class A
• VCCI, Class A
• EN61000-6-4
• EN55022
• EN61000-3-2
• EN61000-3-3
EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
- Contact: + / - 4KV; Criteria B
- Air: + / - 8KV; Criteria B
• EN61000-4-3 (Radiated RFI Standards)
- 10V/m, 80 to 3000MHz; 80% AM Criteria A
• EN61000-4-4 (Burst Standards)
- Signal Ports: + / - 4KV; Criteria B
- D.C. Power Ports: + / - 4KV; Criteria B
• EN61000-4-5 (Surge Standards)
- Signal Ports: + / - 1KV; Line-to-Line; Criteria B
- D.C. Power Ports: + / - 0.5KV; Line-to-earth; Criteria B
• EN61000-4-6 (Induced RFI Standards)
- Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
Criteria A
- D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
Criteria A
• EN61000-4-8 (Magnetic Field Standards)
- 30A/m @ 50, 60Hz; Criteria A
Environmental
Test Compliance
• IEC60068-2-6 Fc (Vibration Resistance)
- 5g @ 10 - 150Hz, Amplitude 0.35mm
(Operation/Storage/Transport)
• IEC60068-2-27 Ea (Shock)
- 25g @ 11ms (Half-Sine Shock Pulse; Operation)
- 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
• IEC60068-2-32 Ed (Free Fall)
- 1M (3.281ft.)
• NEMA TS1/2 Environmental requirements for Traffic
control equipment
