managed hardened 10/100BAse-tx
ethernet extender
EIRM-EXTEND
managed hardened 10/100BAse-tx
ethernet extender
EIRM-EXTEND

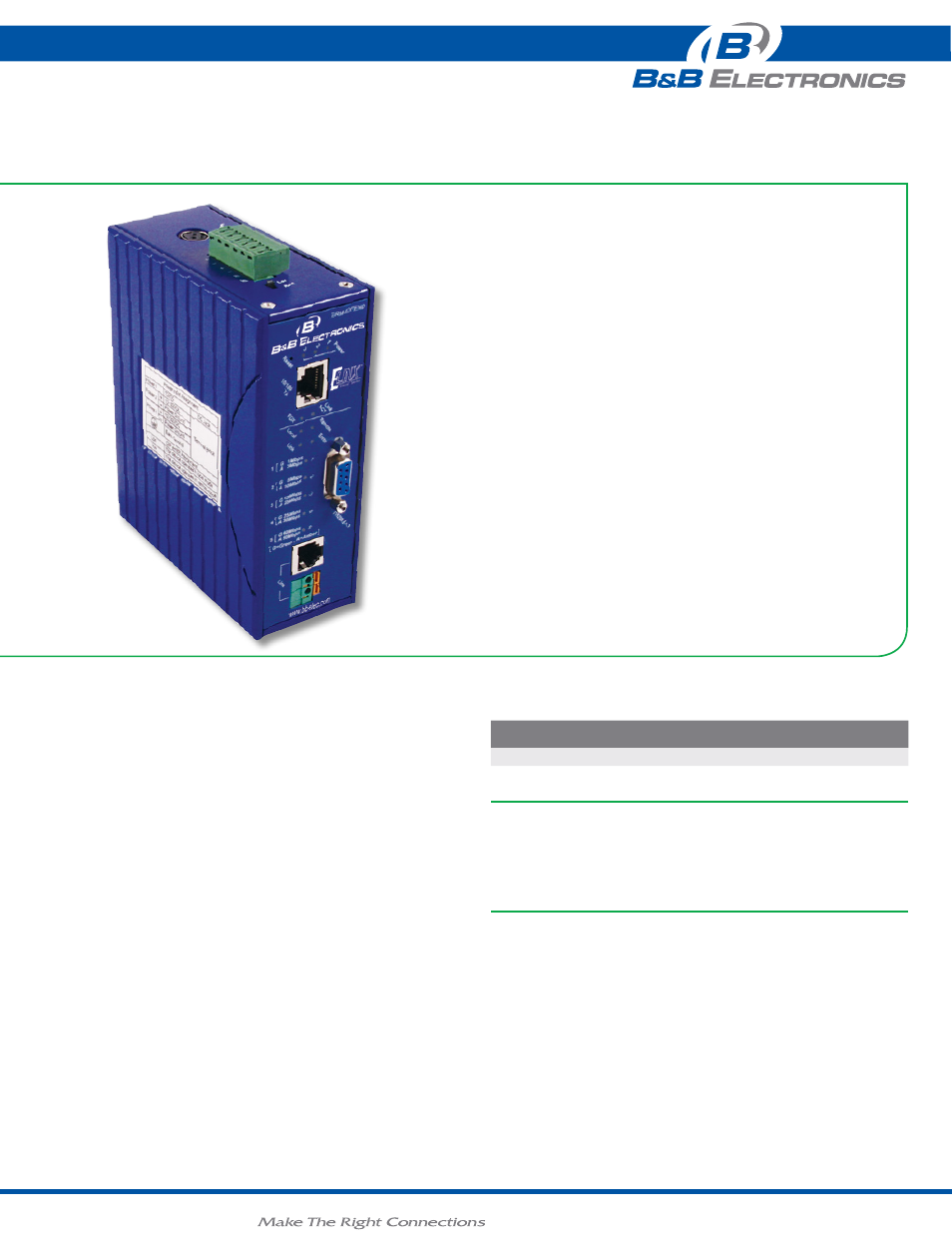

B&B Electronics’ Industrial Hardened EIRM-EXTEND is a point-to-point
Managed Ethernet Extender designed to operate in harsh environments. It
efficiently extends 10/100 Ethernet circuits to over 300 meters (984 feet)
at 50Mbps using existing cross-over pair copper wire.
The EIRM-EXTEND allows Ethernet connectivity in existing facilities over
existing voice grade copper wire – no pulling extra cable. This is the
perfect solution to Ethernet on the factory floor where systems have been
upgraded from slower serial communications to Ethernet networking.
The EIRM-EXTEND is used in pairs. Installation is easy with a single switch
setting; one end is set for local and the other remote. The EIRM-EXTEND
also provides several advanced functions such as System, SNMP, F/W
upgrade, and Load Default setting through the Web based browser to
enhance total networking performance.
Product FeAtures
orderIng InFormAtIon
Model
nuMBer
ethernet
Ports
Max
distance
Max
sPeed
Vdsl Ports
EIRM-EXTEND 1 1900m 50 Mbps RJ-11 and Terminal Block
AccessorIes
PS12VDC3P - Hardened AC Power Supply, 12VDC, 36W, 3A, 90-264VAC input, DC jack
MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
C5UMB3FBG - 3 ft. (1 M) - Beige - Category 5e UTP Patch Cord
• Extends Ethernet communications up to 1900 meters
• Complies with NEMA TS1 & TS2 environmental requirements for
traffic control equipment
• Complies with IEC61000-6-2 EMC generic standard immunity for
industrial environments
• Supports SNMP management and monitoring of connected devices.
• Operates transparent to higher layer protocols such as TCP/IP
• Ethernet port: 10/100Mbps-Full/Half-duplex, Auto-Negotiation,
Auto-MDI/MDIX
• Ethernet extender (RJ-11 and Terminal Block) ports
• Supports DIN rail panel rack mounting installation
• Ten communications speeds with speed indicator LEDs on front
panel of unit. From 50Mbps@about 300 meters (984 ft.) to 1Mbps@
about 1,900 meters (6,232 ft.)
• Supports external hardware watch dog
• Supports web, CLI, SNMP management interface
• Link status (for VDSL, Ethernet),
• Redundant power inputs: 12 to 32VDC (terminal block);12VDC
(DC jack)
• -40°C to 75°C (-40°F to 167°F) operating temperature range
• Hardened IP30 aluminum case; DIN or panel mount
EIRM-EXTEND_3713ds
