MES1x-2106ds - 1/4

International Headquarters: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA

815-433-5100 Fax 433-5104 www.bb-elec.com [email protected] [email protected]

European Headquarters: Westlink Commercial Park Oranmore Co. Galway Ireland

+353 91 792444 Fax +353 91 792445 www.bb-europe.com [email protected] [email protected]

PRODUCT INFORMATION

B&B ELECTRONICS

Models: MES1A, MES1B

Ethernet Enable Modbus Serial

Ports on Industrial Equipment

with Modbus Ethernet Serial Servers


MES1A

MES1B

Features

Converts Modbus ASCII/RTU to Modbus/TCP

Small, economical and configurable

Modbus Master and Modbus Slave operation

DIN rail & panel mount options

Connection of up to 32 serial modbus devices (MES1B)

CE approved

MES1A and MES1B Modbus TCP to Modbus ASCII/RTU converters are easy-to-use, cost-effective solutions for connecting new
and existing Modbus ASCII/RTU serial devices to TCP/IP networks. The MES1A provides this connection for Modbus devices
with RS-232 interfaces; the MES1B facilitates Modbus devices with RS-422 four-wire point-to-point interfaces, or RS-485 four or
two-wire multi-drop bus connections.

MES1A and MES1B are flexible devices that allow for many different modbus network configurations.

1.

Modbus ASCII/RTU slave devices can communicate over a TCP/IP network to Modbus TCP/IP masters.

2.

Modbus ASCII/RTU master devices can communicate over TCP/IP networks to modbus ASCII/RTU master devices

3.

Modbus ASCII/RTU slave devices can communicate over a TCP/IP network to other modbus ASCII/RTU devices.

In this mode 2 devices are required to allow the modbus serial protocol to tunnel over a TCP/IP network.


Through the use of both panel and DIN rail mounting options and support for screw terminal block interfaces for both power and
serial, MES1B is designed to meet a variety of industrial applications.

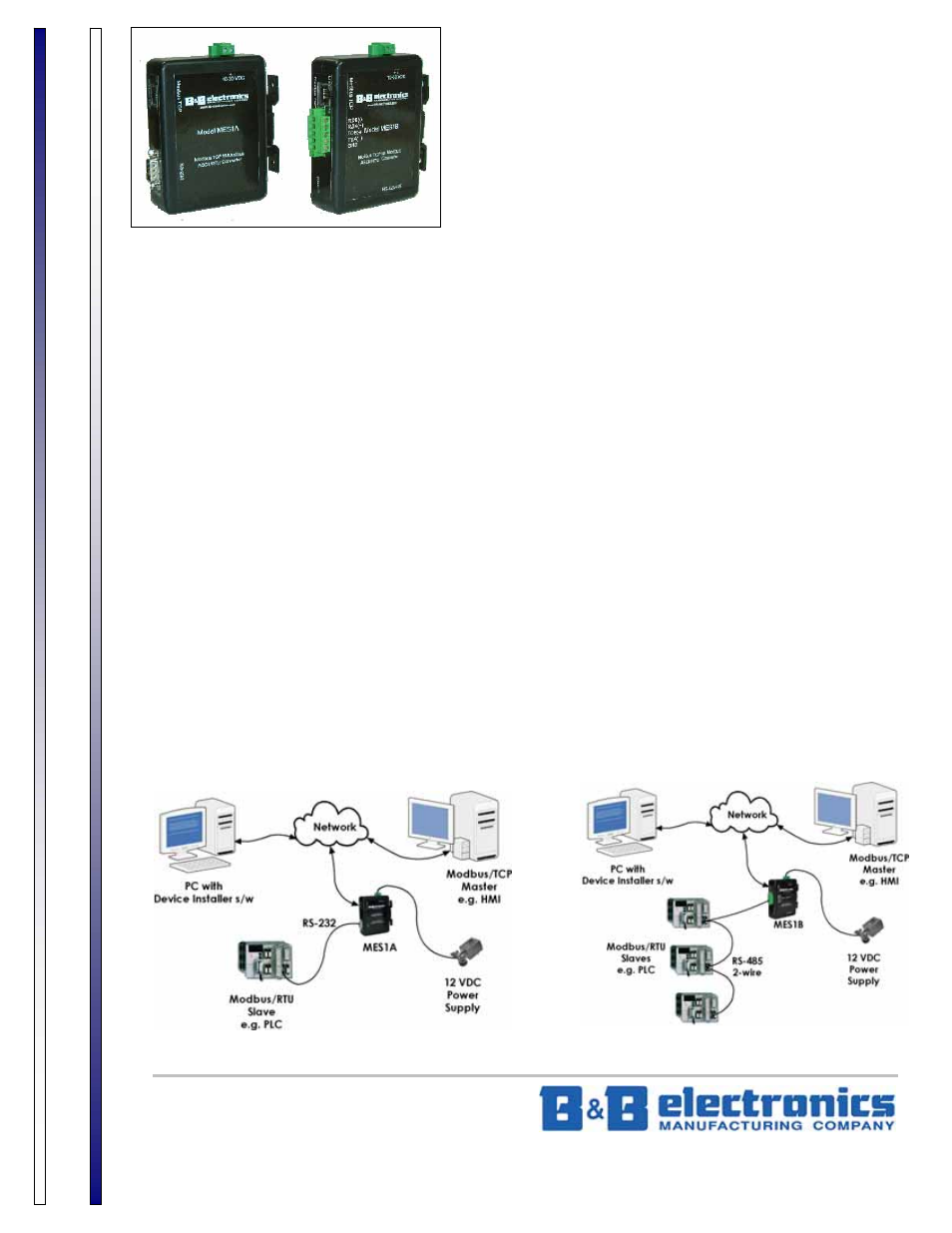

Typical Network Configurations
