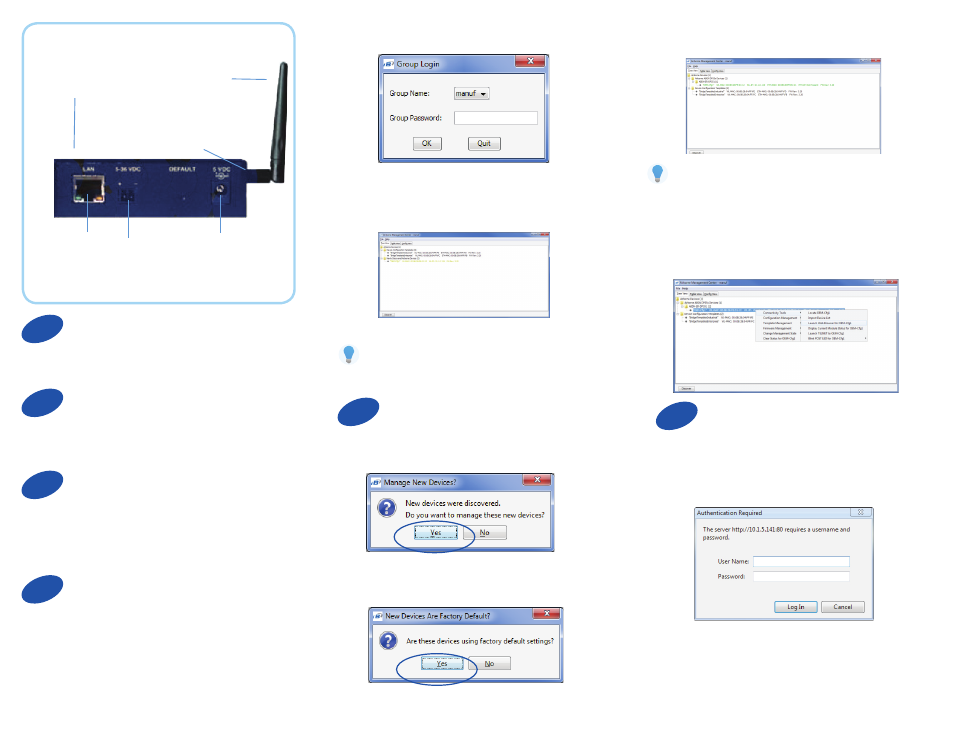

AMC will display the found Airborne device(s):
Connect Ethernet
Attach the Antenna
Note: You may be required to wait up to 180
seconds before the device is discovered and
displayed.
Connect the Antenna to the antenna connector located
on the side of the device.
LAN
Port
Run the Airborne Management Center (AMC) application.
If you don’t currently have AMC installed, you can install it
from the included CD or download and install it from the
B&B website. Just search for the model number and follow
the links to download software from the Downloads section
of the product page
Connect Power Supply
Product Overview
Power
Port
When AMC starts, it will request a login:
Select Group Name: “manuf” and enter Group
Password: “dpac”
AMC will load and discover the attached device:
Connect to the Device 4
Right click the device’s name. Under “Connectivity Tools”
choose “launch Web browser for OEM-Cfg1.” This will
open the device’s browser-based management window.
Login to web interface:
Username “dpac”
Password: “dpac”
Antenna
LEDs
Connect a CAT5 Ethernet cable between the device and
an Ethernet port on a host computer.
Connect the 5-36 VDC terminal block attachment or
use the AC power supply (optional). Alternatively, the
IN50x8 models support PoE and can be powered by a
PSE device supporting 802.3af, Class 1.
5
AMC will ask if you want to manage the new device,
select ‘Yes’:
Manage Your Device
Select ‘Yes’ to indicate device is using Factory Default
settings:
6 Configure Your Device
Continue configuration via the Web interface. Start
with the Configuration -> Express Setup page.
Continued on the next page...
Antenna
Port
Detachable
Terminal Block
Tip: To easily convert a Direct Ethernet device to
a bridge, use the Bridge Templates in AMC. For
additional information, search the B&B Knowledge
base for “bridge templates”.
