ultra compact
Ethernet serial servers
VESP211 Series
SpecificationS
Serial Technology
RS-232 (DB9)
TD, RD, DTR, DSR, RTS, CTS, DCD plus
Signal Ground
RS-485 2-Wire Data A(-), Data B(+), GND
RS-422/485 4-Wire TDA(-), TDB(+), RDA(-), RDB(+), GND
Serial Connector RS-422
DB9M or Removable Terminal Blocks
(RS-422/485 models)
Data Rate Up to 230.4 Kbps
Power
Source Power supply included
Input Voltage 10 to 30 VDC
Connector Power Connector 5.5 X 2.1 mm
Power Consumption 2.5 Watts Max.
Mechanical
LED Indicators Serial Port, Ethernet, Ready LED’s
Switches Reset Button
Dimensions
VESP211 - 7.938 x 5.257 x 2.209 cm
(3.125 x 2.070 x 0.870 in)
Enclosure Metal, IP 30
environMenTal
Operating Temperature -40 to 80°C (-40 to 176°F)
Operating Humidity 10 to 95% Non-condensing
MTBF VESP211 – 186,310 hours
MTBF Calc Method Parts Count Reliability Prediction
neTworK
Serial Memory 8 KB per port
Network Memory 4 KB
LAN
10/100 Mbps Auto-detecting, 10BaseT or
100BaseTX
Ethernet
IEEE 802.3 auto detecting & auto MDI/MDI-X,
10BaseT and 100Base TX
Protocols
Protocols
TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING,
DHCP/BOOTP
IP Mode Static, DHCP
TCP/UDP
UDP
User definable
Unicast or Multicast
other
Connection Mode Server, Client, VCOM, Paired
Client Connection At power up or upon data arrival
Search
Serial direct COM and Ethernet Auto Search or
specific IP
Diagnostics Display PC IP, ping, test VCOM
Firmware Upgrade Vlinx Manager
configuration software
Vlinx Manager
Windows XP (32/64 bit), 2003 Server (32/64
bit), Vista (32/64 bit), 2008 Server (32/64 bit),
Windows 7 (32/64 bit)
regulatory / certifications / safety
Compliance FCC Part 15 Class A, CE
EMC
Industrial-Hardened, 15,000 volt-protected,
61000-6-2 certified switch
UL 60950
7.938 cm
3.125 in
5.257 cm
2.070 in
2.209cm
0.870 in

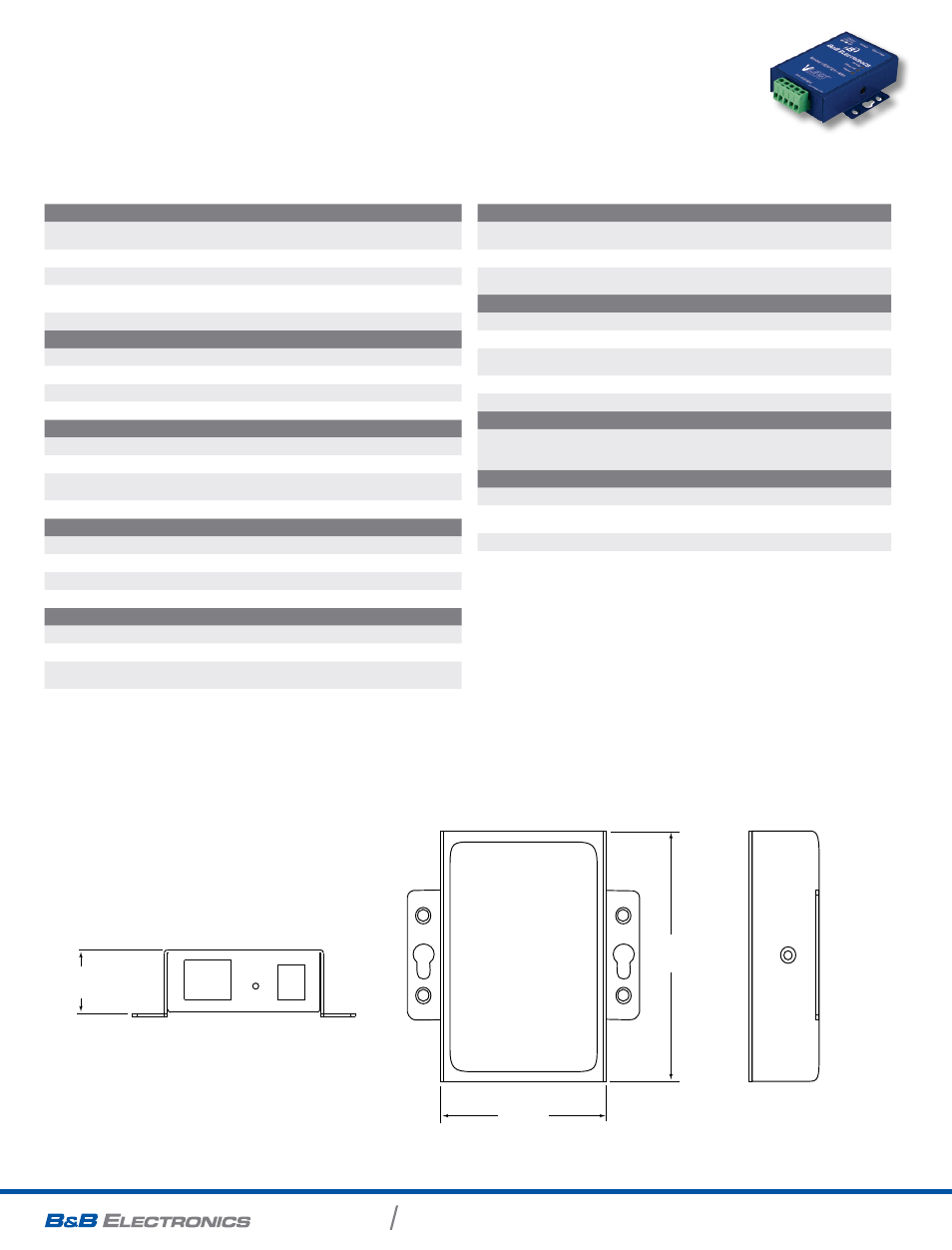

mEchanIcal dIagram
