Powering the IE-ModeConverter
The IE-ModeConverter requires an external DC power source and has two options
for powering as follows:
• A country-specific, AC to DC power adapter (included).
• User supplied LPS DC power via a four-position DC power block.
For extended temperature operation the DC terminal block must be used because
the supplied AC to DC converter is not rated for extended temperature operation.
The power source used with the DC terminal block should be a Limited Power
Source (LPS).

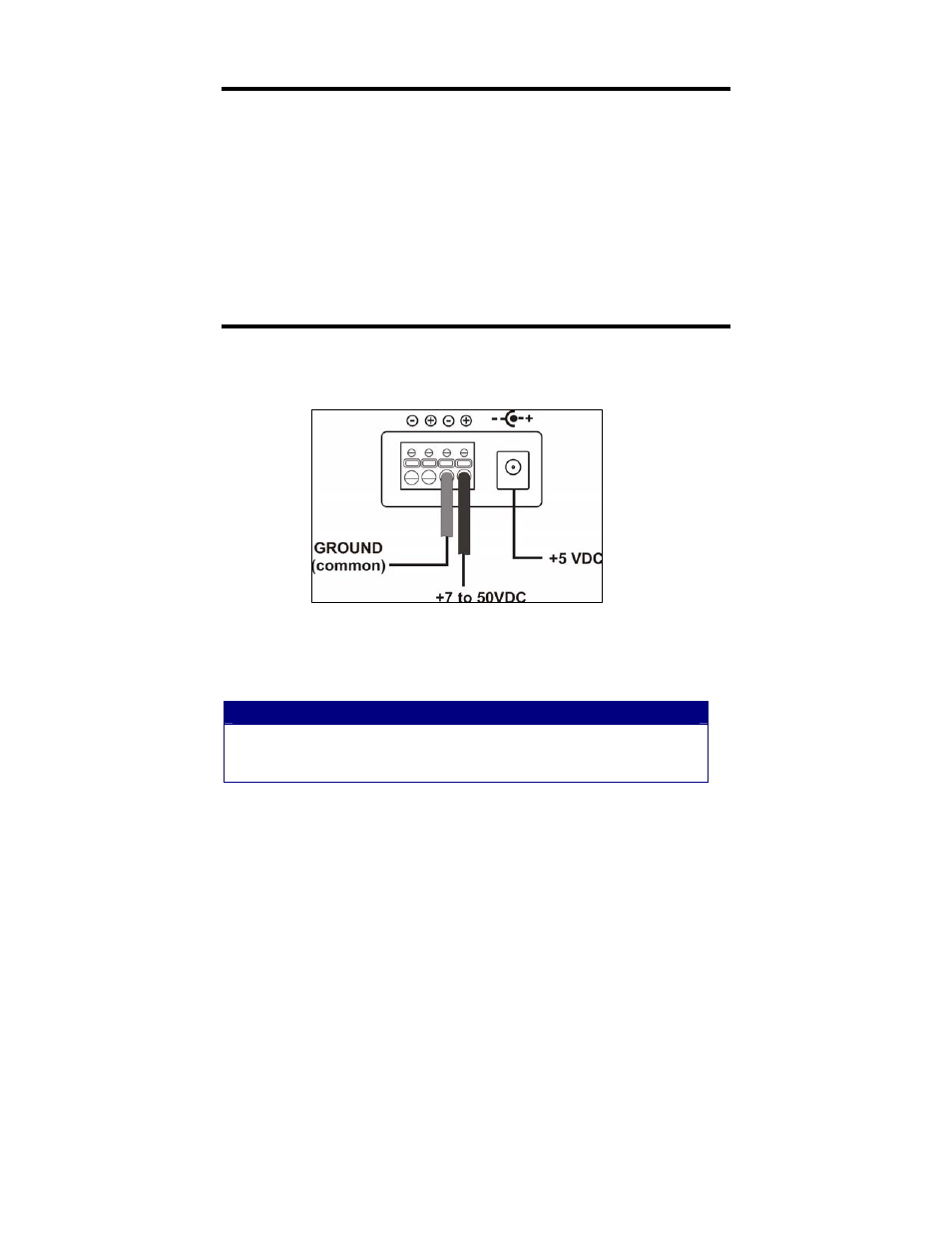

DC Terminal Block Option
The IE-ModeConverter DC power option includes a 7VDC to 50VDC terminal block
with a standard +5VDC mini-jack. The DC terminal block has redundant DC inputs
intended for cascading DC power to an adjacent unit.
Connect the power source to any one positive and one negative terminal on the IE-
ModeConverter.
NOTE
When using stranded wire, the leads must be tinned. The chassis is not
protected against mis-wiring; if mis-wired the chassis will not function. The
chassis is internally connected to the negative power terminal.
