8 Port gigabit Industrial
ethernet switch
EIR408-T
sPecIFIcAtIons
ieee standards
IEEE 802.3 802.3. 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control and Back Pressure
network sPeciFications
Architecture
Back-plane (Switching Fabric): 10Gbps
Throughput (Full-dux): 14.88Mpps@64bytes
Transmission Speed Up to 1000 Mbps
Buffer 136 Kbits
MAC Table 8K
Jumbo Frame 9.6Kbytes
Other Broadcast Storm Protection
interFace
RJ-45 Ports 8 x 10/100/1000BaseT, Auto MDI/MDI-X
LED Indicators
P1 (Power 1), P2 (Power 2), Fault (Power Fault), RJ-45
Ports have 2 LED’s to indicate LINK and activity
Power
Input Voltage
Dual 12 to 48 VDC Inputs
Reverse Polarity Protection
Power Connection Removable Terminal Block
Wire Size 12 to 24 AWG
Power Use 7.788 Watts
Fault Output 1 Relay Output – Normally Closed
EFT Protection 3000 V EFT Protection
enVironMental
Operating Temperature - 40 to 75°C (-40 to 167°F)
Storage Temperature - 40 to 85°C (-40 to 185°F)
Operating Humidity 0 to 95%
Mechanical
Enclosure IP30 Metal Enclosure
Mounting 35mm DIN Rail or Panel Mount Attachments
Dimensions 3.0 x 14.0 x 9.5 cm (1.18 x 5.51 x 3.74 in)
certiFications
Safety CE EN60950-1
Hazardous Location UL/cUL Class I, Division 2, Groups A, B, C and D
EMC
FCC Class A,
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-6-2
CE EN61000-6-4
Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration IEC60068-2-6
NEMA TS2

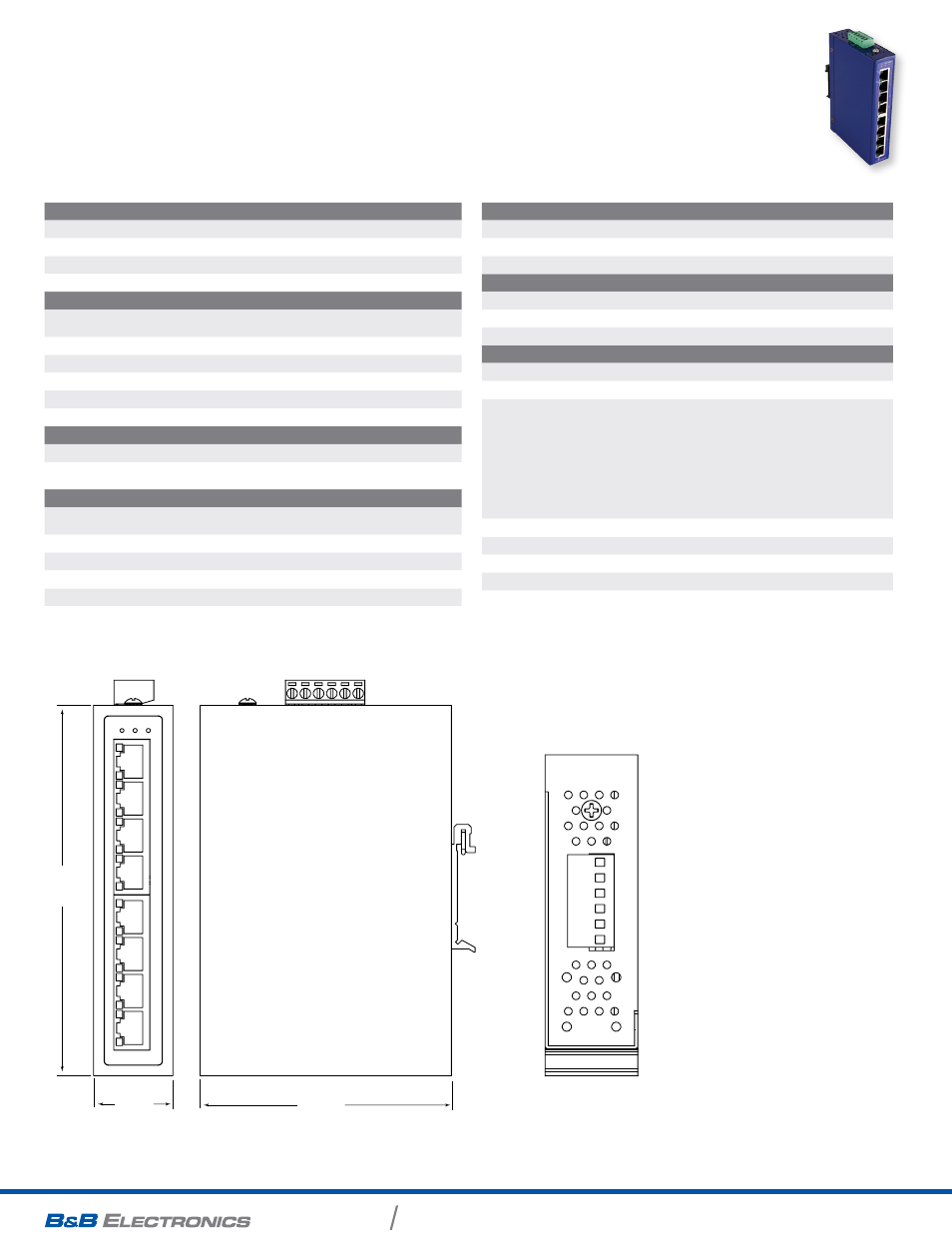

mechAnIcAl dIAgrAm
14.0 cm
5.51 in
3.00 cm
1.18 in
9.50 cm
3.74 in
