(Revised 2010-2-24) Page 88 of 153
N-Ring – Status, Continued…

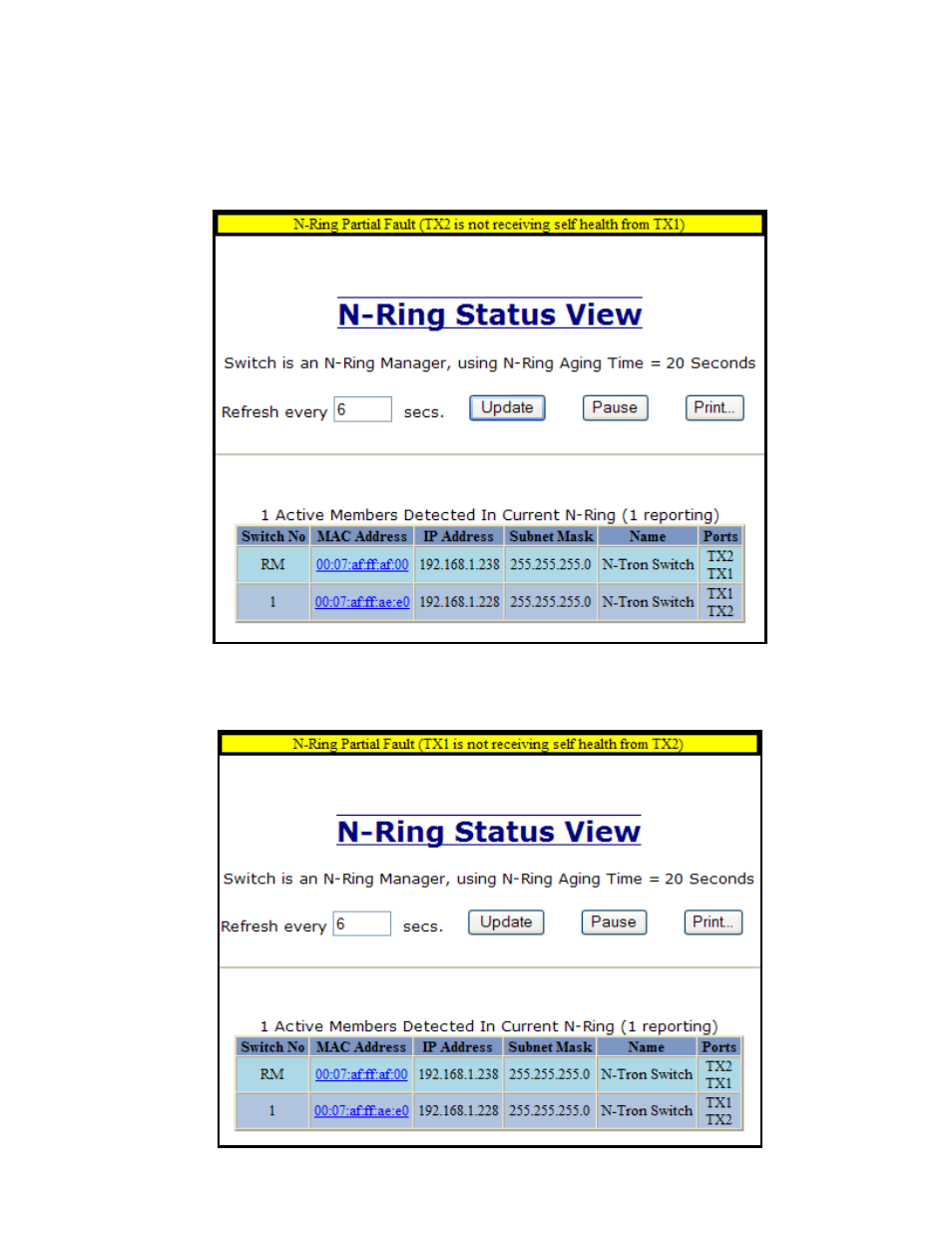

In rare cases an N-Ring can have a “Partial Fault”. An example of this is to have a break in just one fiber in
a duplex channel fiber pair. The screenshot below shows N-Ring Manager Status when a ‘Higher’ N-Ring
Port (TX2, TX8) is not receiving self health frames all the way around the N-Ring, though the other (low
TX1, TX7) N-Ring port is:
The screenshot below shows N-Ring Manager Status when a ‘Lower’ N-Ring Port (TX1, TX7) is not
receiving self health frames all the way around the N-Ring, though the other (high TX2 , TX8) N-Ring port
is:
