(Revised 2010-2-24)

Page 105 of 153

LogicalView

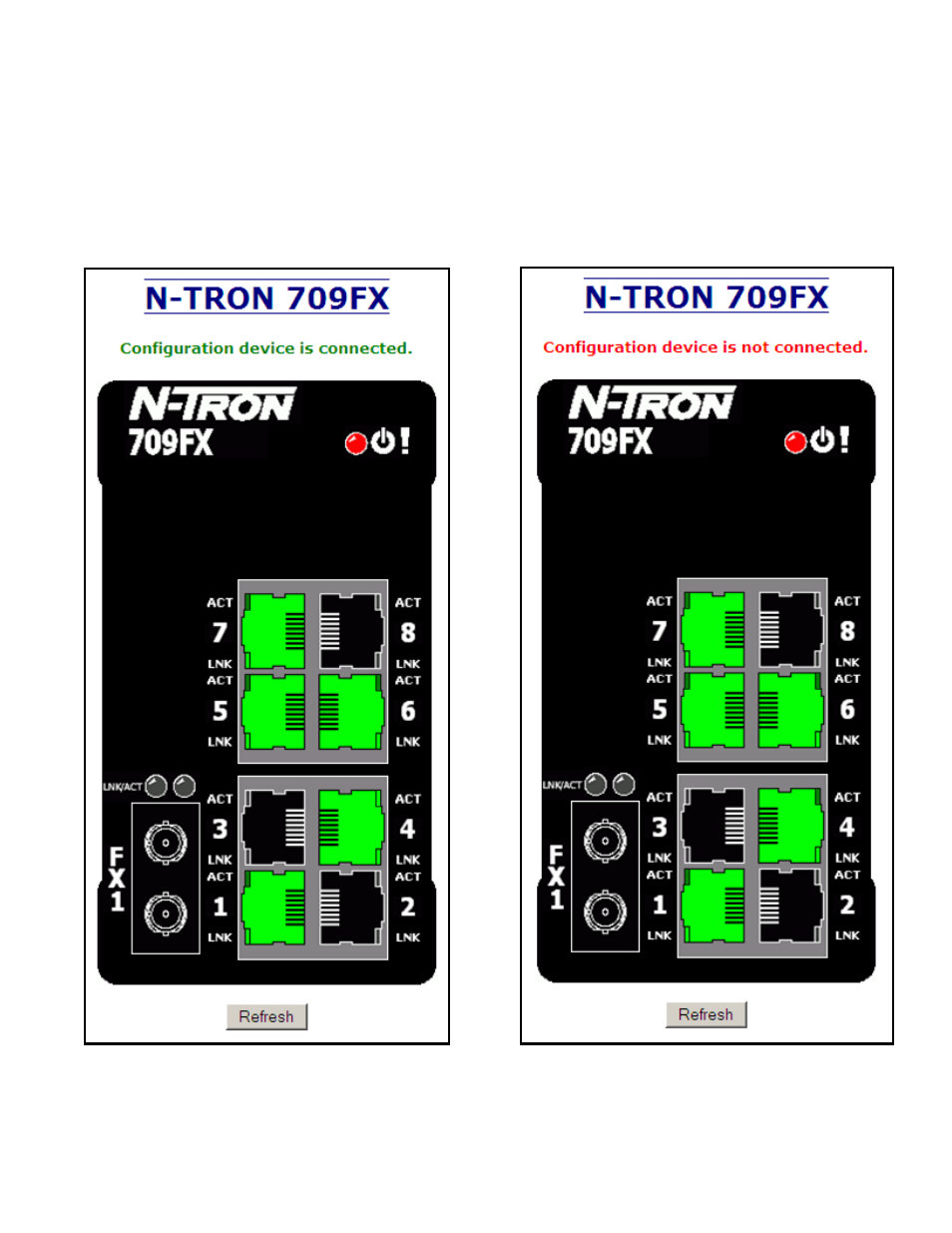

The 709FX Web Management offers a logical view of the switch. Here a user or administrator can see a
graphical depiction of the 709FX series switch. Ports that are linked will appear in green, while ports that
are not linked will appear in black. The example below shows a 709FX with ports 1, 4, 5, 6, and 7 linked.
The other ports are currently in the down state (not being used). Also, the logical view reveals whether the
configuration device (SD card) is installed or not.
