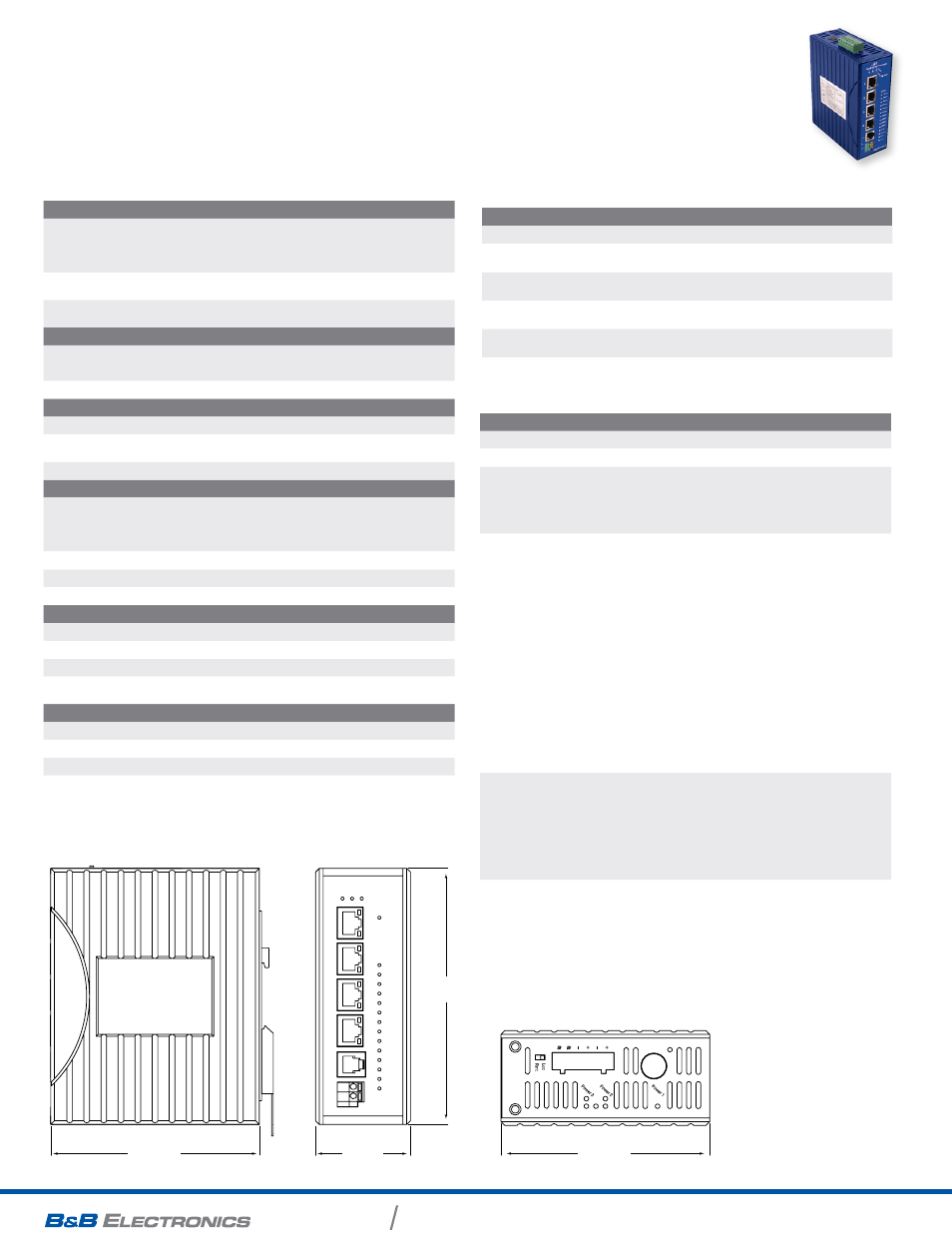

B&B Electronics EIR-EXTEND-4 - Datasheet - Manual (Page 2)

International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
[email protected]
[email protected]
4 Port Industrial ethernet
switch and extender
EIR-EXTEND-4
sPecIFIcAtIons
technology
Standards
802.3 10BaseT
802.3u 100BaseTx
802.3x
Ethernet over VDSL
Protocol
Transparent to higher level
Protocols
Processing
Half-duplex: backpressure
Full-duplex: 802.3x
Power
Input Voltage
48 VDC – Power Jack
24 - 48 VDC Terminal Block
Power Consumption 8.4 W Max., 0.18A@48VDC
Mechanical
Case DIN Mount IP30 Aluminum
Dimensions
50mm (W) x 110mm (D) x 135mm (H)
(1.97” (W) x 4.33” (D) x 5.31” (H))
Weight 0.8 kg (1.76 lbs)
ethernet interFace
Ports
4 - RJ-45, 10/100BaseTX
Full/Half Duplex
Auto-Negotiation
Auto-MDI/MDX
Speed 10/100 Mbps
Distance 320 ft. (100 m)
Cable CAT 5
extender interFace
Port One RJ-11 or Terminal Block
Speed Up to 50 Mbps
Distance Up to 6,232 ft. (1.9 km)
Cable
24 AWG Copper Pair (0.5mm diameter, 1 pair wire)
or larger, 100 Ohm Impedance
enVironMent
Operating Temperature -40 to 75° C (-40 to 167°F) Tested to 85° C
Storage Temperature -40 to 85° C
Operating Humidity 5% to 95% Non-condensing
regulatory aPProVals
ISO Manufactured in an ISO9001 facility
Safety UL508
EMI
FCC Part 15, Class A
EN61000-6-4
• EN55022
• EN61000-3-2
• EN61000-3-3
EMS
EN61000-6-2
• EN61000-4-2 (ESD Standards)
- Contact: + / - 4KV; Criteria B
- Air: + / - 8KV; Criteria B
• EN61000-4-3 (Radiated RFI Standards)
- 10V/m, 80 to 1000MHz; 80% AM Criteria A
• EN61000-4-4 (Burst Standards)
- Signal Ports: + / - 4KV; Criteria B
- D.C. Power Ports: + / - 4KV; Criteria B
• EN61000-4-5 (Surge Standards)
- Signal Ports: + / - 1KV; Line-to-Line; Criteria B
- D.C. Power Ports: + / - 0.5KV; Line-to-earth; Criteria B
• EN61000-4-6 (Induced RFI Standards)
- Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM Criteria A
- D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM
- Criteria A
• EN61000-4-8 (Magnetic Field Standards)
- 30A/m @ 50, 60Hz; Criteria A
Environmental
Test Compliance
• IEC60068-2-6 Fc (Vibration Resistance)
- 5g @ 10 - 150Hz, Amplitude 0.35mm
(Operation/Storage/Transport)
• IEC60068-2-27 Ea (Shock)
- 25g @ 11ms (Half-Sine Shock Pulse; Operation)
- 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
• IEC60068-2-32 Ed (Free Fall)
- 1M (3.281ft.)
leds chart
led speed distance
1 Green
1 Mbps 6,232m (1.9 km)
Amber 3 Mbps 5,904m (1.8 km)
2 Green
5 Mbps 5,249m (1.6 km)
Amber 10 Mbps 4,593m (1.4 km)
3 Green
15 Mbps 3,936m (1.2 km)
Amber 20 Mbps 3,280m (1.0 km)
4 Green
25 Mbps 2,624m (0.8 km)
Amber 30 Mbps 2,296m (0.7 km)
5 Green 40 Mbps 1,968m (0.6 km)
Amber 50 Mbps 984m (0.3 km)
Note: All speed selections are Symmetrical on DSL and Full-duplex on the Ethernet side.
Installation:
• DIN Rail (35mm) mount, Panel mount, or Rack mount with optional kit.
mechAnIcAl dIAgrAm
11.0 cm
4.33 in
EIRP-EXTEND-2 EIRP-EXTEND-4
5.00 cm
1.97 in
13.5 cm
5.31 in
11.0 cm
4.33 in
5.00 cm
1.97 in
13.5 cm
5.31 in
EIRP-EXTEND EIR-EXTEND-4
5.00 cm
1.97 in
13.5 cm
5.31 in
5.00 cm
1.97 in
13.5 cm
5.31 in
11.0 cm
4.33 in
EIRP-EXTEND-2 EIRP-EXTEND-4
5.00 cm
1.97 in
13.5 cm
5.31 in
11.0 cm
4.33 in
5.00 cm
1.97 in
13.5 cm
5.31 in
EIRP-EXTEND EIR-EXTEND-4
5.00 cm
1.97 in
13.5 cm
5.31 in
5.00 cm
1.97 in
13.5 cm
5.31 in
11.0 cm
4.33 in
EIRP-EXTEND-2 EIRP-EXTEND-4
5.00 cm
1.97 in
13.5 cm
5.31 in
11.0 cm
4.33 in
5.00 cm
1.97 in
13.5 cm
5.31 in
EIRP-EXTEND EIR-EXTEND-4
5.00 cm
1.97 in
13.5 cm
5.31 in
5.00 cm
1.97 in
13.5 cm
5.31 in
