4 Port Industrial ethernet
switch and extender
EIR-EXTEND-4

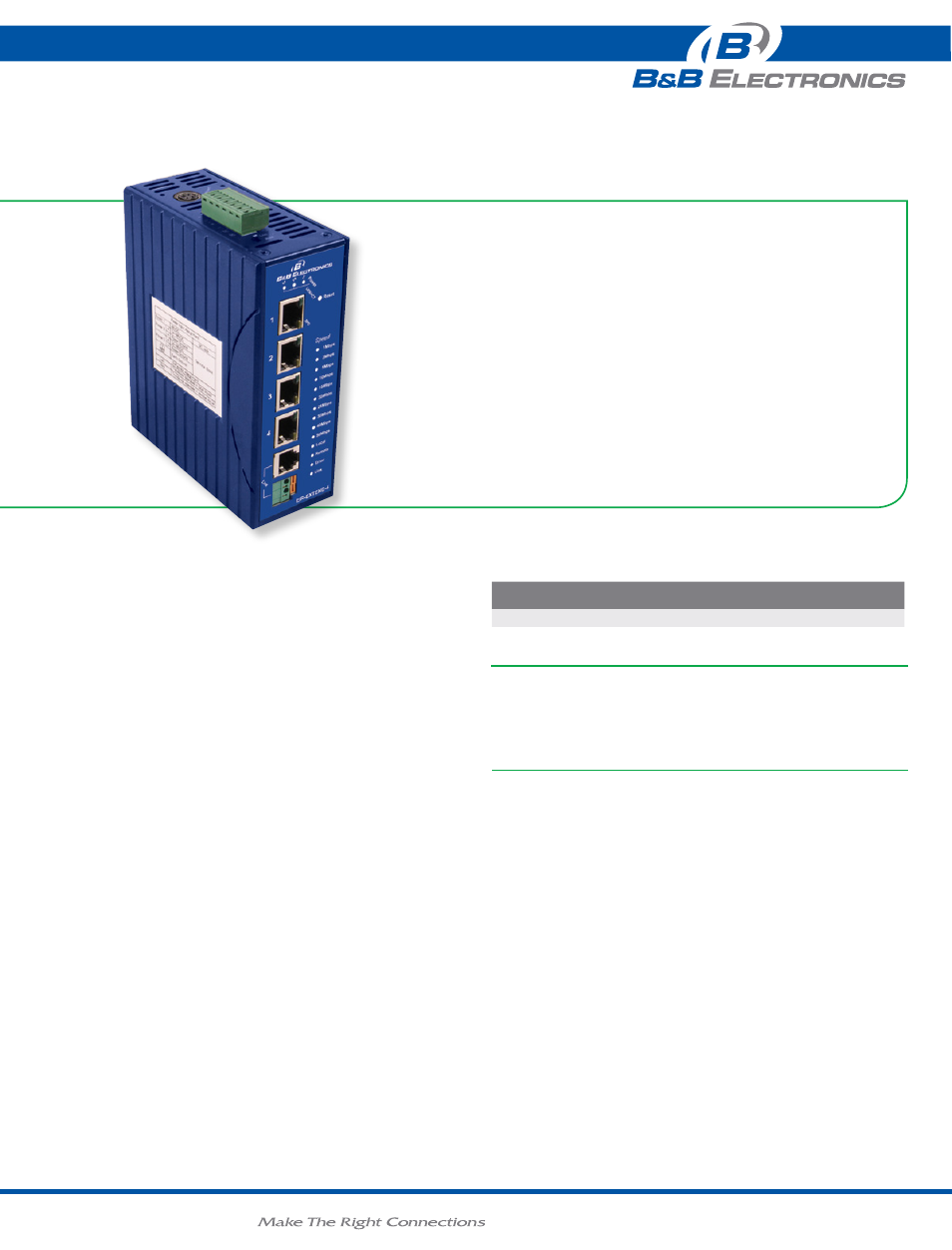

The EIR-EXTEND-4 is a 4 port Ethernet switch and point-to-point Ethernet
Extender designed to operate in harsh environments. Designed to operate
at temperatures from -40 to 75° C, it has been tested for functional
operation up to 85° C. Using existing copper wire runs, it allows the
extension of Ethernet signals. The EIR-EXTEND-4 is the perfect solution
for installing Ethernet connectivity on the factory floor. Used with a 2nd
extender the configuration is easy. Configure one unit as the local device,
and the other one as the remote device. External power supplies are
required (not included).
• Complies with UL508 and NEMA TS1 & TS2 Environmental
requirements for traffic control equipment
• Complies with IEC61000-6-2 EMC generic standard immunity for
heavy industrial environment
• Redundant power inputs
• Wide operating temperature
• Extend Ethernet up to 6232 ft. (1.9 km) over standard copper wires
• Ethernet ports: 4 RJ-45 10/100Mbps Full/Half-duplex, Auto-
negotiation / Auto-MDI/MDX
• Ethernet extend port: 1 RJ-11 and terminal block 50Mbps Full Duplex
VDSL
• Port compatible with EIS-EXTEND, EIR-EXTEND,
EIRM-EXTEND-x, EIRP-EXTEND
Product FeAtures
orderIng InFormAtIon
Model
nuMBer
ethernet
Ports
EIR-EXTEND-4 DIN Rail Mount Ethernet Extender and switch
AccessorIes
MDR-40-24 - DIN Rail Power supply 24VDC 40 Watt
PS12VDC3P - Hardened AC Power Supply, 12VDC, 36W, 3A, 90-264VAC input, DC jack
C5UMB3FBL - 3 ft. (1 M) - Blue - Category 5e UTP Patch Cord
EIR-EXTEND-4_3713ds
