Hanging the Industrial Switch

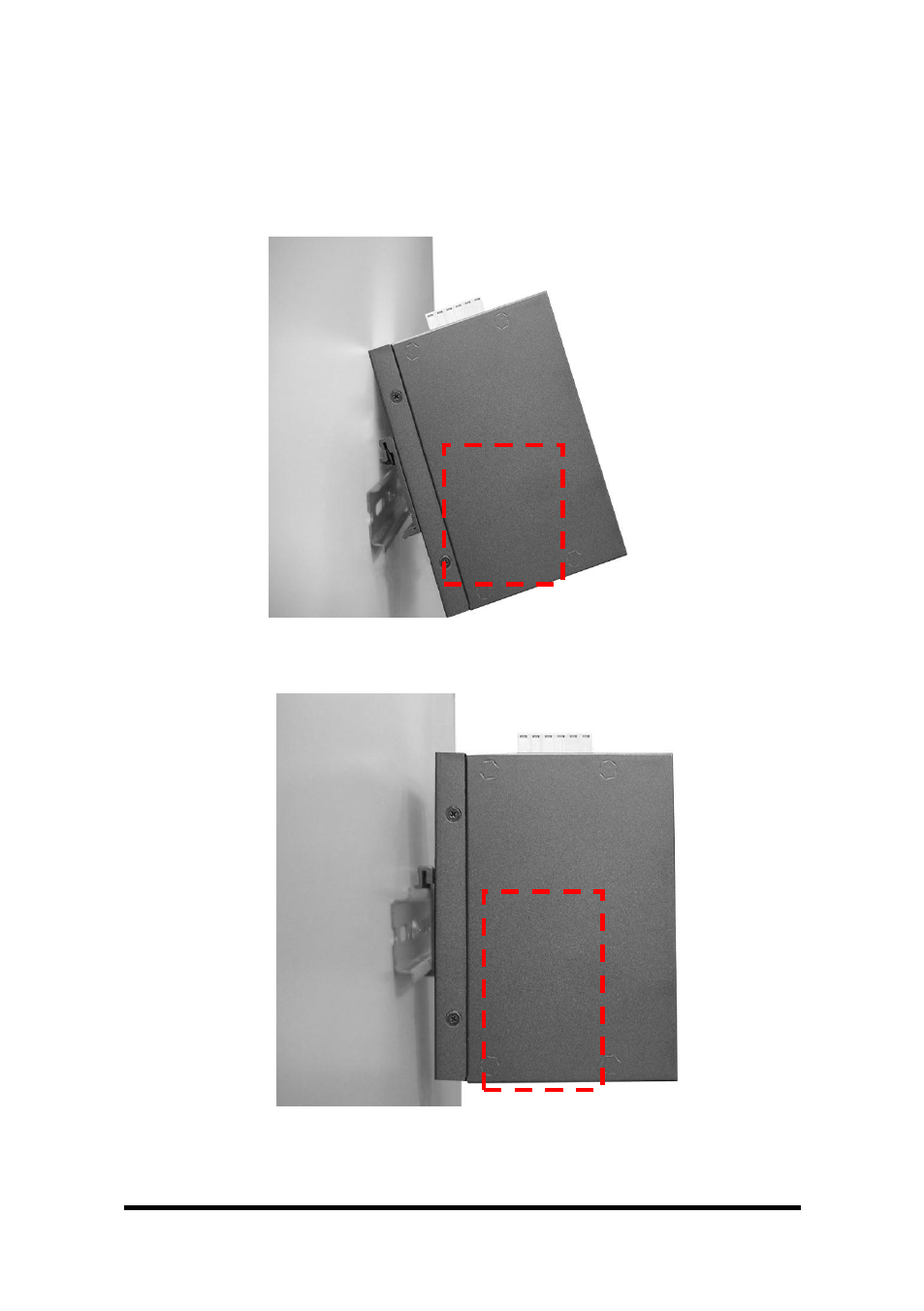

First, position the din-rail clip of the switch directly in front of the DIN rail.
Make sure the top of the clip hooks over the top of the DIN rail.
Push the unit downward.
Check the DIN-Rail clip is tightly fixed on the DIN rail.
To remove the industrial switch from the track, reverse the steps above.
