MeChaniCal
Enclosure Aluminum case
Dimensions:
80.3W x 109.2D x 23.8H mm
(3.16W x 4.30D x 0.94H in)
Weight: 150g (0.33lb)
Installation: chassis system
regulatory aPProvals
ISO: Manufactured in an ISO9001 facility
Safety: UL60950-1
Emission Compliance:
CE Mark Class A
FCC Part 15 Class A
VCCI Class A
spEcIFIcatIons
teChnology
Standards
IEEE802.3 10BASE-T
IEEE802.3u 100BASETX/100BASE-FX, IEEE802.3x
Processing Type
Store-and-Forward
Half-duplex back-pressure and IEEE802.3xfull-duplex
flow control
Forward and
Filtering Rate:
14,880pps for 10Mbps; 148,810pps for 100Mbps
Packet buffer memory: 128K bits
interFaCe
Ethernet Port
10/100BASE-TX: 1 port
100BASE-FX: 1 port
LED Indicators:
Per Unit: Power Status (Power)
Per port, 10/100T: Link/Activity, Full-duplex/Collision,
Speed
Per port, 100FX: Link/Activity, Full-duplex/Collision
Power
Input Voltage: 12VDC
Consumption 1.92W Max. 0.16A @ 12VDC
environMental
Operating Temperature: 0 to 45°C (32 to 113°F)
Storage Temperature: -10 to 70°C (14 to 158°F)
Ambient Relative
Humidity:
5 to 95% (non-condensing)
10/100 base-tx to 100base-Fx
media converters
EIS-x-Sx Series
109.2m
m
TX FDX/COL RX 100
LNK/ACT 100BASE-FX PWR
TX
10/100
DC12V
4.29 in
10.92 cm
0.94 in
2.38 cm
3.16 in
8.03 cm

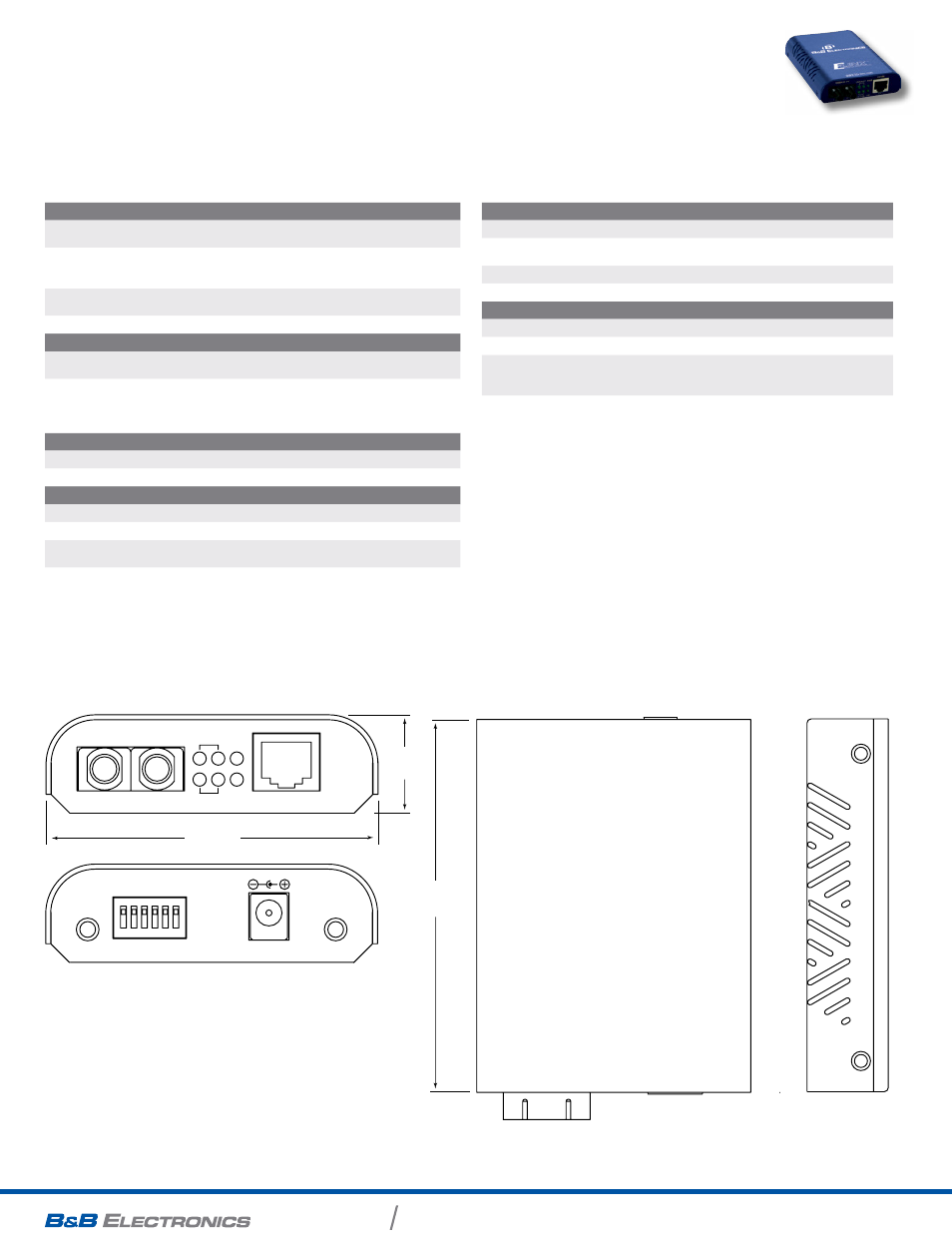

mEchanIcal dIagram
(dimensions in inches & millimeters)
