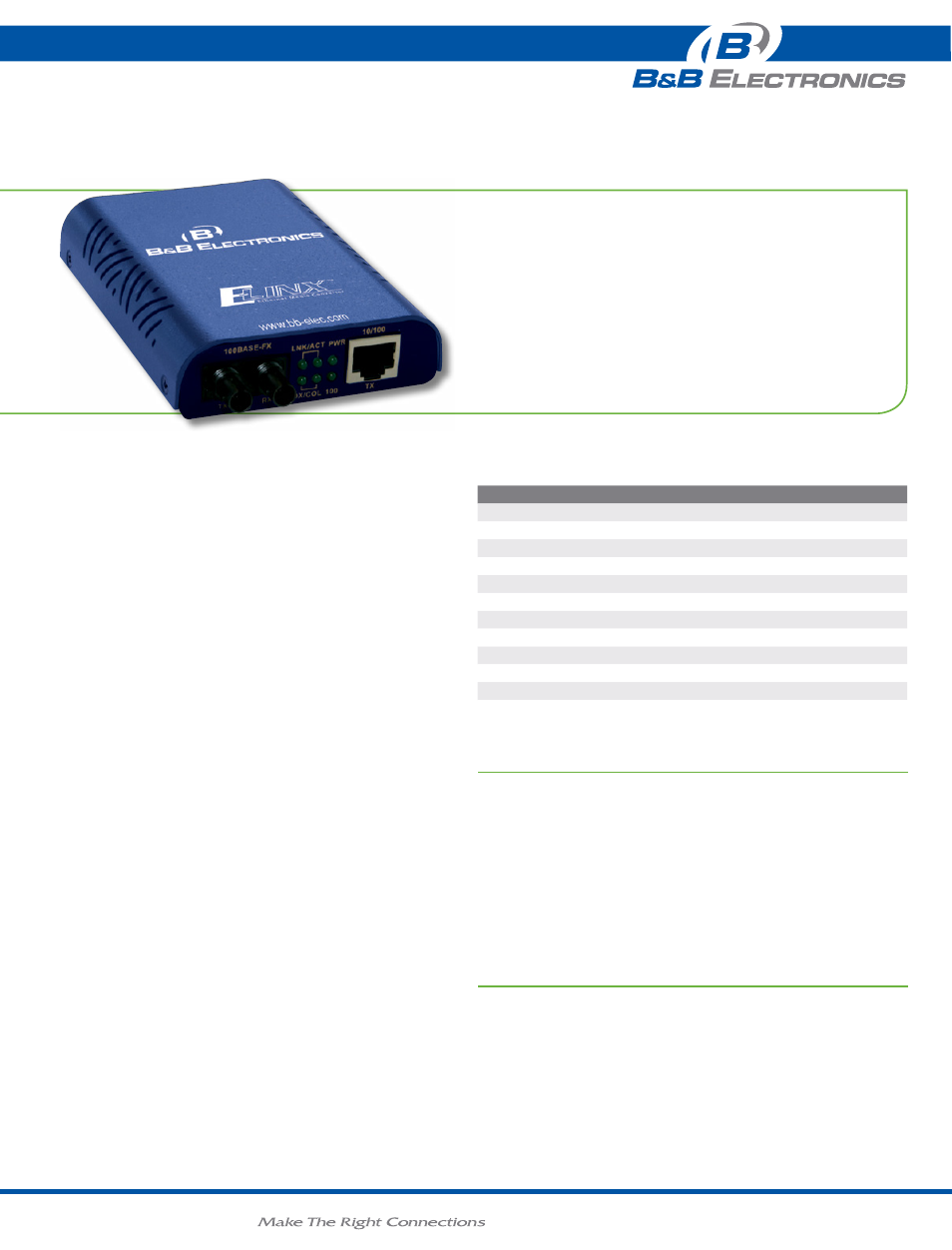

10/100 base-tx to 100base-Fx

media converters

EIS-x-Sx Series

10/100 base-tx to 100base-Fx

media converters

EIS-x-Sx Series

Media converters do more than just convert copper Ethernet signals
to fiber. They allow your LAN to be extended beyond the normal 100
meter limit. By using a pair of media converters, LANs can be extended
up to 2km with multimode fiber and up to 20km with single-mode fiber.
Since your data is traveling via fiber, it’s protected from ground loop
problems and electrical interference present along the cable run.

The economical EIS series media converters are stand-alone products
that come with a power supply or can be mounted in a 19 inch rack
chassis. The optional rack system holds up to 16 of the EIS products
and includes one power supply to power installed EIS models via the
backplane.

A second power supply for the rack system is available. Two power
supplies will provide a load-sharing service to add redundancy to
your system. If one power supply goes down, the other takes over
immediately.

• 128K bits buffer memory
• DIP switch configuration for "Link-Fault-Pass-Through", speed,
• duplex mode 10/100Mbps-Full/Half-duplex
• Auto-negotiation, Auto-MDI/MDIX
• Full wire-speed forwarding rate
• Ships with12VDC external power supply
• 0°C to +45°C (+32°F to +113°F) operating temperature
• Aluminum case
• Desk, wall mount or optional chassis installation

product FEaturEs

ordErIng InFormatIon

Model nuMBer

10/100 CoPPer

FiBer

distanCe

us Power supply
EIS-M-ST

1 (RJ-45)

Multi-mode (ST)

2 km

EIS-M-SC

1 (RJ-45)

Multi-mode (ST)

2 km

EIS-S-SC

1 (RJ-45)

Single-mode (SC)

20 km

european Power supply (-eu)
EIS-M-ST-EU

1 (RJ-45)

Multi-mode (ST)

2 km

EIS-M-SC-EU

1 (RJ-45)

Multi-mode (ST)

2 km

EIS-S-SC-EU

1 (RJ-45)

Single-mode (SC)

20 km

united kingdom Power supply (-uk) :
EIS-M-ST-UK

1 (RJ-45)

Multi-mode (ST)

2 km

EIS-M-SC-UK

1 (RJ-45)

Multi-mode (ST)

2 km

EIS-S-SC-UK

1 (RJ-45)

Single-mode (SC)

20 km

accEssorIEs

EIS-PS-US - EIS Series External Power Adapter 12V US Plug
EIS-RACK-16 - Media Converter 19 Inch 2U Rack Chassis - 16 Slots
EIS-RACK-PS - Power Supply For EIS-Rack-16, 84 Watts
C5UMB3FBG - 3 ft - Beige - Category 5e UTP Patch Cord Assemblies
EIS-PS-EU - EIS Series External Power Adapter 12V EU Plug
DRT-960-48 - Power Supply, DIN, Metal, 960W, 48V, 340-550Vac 3Phase Input
EIS-PS-UK - EIS Series External Power Adapter 12V UK Plug

EIS-x-Sx Series_3713ds
