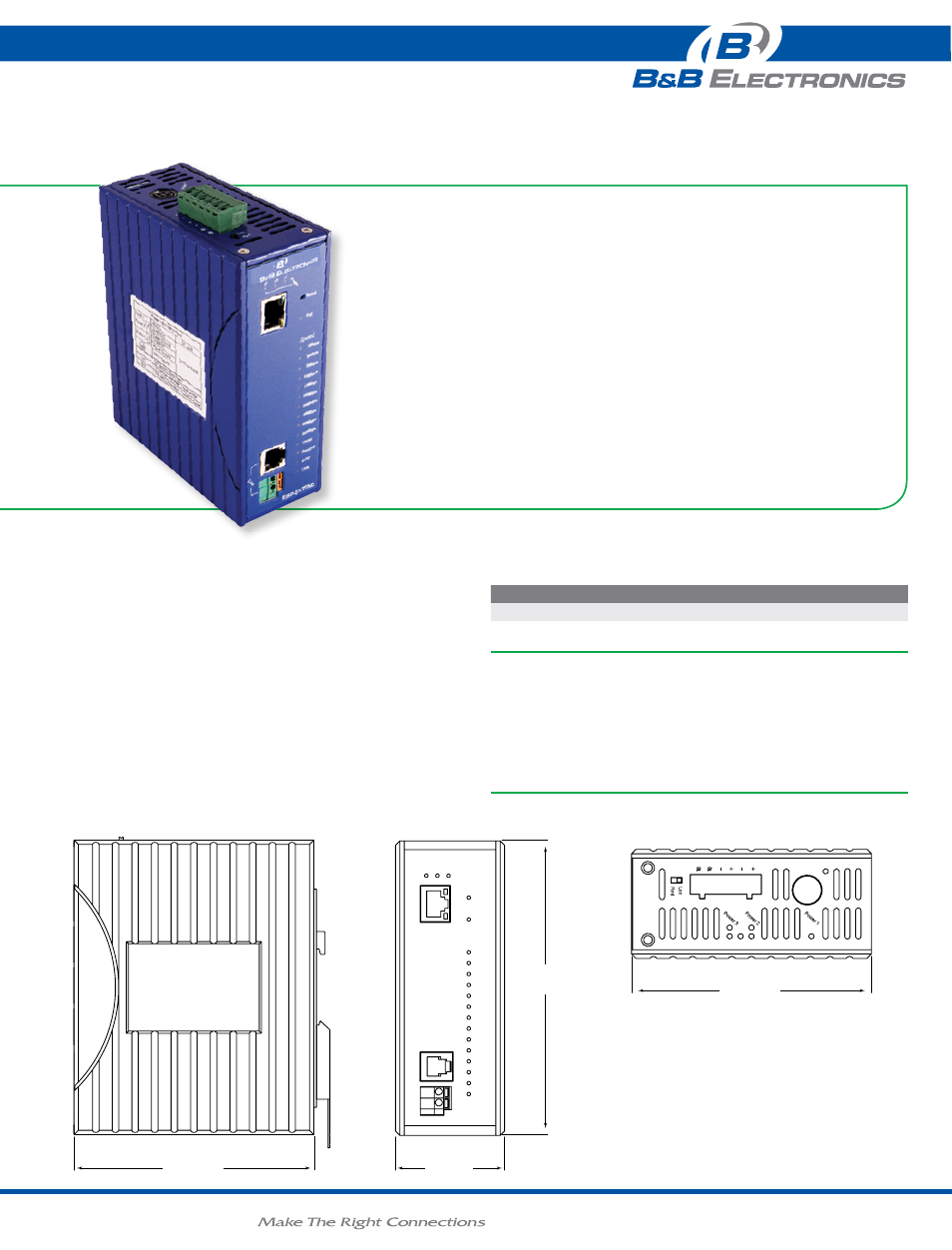

Industrial poe ethernet extender, Eirp-extend

background image

www

.

bb

-

elec

.

com

|

orderIng InFormAtIon

Model nuMBer descriPtion

EIRP-EXTEND

PoE Plus DIN Rail Mount Ethernet Extender

Industrial Poe ethernet extender

EIRP-EXTEND

Extending Ethernet to allow the PoE+ port to reach IP cameras, IP phones,
and Ethernet connected control devices is simple and reliable with B&B
Electronics’ Ethernet Extenders. The EIRP series extenders offer built-in
PoE+ technology which allows the end device, such as an IP camera, to
be powered directly from the extended Ethernet port. Used with a 2nd
extender the configuration is easy. Configure one unit as the local device,
and the other one as the remote device. External power supplies are
required (not included).

• IEEE802.3at 30W PoE + /PSE power for last mile applications
• Complies with UL508 and NEMA TS1 & TS2 environmental

requirements for traffic control equipment

• Complies with IEC61000-6-2 EMC generic standard immunity for

heavy industrial environment

• Redundant 24 or 48 VDC Power Inputs
• Wide operating temperature
• Extend Ethernet up to 6232 ft. (1.9 km) over standard copper wires
• Ethernet port: PoE Plus + RJ-45 10/100Mbps Full/Half-duplex,

Auto-negotiation / Auto-MDI/MDX

• Ethernet extend port: 1 RJ-11 and terminal block 50Mbps full

duplex VDSL

• Extender port compatible with models EIS-EXTEND, EIR-EXTEND-x,
EIRM-EXTEND-x

Product FeAtures

AccessorIes

PS12VDC3P - Hardened AC Power Supply, 12VDC, 36W, 3A, 90-264VAC input, DC jack
MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-48 - DIN rail mount power supply 48VDC, 0.83 A output power
C5UMB3FBG - 3 ft. (1 M) - Beige - Category 5e UTP Patch Cord

mechAnIcAl dIAgrAm

11.0 cm

4.33 in

EIRP-EXTEND-2

EIRP-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND

EIR-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

EIRP-EXTEND-2

EIRP-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND

EIR-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

EIRP-EXTEND-2

EIRP-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND

EIR-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND_3713ds
