Remote Monitoring Options - For ease of confi guration and monitoring,
the 7506GX2 offers web browser management and N-View OLE for process
control (OPC) server software. The N-TRON N-View software can be
combined with popular HMI software packages to add network traffi c
monitoring, trending, and alarming to any application using N-TRON
switches. In addition, SNMP is available for switch link and status
monitoring. The status LED can be confi gured to respond to power failure
on power input 1 or input 2, N-Link fault, port usage fault, N-Ring broken,
partial break high, partial break low, or if multiple ring managers are detected.
N-Ring Technology - N-TRON's 7506GX2

ring manager using N-TRON's

N-Ring technology offers expanded ring size capacity, detailed fault
diagnostics, and a standard healing time of ~30ms. The 7506GX2
ring manager periodically checks the health of the ring via
heart beat packets. If the ring manager stops receiving these health check
packets, it converts the ring to a linear topology within ~30ms. When
all switches in the ring are N-TRON fully managed switches, a detailed
ring map and fault location chart will also be provided on the ring
manager’s web browser and OPC server to identify the health status
of the ring. N-Link ™ allows the linking of two N-Rings. Up to 250
fully managed N-TRON switches can participate in N-Ring topologies.
LLDP - Link Layer Discovery Protocol is a vendor neutral discovery
protocol that allows switches and other LLDP capable devices on an
IEEE802 LAN to advertise their capabilities to, and discover information
from neighboring LAN members. Discovered information is stored in a MIB
accessible through SNMP management tools such as N-TRON's iSNMP.
DHCP - Dynamic Host Confi guration Protocol is a network application
protocol used by devices (DHCP clients) to obtain confi guration information
for operation in an Internet Protocol network. DHCP can make it easy to
add new machines to the network. N-TRON supports DHCP Server, Client,
Option 61, and Option 82. The 7506GX2 also supports Local Port IP Addressing.
This allows an IP address to be assigned to a specifi c port without using DHCP.
Industrial Packaging and Specifi cations - The 7506GX2 is designed
to operate in industrial environments. It is housed in a rugged extruded
aluminum DIN-Rail enclosure. It has extended industrial specifi cations and
features to meet or exceed the operating parameters of connected equipment.
These include extended temperature ratings, extended shock and vibration
specs, redundant power inputs, and high MTBF (greater than 2M hours).
Ease of Use - The 10/100/1000BaseT(X) ports are auto sensing and auto
configuring. Each copper port is automatically negotiated for
maximum speed and performance by default, but can also be hard
coded through the user interface. A high speed processor allows wire
speed capability on all 10/100/1000BaseT(X) ports simultaneously.

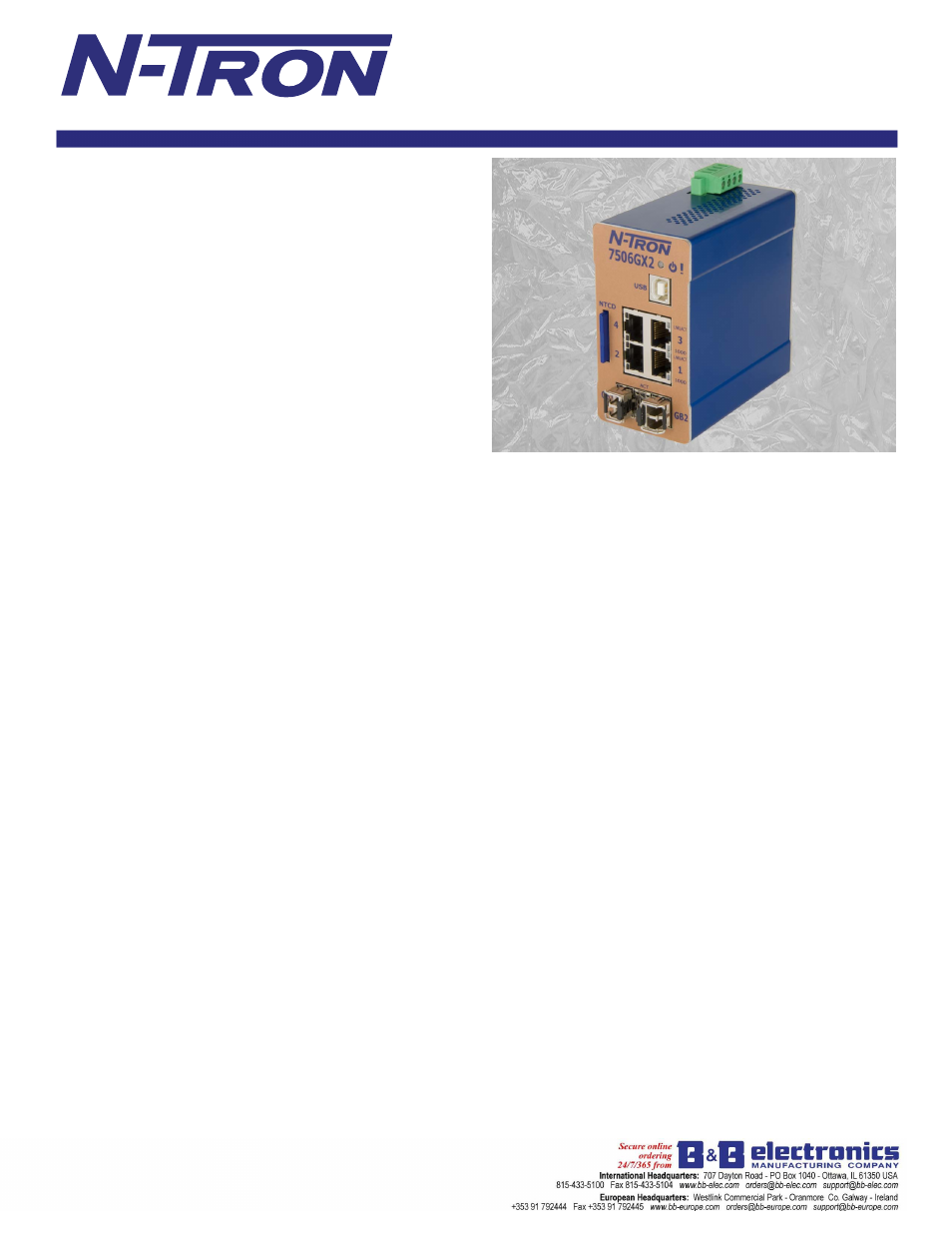

The N-TRON

®

7506GX2 Fully Managed Industrial Ethernet Switch

provides all gigabit performance in a compact form factor. The 7506GX2 is
ideally suited for use in high traffi c industrial applications such as security
and video surveillance where maximum throughput, a small footprint and
industrial ruggedness are required.

PRODUCT FEATURES

• Four 10/100/1000BaseT(X) RJ-45 Ports

• Two SFP (Mini-GBIC) Gigabit Transceivers (Optional)

• 1000BaseSX/LX Fiber with LC style connectors or

• 1000BaseT Copper with RJ-45 connectors

-40

o

to 80

o

C

Operating temperature

• ESD and Surge Protection Diodes on all Ports

• Auto Sensing 10/100/1000BaseT(X), Duplex, and MDIX

Store-and-forward

Technology

• Rugged DIN-Rail Enclosure

Onboard

Temperature

Sensor

• Redundant Power Inputs (10-49VDC)

Confi gurable Bi-Color Fault Status LED

Fully Managed Features:

• SNMP v1, v2, v3 and Web Browser Management

Confi guration backup via Optional SD card (NTCD)

• Jumbo Frame Support (9720 Bytes)

• EtherNet/IP™ CIP Messaging

• Detailed Ring Map and Fault Location Charting

N-Ring

Technology with ~30ms Healing

N-View

OPC Monitoring

N-Link

Redundant N-Ring Coupling

IGMP

Auto

Confi guration

• 802.1Q tag VLAN and Port VLAN

• 802.1p QoS and Port QoS, and DSCP

• LLDP (Link Layer Discovery Protocol)

Port

Trunking

Port

Mirroring

• 802.1d, 802.1w, 802.1D RSTP

• DHCP Server, Option 82 relay, Option 61

• Local Port IP Addressing

Management Features

The 7506GX2 offers several management functions that can be easily
confi gured using a web browser.
Automatic IGMP Snooping - Internet Group Management Protocol is
a feature that allows the 7506GX2

switch to forward and fi lter multicast

traffi c intelligently.
VLAN - Virtual Local Area Network allows you to segment the switch
in order to create two or more separate local area network domains.
QoS - Quality of Service provides prioritization of network traffic
in order to provide better network service. The primary goal of QoS
is to improve the latency of prioritized Ethernet packets required for
ring management, real-time video, and other interactive applications.
Port Trunking - Trunking (link aggregation) enables multiple
physical ports to be linked together and function as one uplink to
another N-TRON

trunking capable switch configured in the same

manner, thereby increasing the bandwidth between switches. This
configuration can provide increased bandwidth and redundancy
to applications requiring high levels of fault tolerant operation.
Port Mirroring - This function allows the traffi c on one port to be duplicated
and sent to a designated mirror port. Port mirroring can be used to monitor
Ethernet traffi c on the designated source port using the assigned mirror port.
Rapid Spanning Tree Protocol - RSTP allows the switch to be
configured in a ring or mesh topology, and provides support for
redundant path communications with high speed (rapid) healing.

THE INDUSTRIAL NETWORK COMPANY

7506GX2
