27 ADAM-4572 & EKI-122X Series User Manual

Chapter 2

G

etting

Started

DIN-rail Mounting

The ADAM-4572, EKI-122X series can be mounted on a standard DIN-rail. The DIN-
rail kit is screwed on the Modbus data gateway when out of factory. If the DIN-rail kit
is not screwed on the ADAM-4572, EKI-122X series, please screw the DIN-rail kit on
the Modbus data gateway first.

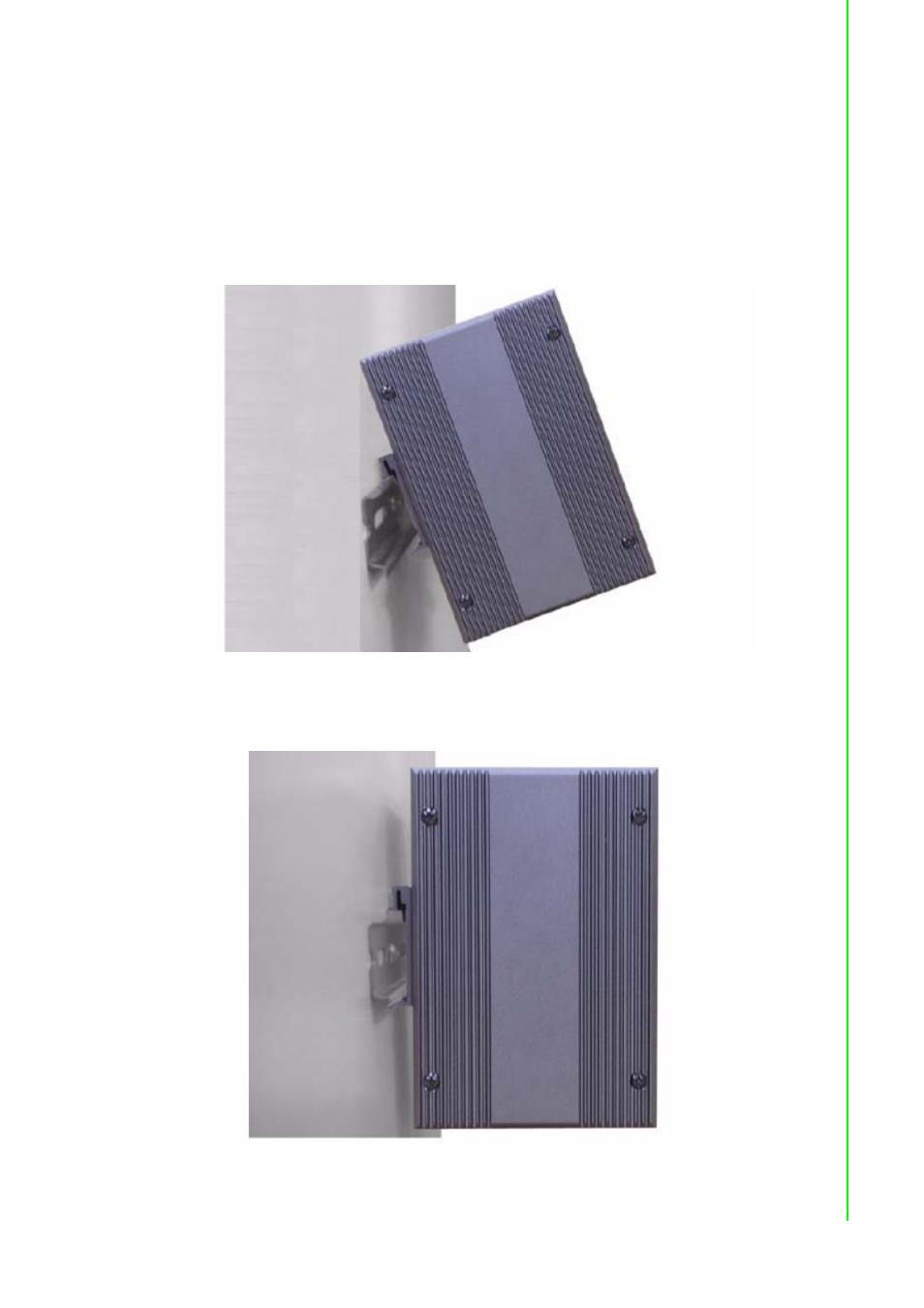

First, hang the Modbus Gateways to the DIN-rail with angle of inclination. See below
figure.

Figure 2.30 DIN-rail Step 1

Then, let the Modbus Gateways down straight to slide over the rail smoothly.

Figure 2.31 DIN-rail Step 2
