ultra compact
Ethernet serial servers
VESR900 Series - Copper Models
sPEcIFIcatIons
serial teChnology
RS-232 TD, RD, RTS, CTS, DTR, DSR, DTD, GND
RS-485 2-Wire Data A(-), Data B(+), GND
RS-422/485 4-Wire TDA(-), TDB(+), RDA(-), RDB(+), GND
Serial Connector DB9M or Removable Terminal Blocks
Data Rate Up to 230.4 Kbps
Power
Source External
Input Voltage 10 to 48 VDC (58 VDC Maximum)
Connector Removable Terminal Block (12 – 28 AWG)
Power Consumption
VESR90x: 4.0 Watts Max.
VESR92x: 6.0 Watts Max.
MeChaniCal
LED Indicators Serial Port, Ethernet Link, Ready
Switches Reset Button
Dimensions
VESR90x: 11.94 x 8.03 x 2.96 cm (4.70 x 3.16 x 1.16
in)
VESR92x: 14.86 x 10.11 x 2.96 cm (5.85 x 3.98 x
1.16 in)
Enclosure 35mm DIN mount, Plastic, IP 30
Weight
VESR90x: 149.7 g (0.33 lbs)
VESR92x: 204.1 g (0.45 lbs)
enVironMental
Operating Temperature -40 to 80°C (-40 to 176°F)
Operating Humidity 10 to 95% Non-condensing
MTBF
VESR90x: ~ 132309 hours
VESR92x: ~ 102593 hours
MTBF Calc Method Parts Count Reliability Prediction
network
Serial Memory 8 KB per port
Network Memory 4 KB
network CoMMuniCations
LAN 10/100 Mbps Auto-detecting , 10BaseT or 100BaseTX
network PhysiCal layer standards
Ethernet
IEEE 802.3 auto detecting & auto MDI/MDX,
10BaseT and 100Base TX
ProtoCols
Protocols
TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING,
DHCP/BOOTP
IP Mode Static, DHCP
TCP/UDP User definable
other
Connection Mode Server, Client, VCOM, Paired
Client Connection At power up or upon data arrival
Search
Serial direct COM and Ethernet Auto Search or
specific IP
Diagnostics
Display PC IP, ping, test VCOM, save test config
(text readable)
Firmware Upgrade Vlinx Manager
ethernet Pass-through Port (Vesr92x)
Standards IEEE 802.3, 802.3u, 802.3x
Processing Type
Store and Forward with 802.3x full duplex, non
blocking flow control
Flow Control
IEEE 802.3x flow control, back pressure flow
control
MAC Address Table 2K
ConFiguration soFtware
Vlinx Manager
Windows 2000, XP (32/64 bit), 2003 Server
(32/64 bit), Vista (32/64 bit), 2008 Server (32/64
bit), Win 7 (32/64 bit)
regulatory / CertiFiCations / saFety
Compliance FCC, CE, NEMA TS2 (VESR901)
UL Listed, File E222870
UL Class 1 Division 2 Groups A, B, C, D
(HAZLOC) File E245458

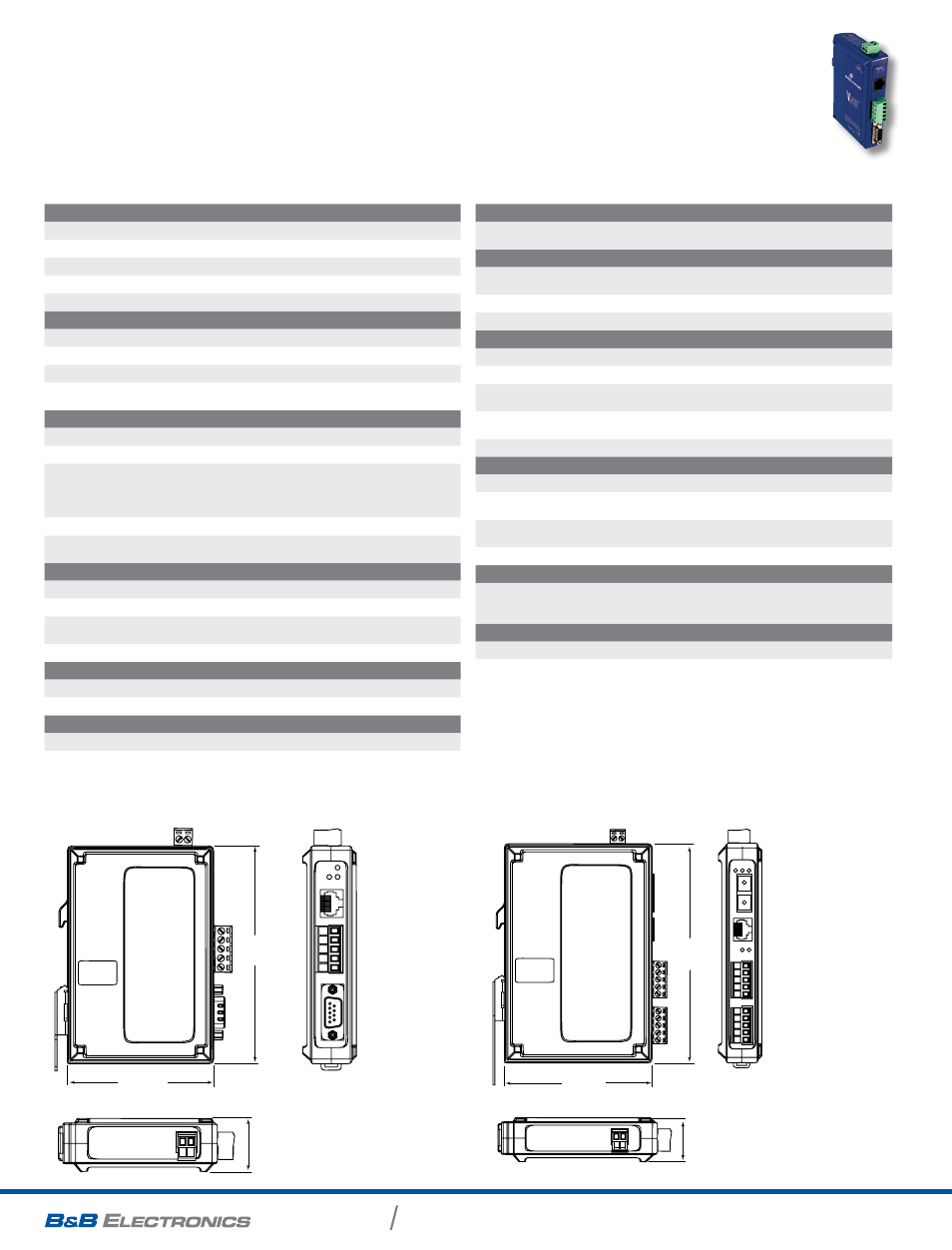

mEchanIcal dIagram - mEchanIcal dIagram -
vEsr90x modEls vEsr92x modEls
11.938 cm
4.700 in
Ready
P1 Link
14.86 cm
5.85 in
2.957 cm
1.164 in
10.11 cm
3.98 in
2.95 cm
1.16 in
8.026 cm
3.160 in
11.938 cm
4.700 in
Ready
P1 Link
14.86 cm
5.85 in
2.957 cm
1.164 in
10.11 cm
3.98 in
2.95 cm
1.16 in
8.026 cm
3.160 in
