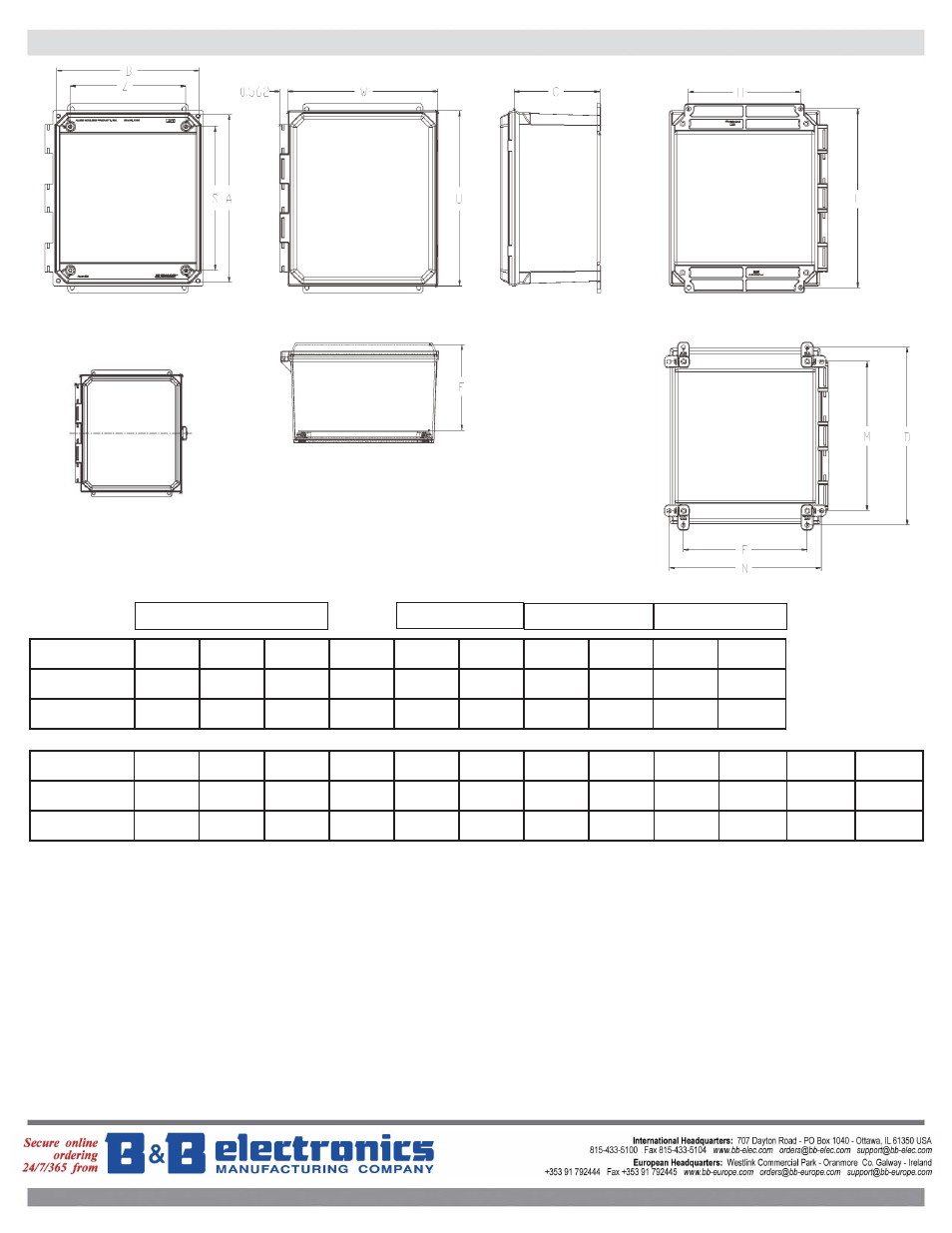

Flange Mount A B C F W U S Z H L
AMU1084F 10.05 8.27 4.13 4.11 8.72 10.50 8.25 6.25 6.00 10.75
255 mm 210 mm 105 mm 104 mm 221 mm 267 mm 210 mm 159 mm 152 mm 273 mm
Foot Mount A B C F W U S Z D E M N
AMU1084 10.05 8.27 4.13 4.11 8.72 10.50 8.25 6.25 10.75 6.91 8.69 8.97
255 mm 210 mm 105 mm 104 mm 221 mm 267 mm 210 mm 159 mm 273 mm 176 mm 221 mm 228 mm
Enclosure Size Cover Panel Boss Mounting
AMU1084, NEMA Type 4X, Fiberglass Reinforced Enclosure
Flange Mount
Foot Mount
A C C E S S O R I E S A C C E S S O R I E S
• Enclosure back panels
- P108 white painted carbon steel
- PA108 aluminum
- PF108 fiberglass reinforced non-metallic
• Enclosure hinged dead front panel
- HFPU108 aluminum (field installable kit)
Latch Location
On Vertical C/L
Optional Viewing Window Dimension (Centered in Cover): 4.255 in (108 mm) x 6.255 in (159 mm)
Nominal Wall Thickness - 0.125
