protocol-Independent wavelength
division multiplexing for high volume
optical networking applications
IE-iMcV-WDM/2 Series
SpecificationS
Technical
Doubles the capacity of installed fiber by transmitting two wavelengths on one
strand of fiber
Speed-independent
Protocol-independent; complies with a wide range of communications protocols
including Ethernet (10/100/1000 Mbps), SONET/SDH (OC-3, OC-12 OC-48), FDDI,
ATM, ESCON, T1/E1, E3, DS3 and FibreChannel
Supports GUI-Based iView²
Connectors: SC
Supports Half- and Full-Duplex operation
iMcv-wdM/2
Requires two slots in a chassis; modules are double-wide
Installs in any iMediaChassis or MediaChassis/2
wdM/2 sTandalone chassis
iMcV-WDM/2 module ships from factory in a standalone chassis
Mechanical
Shipping Weight iMcV-WDM/2 0.9 lbs (0.34 kg)
Shipping Weight WDM/2 Chassis 1.1 lbs. (0.50 kg)
environMental
Operating Temperature +32° to +122° F (0° to +50° C)
Storage Temperature: -13° to +158°F (-25° to +70°C)
Operating Humidity 5% to 95% (non-condensing)
regulatory approvals
FCC Class A
UL/cUL, CSA, CE
(dimensions in inches)

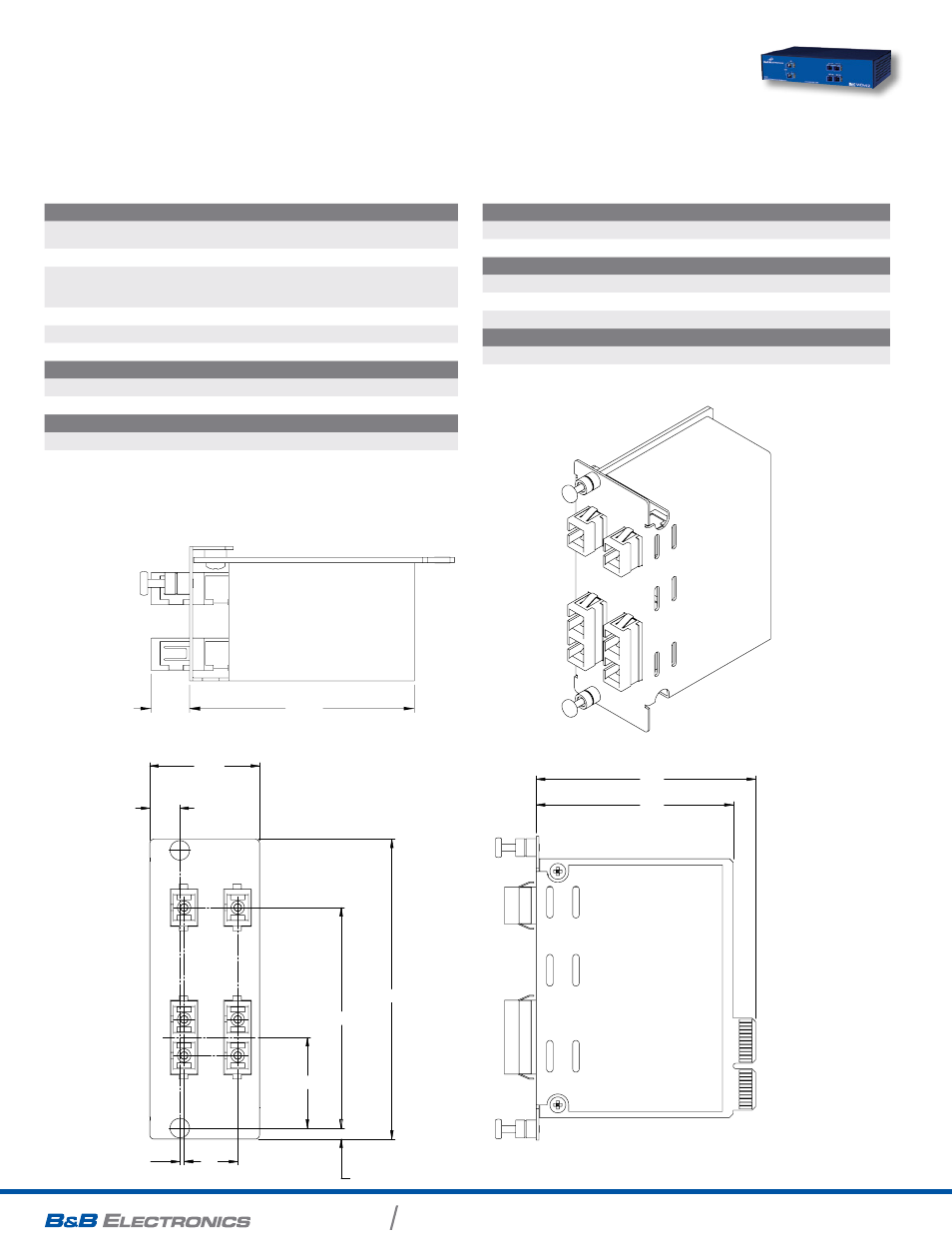

mEchanIcal dIagram
2.570
.44
2X
4.192
.154
1.535
.420
.06 .75
1.266
3.083
3.03
2.72
