protocol-Independent wavelength division

multiplexing for high volume optical

networking applications

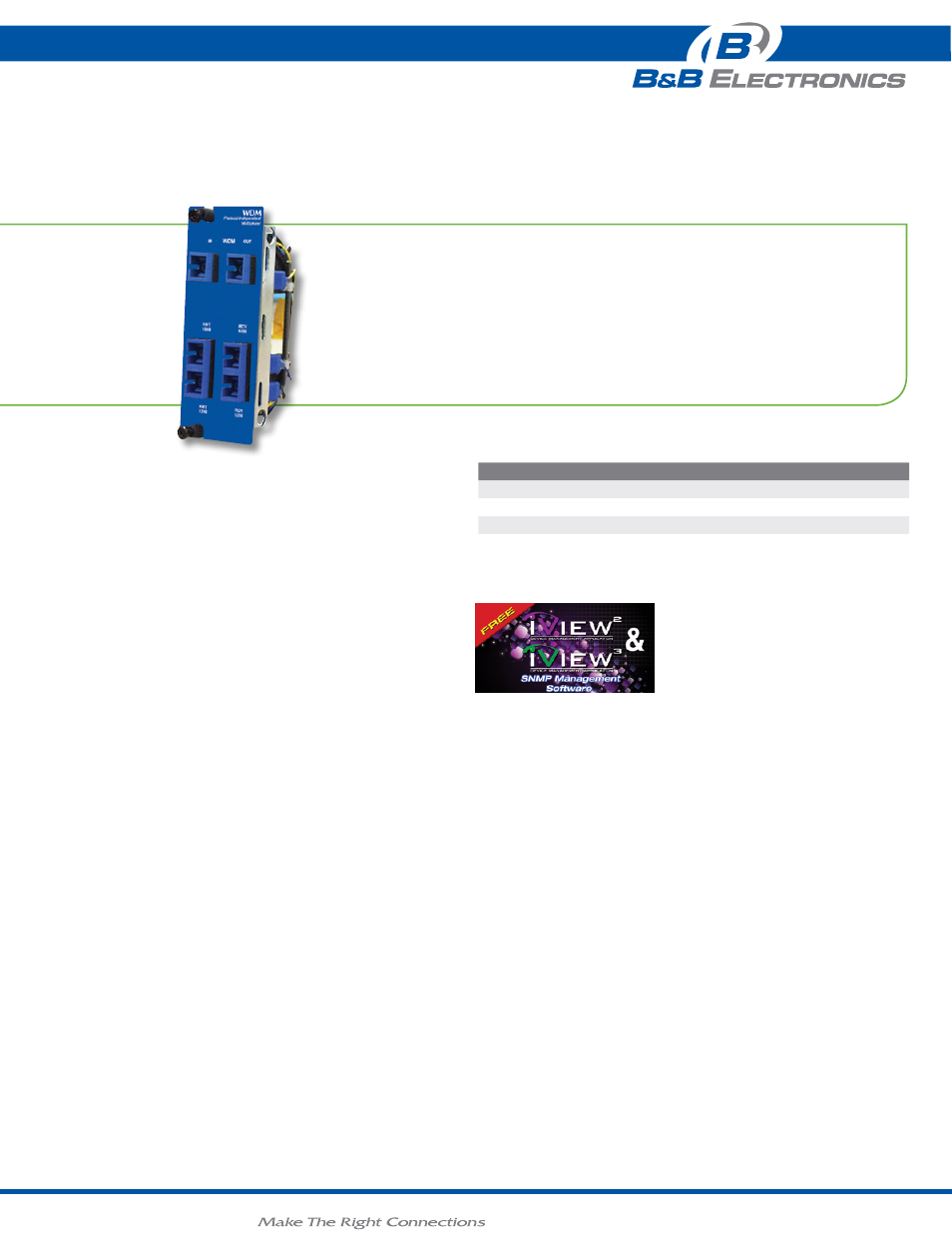

IE-iMcV-WDM/2 Series

Wavelength Division Multiplexing (WDM) is a technology that enables
the transmitting of multiple, optical signals on different wavelengths
over one strand of fiber. Suited for installations where fiber is limited
in terms of availability, service providers and enterprise network
managers can easily double their fiber capacity without incurring
the costs associated with installing new fiber. Campus area network
managers can deploy the WDM/2 solution, for example, to combine
voice and data traffic over the same duplex fiber between company
facilities.

WDM/2 and iMcV-WDM/2 are two-channel, passive, protocol and
speed-independent Wavelength Division Multiplexers which allow two
individual wavelengths to share one fiber pair; Full-Duplex data travels
on 1310 nm and 1550 nm to virtually double the capacity of installed
fiber. Deploy WDM/2 products in pairs so that the host site will
multiplex 1310 nm and 1550 nm onto the fiber and the remote site will
then separate the signals by the wavelength. Available in standalone
and modular versions, the protocol-independent WDM/2 products
enable the transmitting of any protocol and any speed over 1310 nm or
1550 nm single-mode fiber.

support a variety of protocols; easy installation

As passive, protocol-independent Wavelength Division Multiplexers,
WDM/2 and iMcV-WDM/2 comply with a wide range of communications
protocols including Ethernet (10/100/ 1000 Mbps), SONET/SDH (OC-3,
OC-12 OC-48), FDDI, ATM, ESCON, T1/E1, E3, DS3, FibreChannel,
and 10G. Installing WDM/2 products is easy— standalone WDM/2
chassis come ready to install and iMcV-WDM/2 modules slide into any
iMediaChassis or MediaChassis/2. There is no configuration required
for either version.

product FEaturEs

ordErIng InFormatIon

Model nuMBer

FiBer

FiBer Ports

iMcv-wdM/2
849-14100

SC

4

wdM/2 stand alone Chassis
849-10100

SC

4

• WDM/2 and iMcV-WDM/2 double the capacity of installed fiber by

transmitting two wavelengths on one strand of fiber

• WDM/2 and iMcV-WDM/2 are speed and protocol-independent, and

support 1310 nm and 1550 nm single-mode fiber

• WDM/2 chassis performs multiplexing with NO outside power requirement
• Modular, hot-swappable architecture reduces operational costs

associated with product installation, upgrades and maintenance

iView: Windows 2000/XP/Vista/Win7

IE-iMcV-WDM/2 Series_3713ds
